BDS 1-2" LEVELING KIT,NX2 SERIES SHOCKS,17-26 F-250/F-350 SUPER DUTY

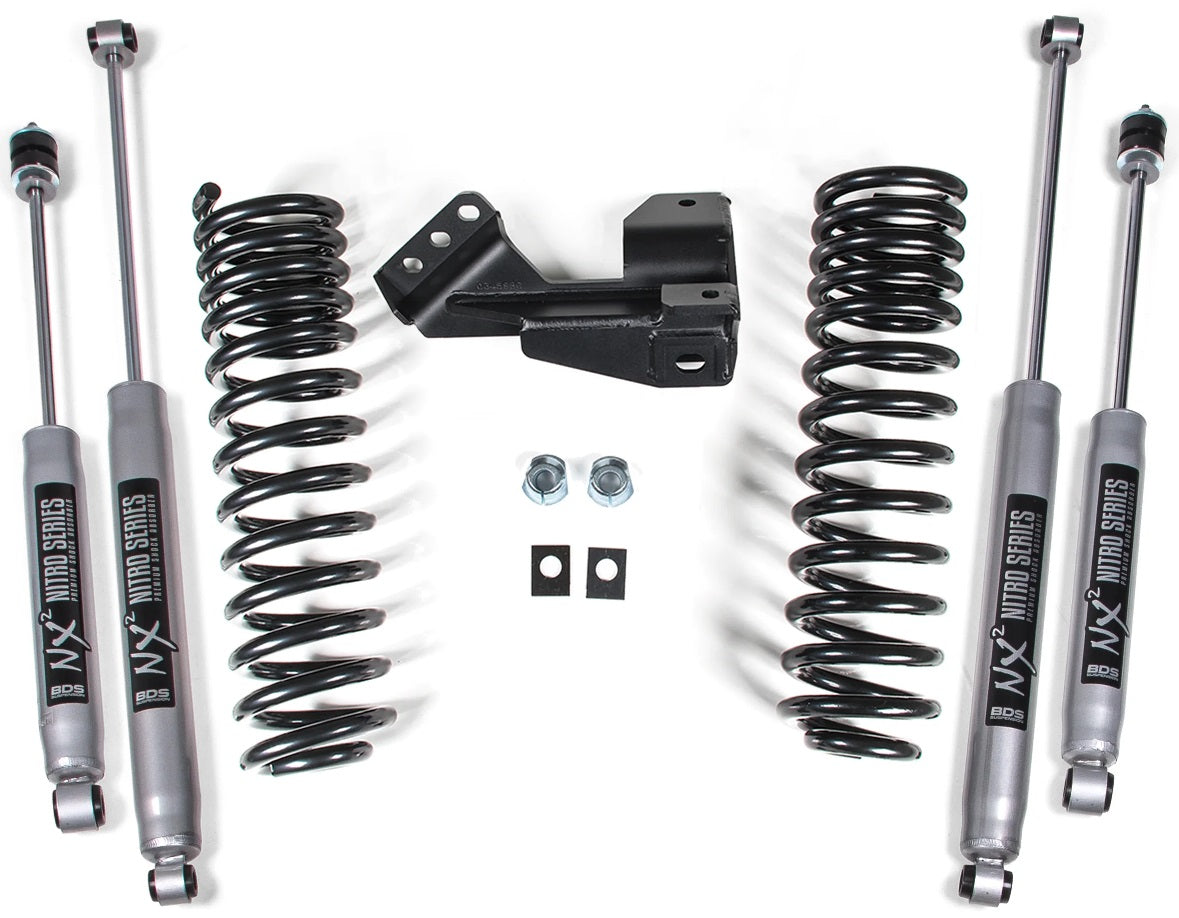

Brand New BDS Suspension 1-2" Leveling Kit with NX2 Nitro Series Shocks (Part #BDS1910H).

Simply level out your Ford F250 and F350 Super Duty truck with this performance spring 2-inch leveling kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front, the kit includes dual rate Pro-Ride coil springs, track bar relocation bracket for steering correction, and alignment cams. With monotube IFP shocks, you'll be able to further dial in the comfort and control of your F250/F350.

Compatible with:

• Ford:
  • 2017-2019 F-250 Super Duty (Nets 1" Lift)
  • 2020-2026 F-250 Super Duty (Nets 2" Lift)
  • 2017-2019 F-350 Super Duty (Nets 1" Lift)
  • 2020-2026 F-350 Super Duty (Nets 2" Lift)

Notes:

• 2017-2019 models net 1" of lift height; requires an additional 1" coil spring spacer to sit level.

• 2020+ models net 2".

• Kit designed for diesel models; Gas models will achieve approx. 1/2" more ride height.

• Vehicles with radius arm mounted ride height sensors will require BDS123303.

• 2023+ Models: Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation. Please connect with your local dealership or ADAS service center.
• 2024+ Ford Super Duty Only: This kit includes ball joint cams to achieve optimum performance both on and off-road. For vehicles equipped with non-selectable passenger side hub-lock on the front axle along with these ball joint cams, it is required to replace the non-selectable with a selectable hub-lock. Part number (PC3Z-3B396-A) is needed to prevent a grinding noise from the front axle for these applications. If your vehicle is not factory equipped with them, you may also need vacuum lines (3C125-A and/or 3C124). See installation instructions for additional Information.

• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

• Pro-Ride dual rate coil springs ride smooth through any terrain
• Heavy duty track bar relocation bracket designed to re-center the front axle

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Coil Springs
• Front Lift Height: 2"
• Rear Lift Method: Stock
• Rear Lift Height: 0"

You can view and download the instruction booklet here.
