BDS 2015-2020 FORD F150 4WD,4" LIFT,3" BLOCK,FOX 2.0 SHOCKS

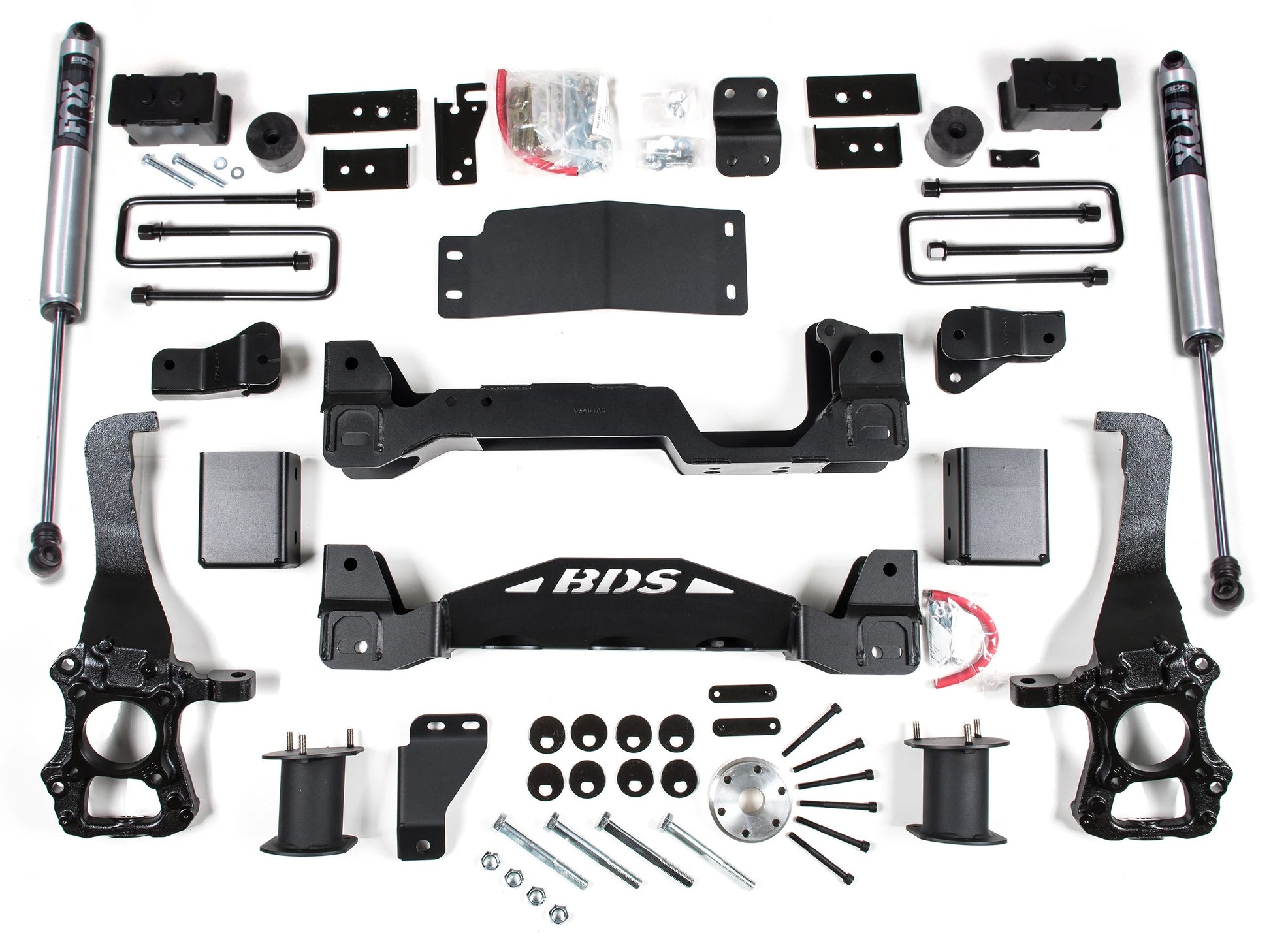

Brand New BDS Suspension 4" Lift Kit with Fox 2.0 Performance Shocks, & 3" Block Kit (Part #BDS1908FS).

BDS steps up the performance and capability of the 2015-2020 Ford F150 4WD trucks with 4-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skid plate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear BDS utilizes high strength fabricated lift blocks, longer u-bolts, and shocks.

Fits:

• Ford:
  • 2015-2020 F-150 4WD

• 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.

• 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.

• E-brake bracket required for factory power steps (123018)

• Block kits replace factory 1-1/4" block.

• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406

• Will not fit HD models (7 lug).
• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 5.5 in. Backspace or 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

You can view and download the assembly instruction booklet here.
