BDS 2021-2025 FORD BRONCO,3" LIFT KIT,UNIBALL CONTROL ARM,FOX 3.0 RACE COILOVERS

BDS 2021-2025 FORD BRONCO,3" LIFT KIT,UNIBALL CONTROL ARM,FOX 3.0 RACE COILOVERS

STU BDS1905FRS

$8,652.85
$8,652.85
View full details

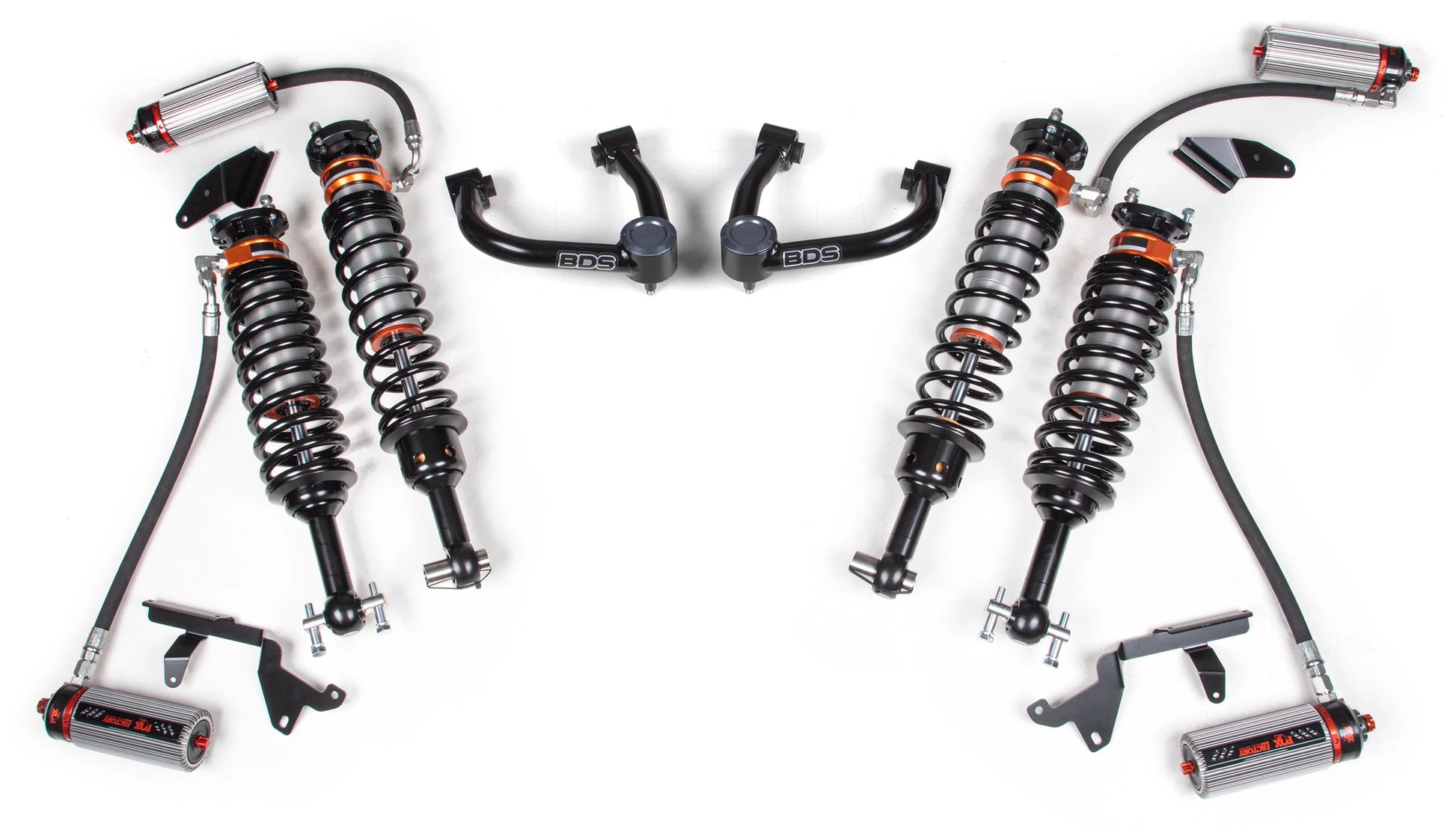

Brand New BDS Suspension 3" Lift Kit with Fox 3.0 Factory Race Coilovers & Upper Control Arms with Uniballs (Part #BDS1905FRS).

Up the ante in your Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Factory Race Series 3.0 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes FOX Factory Race Series 3.0 coilover shocks and heavy duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 3.0 Factory Race Series coil-over shocks for an improved ride.

Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3" of lift, 4-Door Badlands: net 3.5" of lift, and 4-Door Broncos with the base suspension: net 4" of lift.

Fits:

  • Ford:
    • 2021-2026 Bronco

Notes:

  • Not compatible with Raptor Models.
  • Is compatible with HOSS 3.0 Bronco Models
  • Lift height is based on base suspension package, Badlands and Sasquatch models will net less lift however final ride height is the same for all trims.
  • Do NOT hit the aluminum knuckle with a hammer to separate the ball joint. Use appropriate ball joint separation tool (OTC 204592).
  • Does not fit Bronco Sport models.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5.5 in. Backspace, 37 x 12.5 with 18 x 9 and 5.5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

  • Performance UCAs increase strength and allow for more suspension travel
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation
  • 3.0" impact extruded and CNC machined 6061-T6 hard-anodized aluminum body
  • Patented, internal bypass design
  • Application-specific springs
  • 7/8" stainless steel shafts
  • Vehicle-specific tuning maximizes performance
  • Redundant sealing pack system: main seal, wiper seal, scraper seal
  • Finned reservoir, with DSC adjuster
  • Position- and velocity-sensitive damping maximize comfort and control through any terrain
  • Tune vehicle for load, environment, and driving style with DSC adjusters
  • Front coil-overs provide 4-4.5" lift with aftermarket upper control arms on base models and 2-2.5" lift on Sasquatch models

FOX Factory Race Series:

  • FOX 3.0 FRS shocks offer next level performance for on-road comfort and off-road comfort capability.
  • Tuned and ready to install right out of the box, these bolt-on 3-inch diameter shocks are built for abuse and packed with race-proven technology.
  • They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
  • The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

Uniballs:

  • These spherical bearings are designed for hardcore off-road and racing. Uniballs are stronger and more durable than ball joints, and depending on application, can handle greater wheel travel as well as have the option for double-shear mounting.
  • However, they are exposed and can get dirty, which can wear down the components and create noise. Uniballs also require more frequent maintenance.

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 3" (See Notes)
  • Rear Lift Method: Coilover
  • Rear Lift Height: 3" (See Notes)

You can view and download the assembly instruction booklet here, here, and here.
