BDS 2021-2026 FORD BRONCO,3" LIFT KIT,UNIBALL CONTROL ARM,FOX 2.5 COILOVERS

BDS 2021-2026 FORD BRONCO,3" LIFT KIT,UNIBALL CONTROL ARM,FOX 2.5 COILOVERS

STU BDS1905FPE

$6,252.85
$6,252.85
View full details

Brand New BDS Suspension 3" Lift Kit with Fox 2.5 Coilovers & Upper Control Arms with Uniballs (Part #BDS1905FPE).

Up the ante in your Ford Bronco 4 Door with style and performance by installing this 3 to 4-inch lift kit featuring FOX Performance Elite 2.5 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

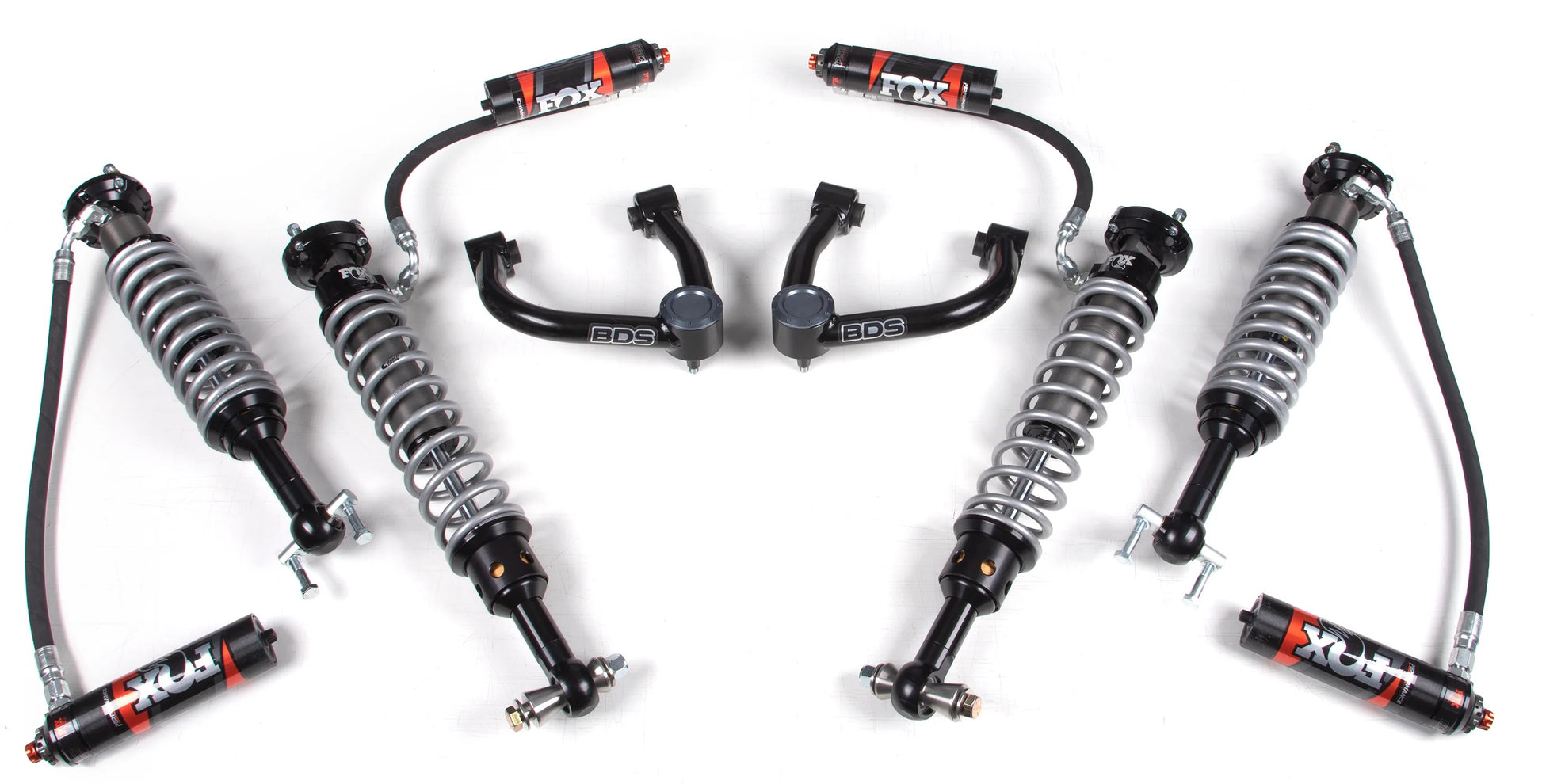

Up front, the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, BDS utilizes a complementary set of FOX 2.5 Performance Elite coil-over shocks for an improved ride.

Net lift height varies based on the factory suspension configuration as follows: 4-Door Sasquatch-equipped net 3" of lift, 4-Door Badlands: net 3.5" of lift, and 4-Door Broncos with the base suspension: net 4" of lift.

Fits:

  • Ford:
    • 2021-2026 Bronco

Notes:

  • Lift height is based on base suspension package, Badlands and Sasquatch models will net less lift however final ride height is the same for all trims.
  • Do NOT hit the aluminum knuckle with a hammer to separate the ball joint. Use appropriate ball joint separation tool (OTC 204592).
  • Will not work with models with a height sensor attached to the UCA.
  • Does not fit Bronco Sport models.
  • Not compatible with Raptor Models.
  • Is compatible with HOSS 3.0 Bronco Models
  • Will provide the following lift amounts: 2 Door | Without Sasquatch Package - 4.5" Lift, 4 Door | Without Sasquatch Package - 4" Lift, 2 Door | With Sasquatch Package - 3.5" Lift, and 4 Door | With Sasquatch Package - 3" Lift
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5.5 in. Backspace, 37 x 12.5 with 18 x 9 and 5.5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

  • FOX 2.5 Performance Elite series coilovers offer improved damper performance over stock
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% bolt-on installation

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Uniballs



  • These spherical bearings are designed for hardcore off-road and racing. Uniballs are stronger and more durable than ball joints, and depending on application, can handle greater wheel travel as well as have the option for double-shear mounting.
  • However, they are exposed and can get dirty, which can wear down the components and create noise. Uniballs also require more frequent maintenance.

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 3" (See Notes)
  • Rear Lift Method: Coilover
  • Rear Lift Height: 3" (See Notes)

You can view and download the assembly instruction booklet here and here.
