BDS 2021-2026 FORD F150 4WD,6" LIFT KIT,4" BLOCK,FOX 2.5 COILOVERS,FOX 2.0 REAR

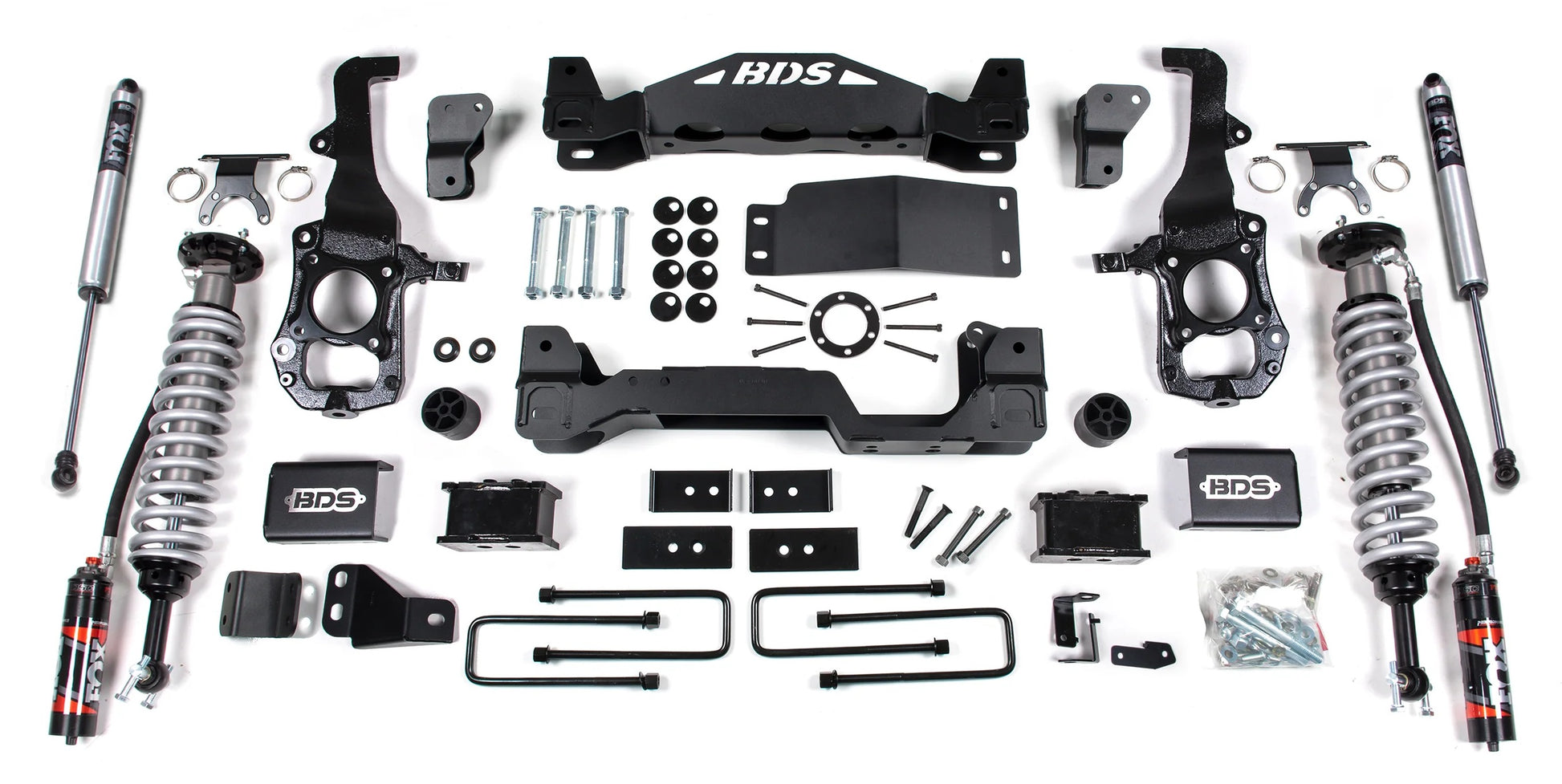

Brand New BDS Suspension 6" Lift Kit with Front Fox 2.5 Performance Elite Series Coilovers, Rear Fox 2.0 Performance Shocks, Crossmember, & 4" Block Kit (Part #BDS1900FPE).

Maximize the performance and capability of the 2021-2026 Ford F150 trucks with 6-inch coil-over suspension lift kits. These kits feature proprietary FOX Performance Elite 2.5 coilover shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 remote reservoir coil-over shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skid plate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along with perfectly tuned shocks.

Fits:

• Ford:
  • 2021-2026 F-150 4WD Gas

Notes:

• 4 Inch Block Kit - Tail low to level stance, 5 Inch Block Kit - Level to tail high appearance
• 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
• 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance.
• Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
• Block kits replace factory 1-1/4" block. The stock block will not be reinstalled.
• Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
• Does NOT fit diesel models.
• Will not work with Tremor models.
• Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
• Will not work with models with CCD (Continuous Controlled Damping)
• 5" Block kit recommended for a more level stance, 4" block kit will result in a tail low stance.
• Recalibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center.
• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 5 in. Backspace, 35 x 12.5 with 20 x 9 and 4.5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

• FOX 2.5 coilover shocks designed specifically for increase travel and the ability to soak up the roughest terrain
• DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance
• Functions with Blue Cruise

FOX 2.0 Performance Series (Rear):

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Crossmember
• Front Lift Height: 6"
• Rear Lift Method: Block
• Rear Lift Height: 4"

You can view and download the assembly instruction booklet here.
