BDS 2001-2010 GM 2500/3500 4WD 7" LIFT KIT,STANDARD TRACK,NX2 SHOCKS
BDS 2001-2010 GM 2500/3500 4WD 7" LIFT KIT,STANDARD TRACK,NX2 SHOCKS
SKU:STU BDS189H
Couldn't load pickup availability

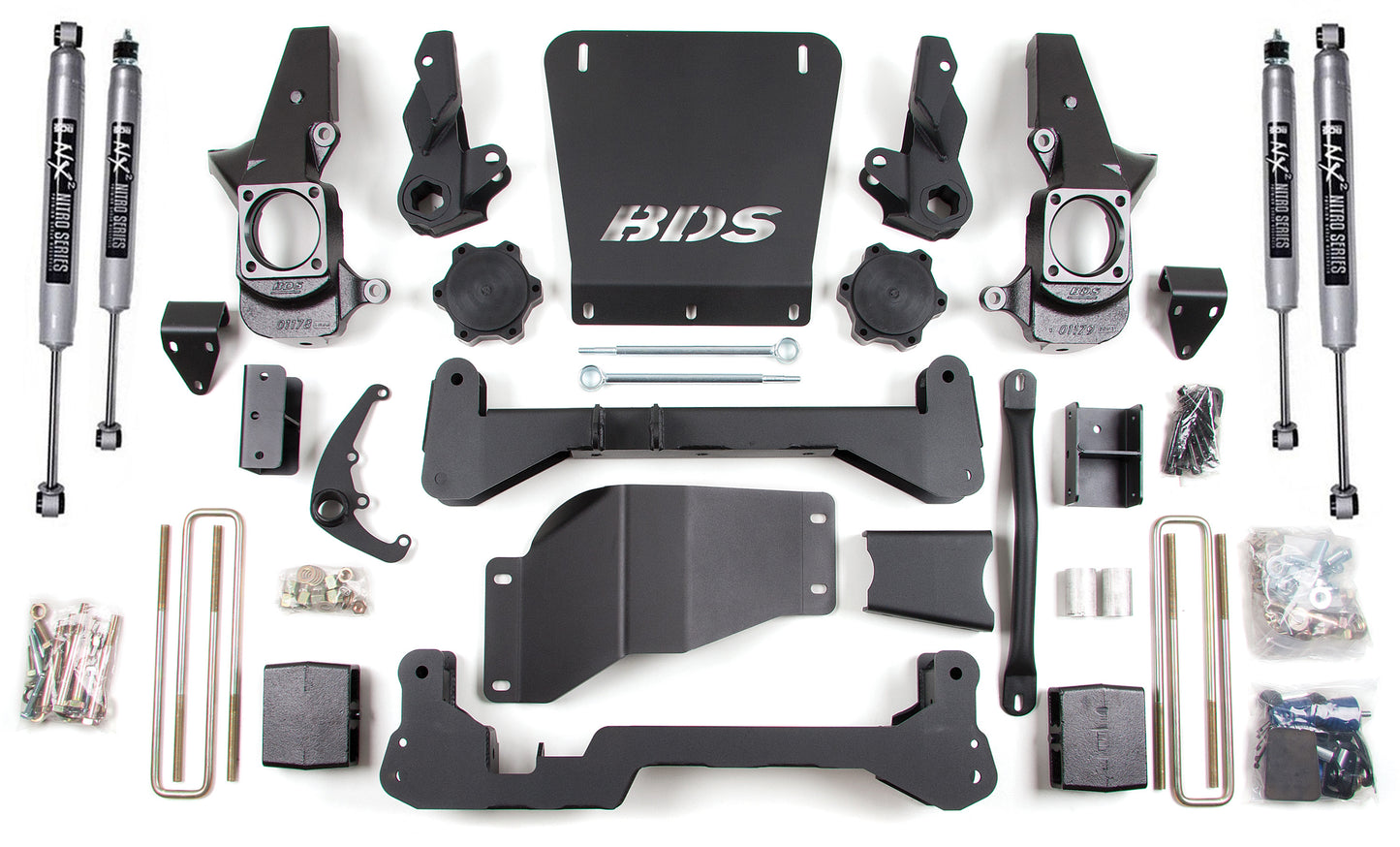

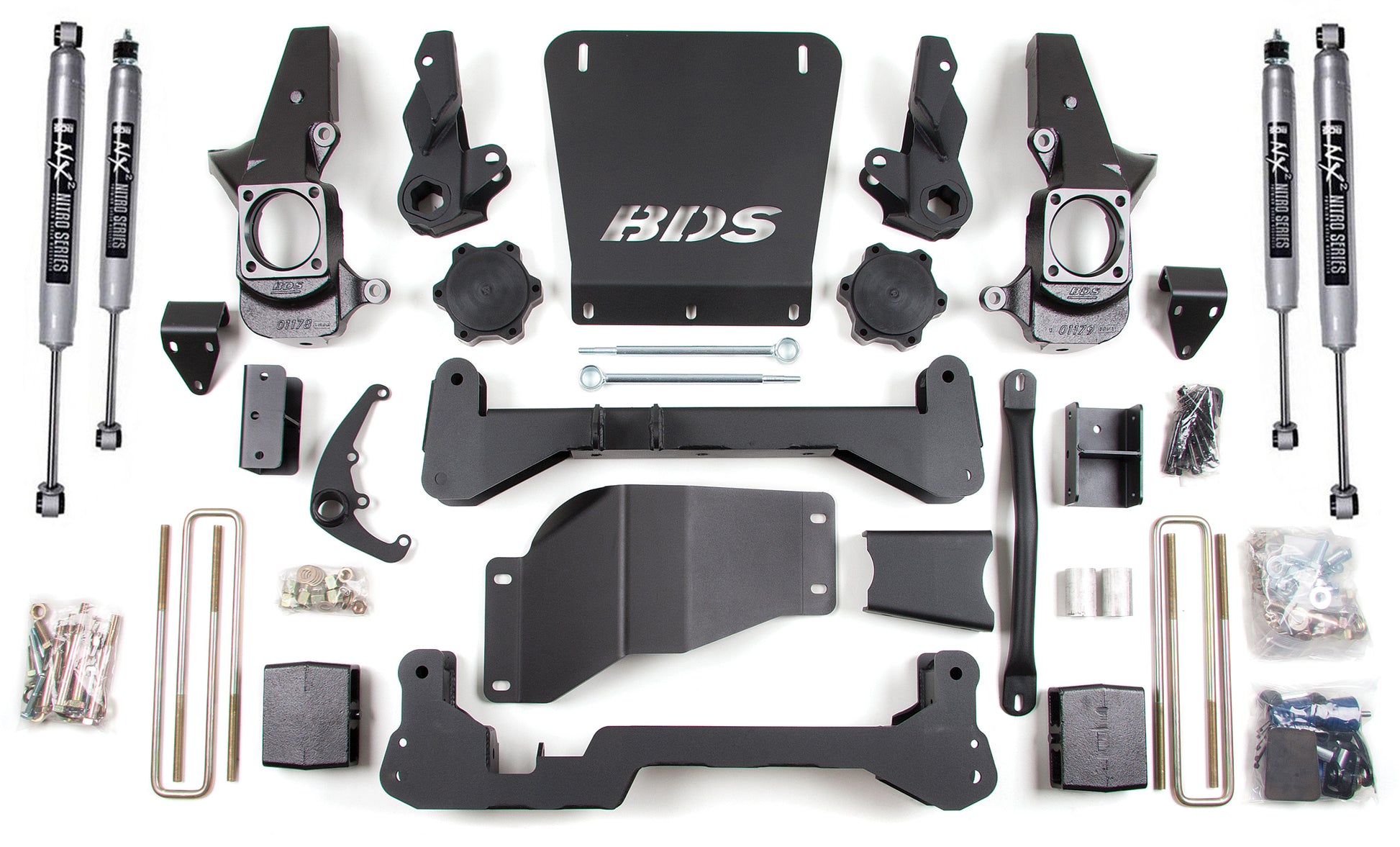

Brand New BDS Suspension 7" Lift Kit with Standard Track Width Knuckles & NX2 Series Shocks (Part #BDS189H).
This unique High Clearance suspension lift kit utilizes high arched crossmembers that blend perfectly with the angle of the factory installed lower control arms for a completely integrated look while lifting your vehicle a full 7"dramatically increasing ground clearance at the front crossmembers and improving operating geometry. Torsion bars are mounted directly to the top of the lower a-arm eliminating the need to drop the torsion bar crossmember.
A front skid plate and differential skid plate come standard, to lock everything together, creating a nearly indestructible sub frame for extreme off road protection. The rear is lifted with a flat 5" block for easy installation.
The BDS NX2 series gas shocks offer impressive performance on and off-road. Standard in most BDS lift kits, these nitrogen charged, twin-tube shocks offer 10-stage velocity sensitive valving for lightning fast damper performance and control.
Fits:
- Chevrolet:
- 2001-2010 Silverado 2500HD 4WD
- 2001-2010 Silverado 3500/3500HD 4WD
- GMC:
- 2001-2010 Sierra 2500HD 4WD
- 2001-2010 Sierra 3500/3500HD 4WD
Notes:
- Torsion Bar tool required to load/unload the torsion bars.
- Some welding required.
- Requires frame bracket modification and differential mount modification.
- Traction bars will NOT fit standard cab/short box models and are designed to work on vehicles with 4" to 8" of lift. Will NOT work on long bed models.
- 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
- Gas models require exhaust modification.
- Narrow track knuckle will slightly increase turning radius.
- For tail high stance use #119157 add-a-leaf with the block kit or #069207 with leaf spring kit.
- Dually applications will require custom u-bolts.
You can view and download the complete assembly instruction booklet for this kit here.
