BDS 2007-2013 CHEVY,GMC 1500 2WD 4" LIFT LEAF SPRING KIT WITH FOX 2.5 COILOVERS

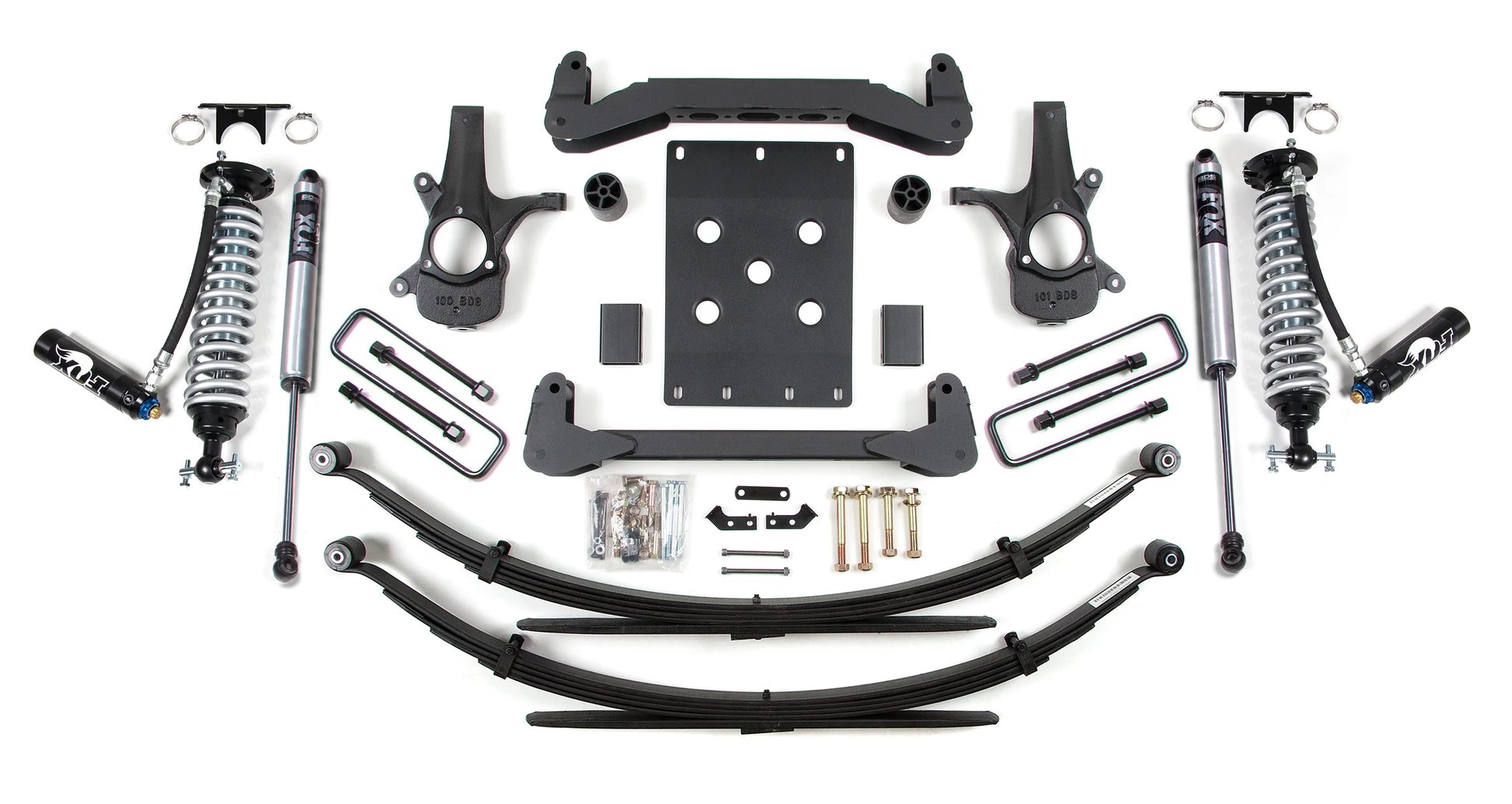

Brand New BDS Suspension 4" Lift Kit with Front FOX 2.5 DSC Coilovers & Rear Fox 2.0 Shocks with Leaf Springs (Part #BDS187FDSC).

BDS offers a 2wd-specific 4-inch coil-over suspension lift kit for your 2007-2013 Chevy Silverado and GMC Sierra 1500 that will maximize performance and capability. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes high-arched 1/4-inch thick steel crossmembers along with heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers full Glide-Ride leaf spring options to lift and level that stance.

Compatible with:

• Chevrolet:

  • 2007-2013 Silverado 1500 2WD
• GMC:
  • 2007-2013 Sierra 1500 2WD

Notes:

• Strut compressor required for installation.

• This system will not fit 2007 Classic models.

• 20" wheels with 5-1/2" to 5-3/4" backspacing recommended to reduce trimming.

• Will not fit 2009-12 Two-Mode Hybrid models with Electronic Power Steering (EPS)

• Will not work on extended/crew cab long box vehicles
• Recommended Tires & Wheels (Trimming May Be Required): 32 x 11.5 with 17 x 8 and 4.5 in. Backspace, 33 x 12.5 with 17 x 9 and 5 in. Backspace, or 33 x 12.5 with 20 x 9 and 5.75 in. Backspace

Features:

• FOX 2.5 Factory Race series coilovers for improved ride quality, performance, and capability

• High clearance crossmember design maximizes ground clearance

• Robust steering knuckles maintain ESC system compliance

• HD skid plate system improved off-road protection

• Multipoint differential relocation brackets to secure the front axle and improve CV angles

5 Inch Block Kit:

• The 5" rear block replaces the factory 2" block

• Nets 3" of rear lift to level the vehicle.

• Made of cast iron for high strength.

• Designed to provide correct pinion angles.

Specs:

• Front Lift Method: Crossmember
• Front Lift Height: 4"

• Rear Lift Method: Leaf Springs
• Rear Lift Height: 3"

You can view and download the assembly or instruction booklet here and here.
