BDS 2007-2013 CHEVY,GMC 1500 2WD 4" LIFT BLOCK KIT WITH FOX SHOCKS

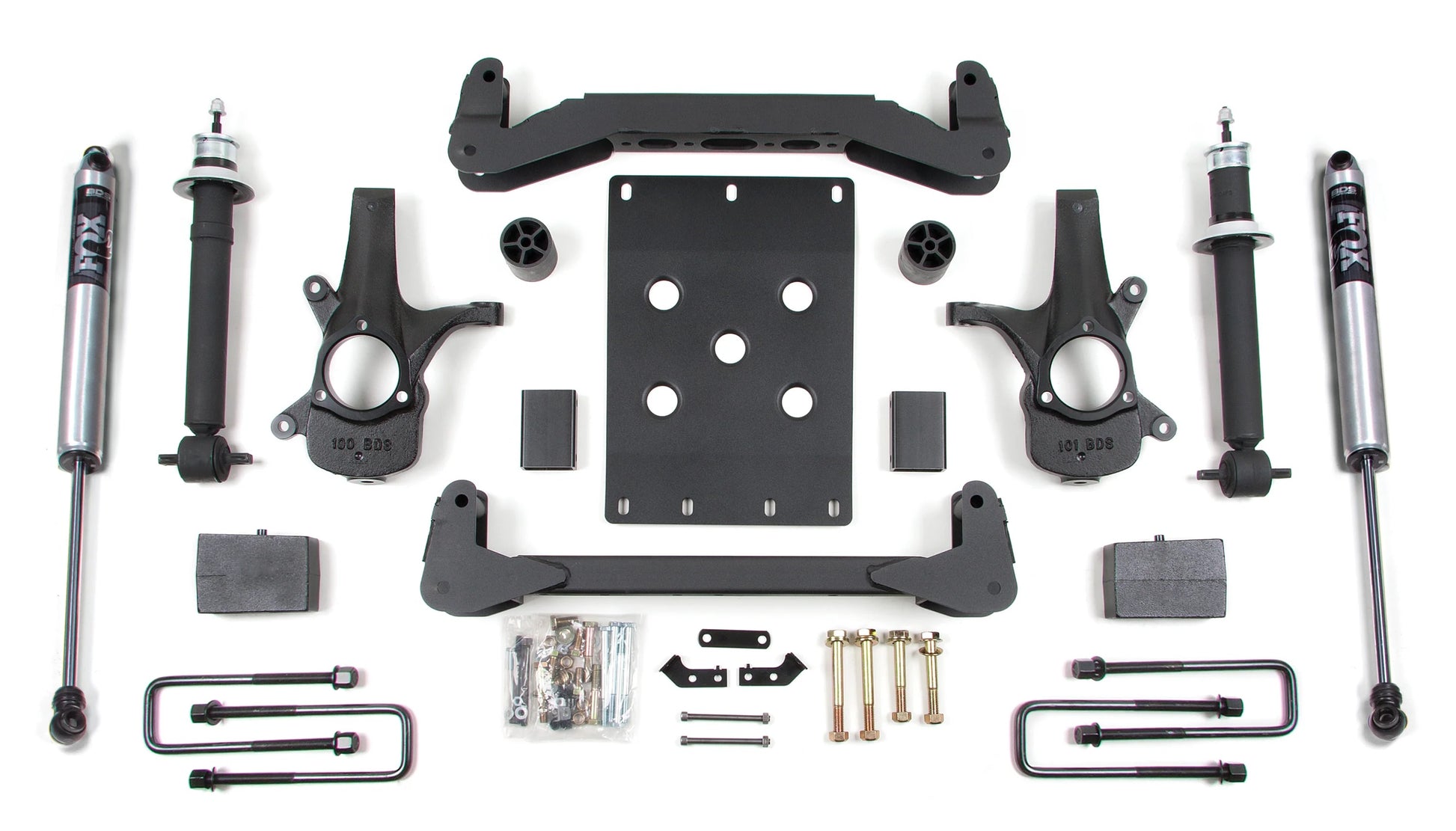

Brand New BDS Suspension 4" Lift Kit with Front Strut Shocks & Rear Fox 2.0 Shocks with 5 Inch Blocks (Part #BDS186FS).

Overhaul the style and ride of your 2WD 2007-2013 Chevy Silverado and GMC Sierra 1500 with a BDS 4-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.

Compatible with:

• Chevrolet:

  • 2007-2013 Silverado 1500 2WD
• GMC:
  • 2007-2013 Sierra 1500 2WD

Notes:

• Strut compressor required for installation.

• This system will not fit 2007 Classic models.

• 20" wheels with 5-1/2" to 5-3/4" backspacing recommended to reduce trimming.

• Will not fit 2009-12 Two-Mode Hybrid models with Electronic Power Steering (EPS)

• Will not work on extended/crew cab long box vehicles
• Recommended Tires & Wheels (Trimming May Be Required): 32 x 11.5 with 17 x 8 and 4.5 in. Backspace, 33 x 12.5 with 17 x 9 and 5 in. Backspace, or 33 x 12.5 with 20 x 9 and 5.75 in. Backspace

Features:

• High clearance crossmember design maximizes ground clearance

• Robust steering knuckles maintain ESC system compliance

• HD skid plate system improved off-road protection

• Multipoint differential relocation brackets to secure the front axle and improve CV angles

5 Inch Block Kit:

• The 5" rear block replaces the factory 2" block

• Nets 3" of rear lift to level the vehicle.

• Made of cast iron for high strength.

• Designed to provide correct pinion angles.

Specs:

• Front Lift Method: Crossmember
• Front Lift Height: 4"

• Rear Lift Method: Blocks
• Rear Lift Height: 3"

You can view and download the assembly or instruction booklet here and here.
