BDS 2025-2026 CHEVY,GMC AT4 1500 4WD,1.5" LIFT,FOX 2.5 COILOVERS,FOX 2.0 SHOCKS

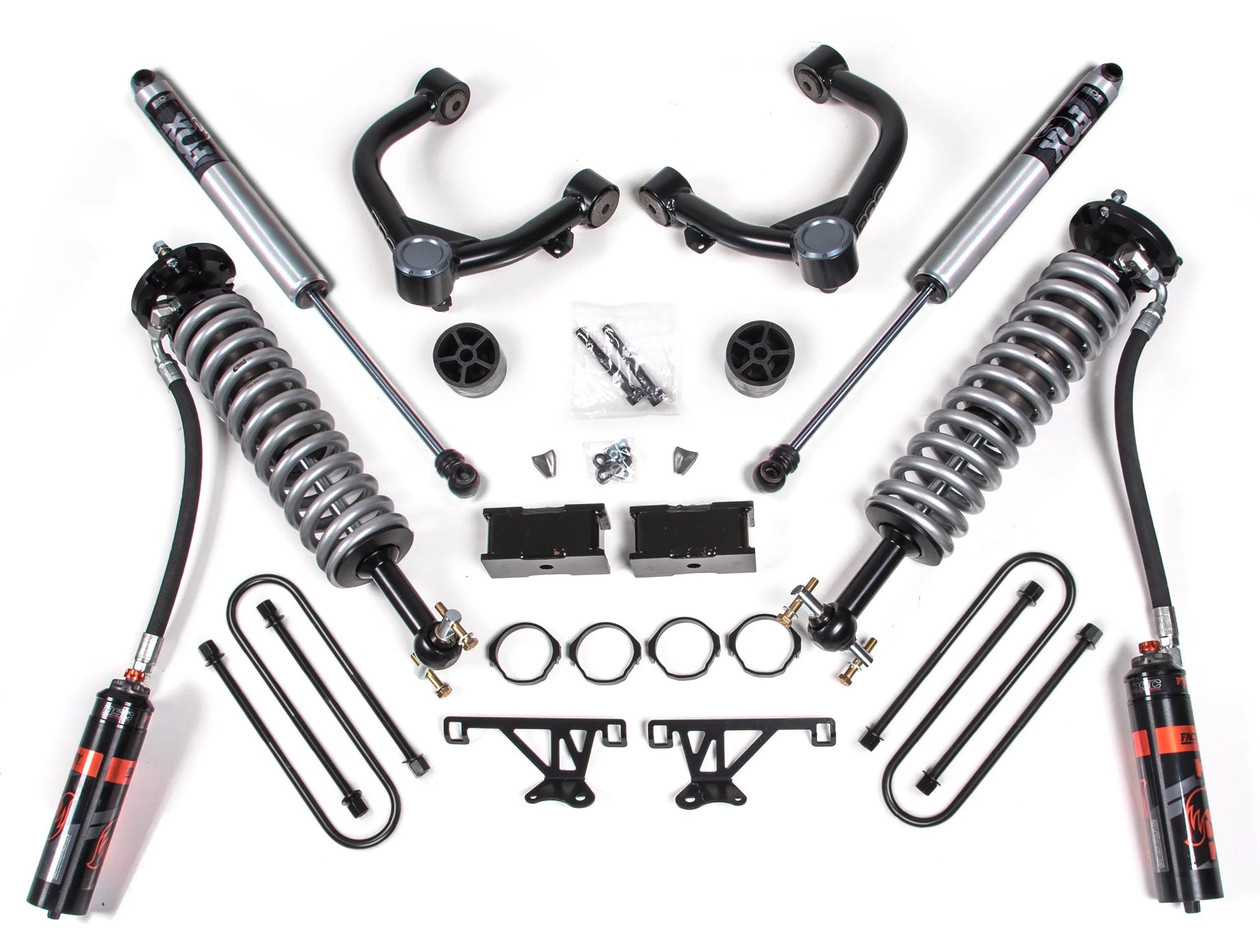

Brand New BDS Suspension 1.5" Lift Kit with Front Fox 2.5 Performance Elite Series Coilovers, Rear Fox 2.0 Performance Shocks, & Block Kit (Part #BDS1858PSS).

Up the ante in your Chevy Trail Boss or GMC AT4 1500 truck with style and performance by installing this 1.5-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires (Chevy) or 33" tires (GMC).

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coilover shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes fabricated steel lift blocks, longer u-bolts and a complementary set of shocks for the smoothest ride.

Fits:

• Chevrolet:
  • 2025-2026 Silverado 1500 Trail Boss 4WD
• GMC:
  • 2025-2026 Sierra 1500 AT4 4WD

Notes:

• Fits 4WD models only
• Lift heights specific for Trail Boss and AT4 models only.
• Will not fit models with Adaptive Ride Control (ARC).
• Requires a maximum of 5.5" BS Wheel for tire clearance to the upper ball joint
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
• Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
• Recommended Tires & Wheels (Trimming may be required): 33 x 12.5 with 17 x 9 and 4.5 in. Backspace, 33 x 12.5 with 20 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

• Builds off factory suspension geometry for improved performance with easy install.
• FOX 2.5 Performance Elite coilovers offer improved damper performance over stock
• DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• BDS HD upper control arms for strength and increased suspension travel.
• High misalignment angle, greaseable heavy duty ball joints.
• Rubber control arm bushings to promote long life and no maintenance of the joint.
• Rear lift block kit to produce a level to slightly tail height stance. 1/4" wheel spacer provided to be used with the spare tire if needed.
• Optional weld on steering stops to help tire clearance to fenders, control arms, etc. Dependent upon wheel offset selected.

FOX 2.0 Performance Series (Rear):

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 1.5"
• Rear Lift Method: Block
• Rear Lift Height: 0.5"

You can view and download the assembly instruction booklet here.
