BDS 2025-2026 CHEVY,GMC AT4 1500 4WD,1.5" LIFT,FOX 3.0 RACE SERIES COILOVERS

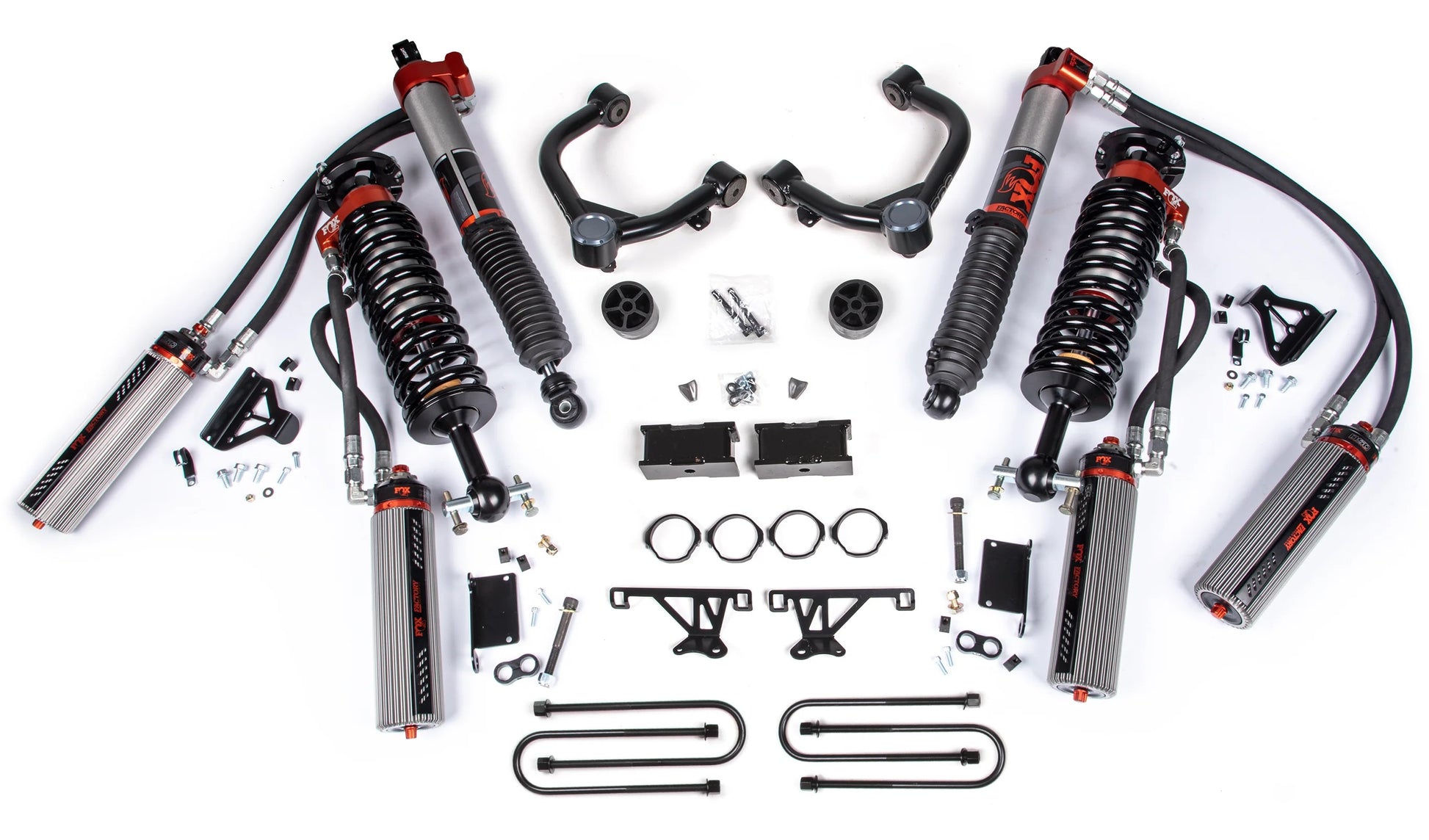

Brand New BDS Suspension 1.5" Lift Kit with Front Fox 3.0 Factory Race Series Coilovers, Rear Fox 3.0 Shocks, & Block Kit (Part #BDS1858FRS).

Up the ante in your Chevy Silverado or GMC Sierra 1500 truck with style and performance by installing this 1.5-inch lift kit featuring FOX Factory Race Series 3.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires (Chevy) or 33" tires (GMC).

Up front the lift kit includes FOX Factory Race Series 3.0 remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes fabricated steel lift blocks, longer u-bolts and a complementary set of FOX Factory Race Series 3.0 shocks for unmatched performance.

Fits:

• Chevrolet:
  • 2025-2026 Silverado 1500 Trail Boss 4WD
• GMC:
  • 2025-2026 Sierra 1500 AT4 4WD

Notes:

• Fits 4WD models only
• 5.5" max wheel backspacing can be used.
• Will not fit models with Adaptive Ride Control (ARC).
• Lift heights specific for Trail Boss and AT4 models only
• This kit has not been test fit on Silverado ZR2 or Sierra AT4X models.
• Lifting of the bed required for shock install.
• Recommended Tires & Wheels (Trimming may be required): 33 x 12.5 with 17 x 9 and 4.5 in. Backspace, 33 x 12.5 with 20 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

• Builds off factory suspension geometry for improved performance with easy install.
• Front FOX 3.0 Factory Race Series IBP coil overs for unmatched performance and capability with simple adjustment of settings.
• Rear FOX 3.0 Factory Race Series IBP shocks for improved ride quality, performance and capability.
• BDS HD upper control arms for strength and increased suspension travel.
• High misalignment angle, greaseable heavy duty ball joints.
• Rubber control arm bushings to promote long life and no maintenance of the joint.
• Rear lift block kit to produce a level to slightly tail height stance. 1/4" wheel spacer provided to be used with the spare tire if needed.
• Optional weld on steering stops to help tire clearance to fenders, control arms, etc. Dependent upon wheel offset selected.

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 1.5"
• Rear Lift Method: Block
• Rear Lift Height: 0.5"

You can view and download the assembly instruction booklet here and here.
