BDS 2025 CHEVY,GMC 1500 4WD 3.5" LIFT KIT WITH FOX 2.5 PERFORMANCE ELITE SHOCKS

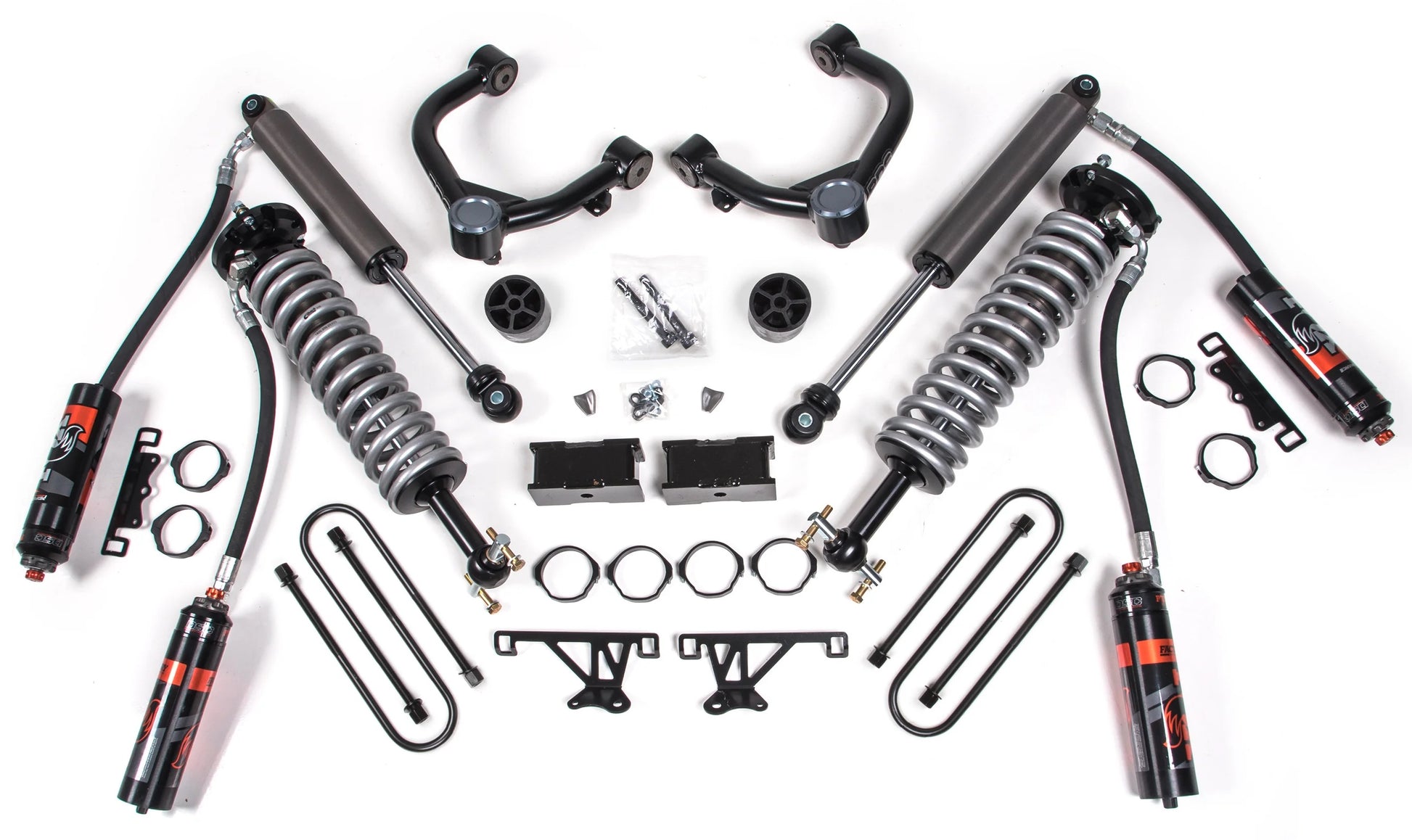

Brand New BDS Suspension 3.5" Lift Kit with Front FOX 2.5 Coil-Over & Rear FOX 2.5 Elite Shocks (Part #BDS1857PES).

Up the ante in your Chevy Silverado or GMC Sierra 1500 truck with style and performance by installing this 3.5-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires (Chevy) or 33" tires (GMC).

Compatible with:

• Chevrolet:

  • 2025 Silverado 1500 4WD
• GMC:
  • 2025 Sierra 1500 4WD

Notes:

• Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 17 x 9 and 4.5 in. Backspace, 33 x 12.5 with 20 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

• Builds off factory suspension geometry for improved performance with easy install.

• DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain

• BDS HD upper control arms for strength and increased suspension travel.

• High misalignment angle, greaseable heavy duty ball joints.

• Rubber control arm bushings to promote long life and no maintenance of the joint.

• Rear lift block kit to produce a level to slightly tail height stance. 1/4" wheel spacer provided to be used with the spare tire if needed.

• Optional weld on steering stops to help tire clearance to fenders, control arms, etc. Dependent upon wheel offset selected.

FOX 2.5 Performance Elite Series (Rear):

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coil-Over
• Front Lift Height: 3.5"

• Rear Lift Method: Blocks
• Rear Lift Height: 2.5"

You can view and download the assembly/instruction booklet here.
