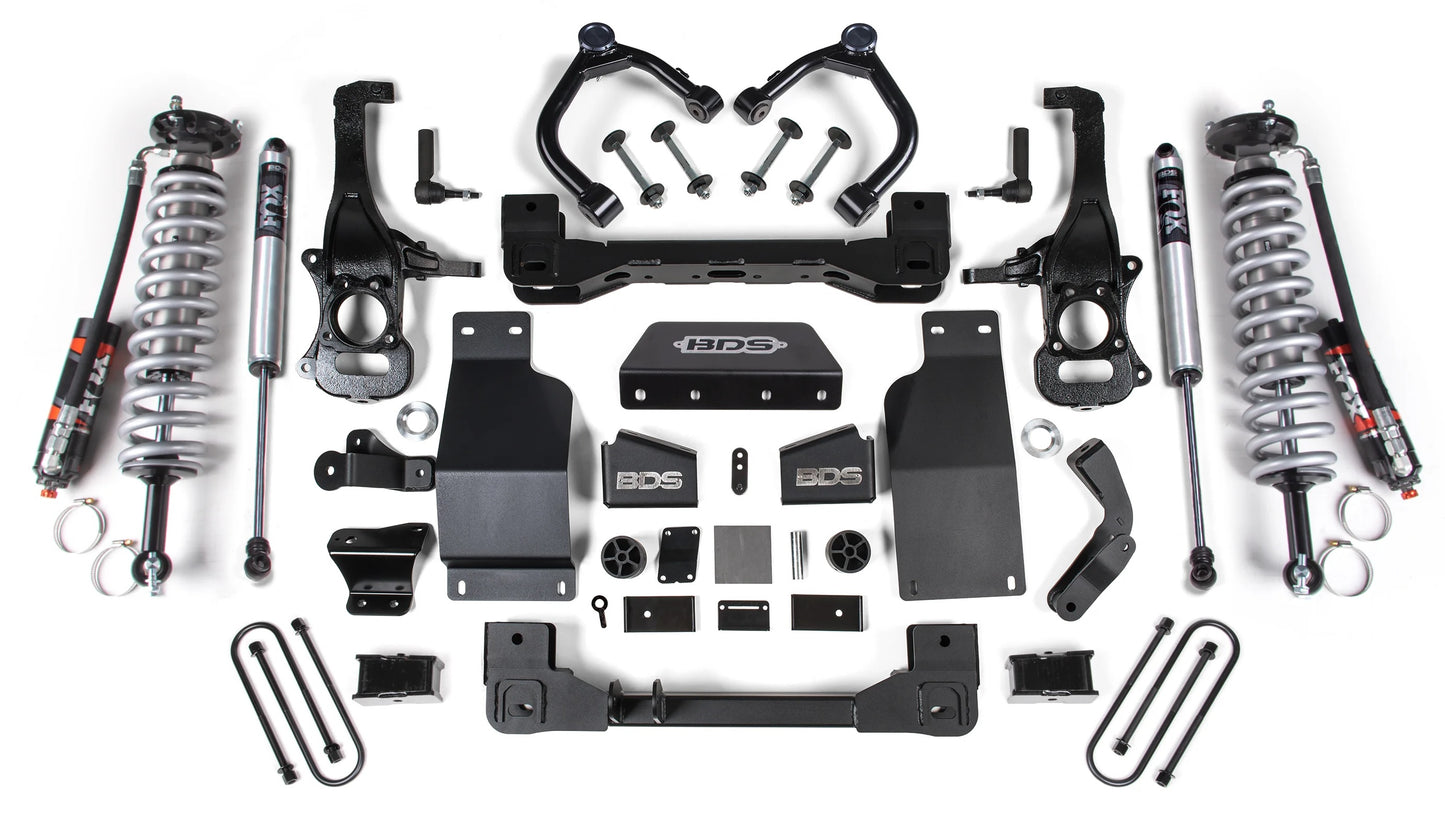

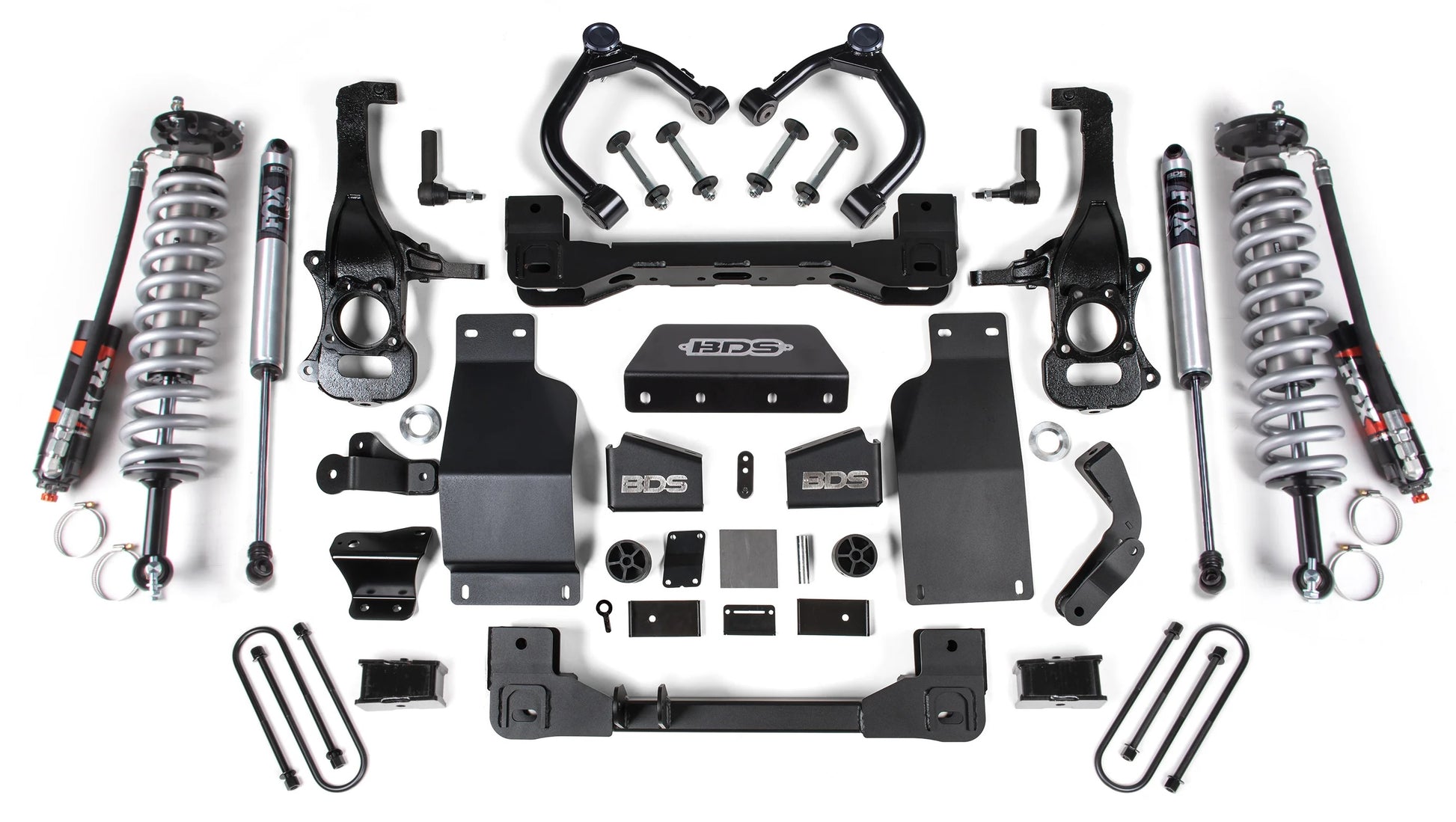

BDS 2025 CHEVY,GMC 1500 4WD DIESEL 4" LIFT KIT WITH FOX 2.0 PERFORMANCE SHOCKS

Brand New BDS Suspension 4" Lift Kit with Front FOX 2.5 Coilovers & Rear FOX 2.0 Shocks (Part #BDS1853PSS).

Up the ante in performance with your Chevy Silverado and GMC Sierra 1500 truck by installing the BDS 4-inch lift kit suspension featuring FOX 2.5 Performance Elite coil-over shocks. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes FOX 2.5 Performance Elite coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned premium FOX 2.0 Performance Series shocks.

Compatible with:

• Chevrolet:

  • 2025 Silverado 1500 4WD Diesel & 2.7L Gas Only
• GMC:
  • 2025 Sierra 1500 4WD Diesel & 2.7L Gas Only

Notes:

• Fits 4X4 Models only
• Does not work with models equipped with ARC.
• Does not work with Denali, High Country, ZR2, or AT4X models.
• Works on Diesel and 2.7 Gas models only.
• Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 17 x 9 and 4.5 in. Backspace, 33 x 12.5 with 20 x 9 and 5 in. Backspace, or 33 x 12.5 with 20 x 9 and 6.25 in. Backspace

Features:

• Fox 2.5 Shocks designed specifically for increased travel and the ability to soak up the roughest terrain.

• The DSC (dual speed compression) adjuster adds remarkable versatility and precise tuning with a simple twist of one or both knobs.

• High clearance crossmember design maximizes ground clearance

• Robust steering knuckles maintain ESC system compliance

• HD skid plate system improved offroad protection

• Multipoint differential relocation brackets to secure the front axle and improve CV angles

• FOX performance series IFP gas rear shocks to improved ride and off-road performance

FOX 2.0 Performance Series (Rear):

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Cross Member & Coilover
• Front Lift Height: 4"

• Rear Lift Method: Blocks
• Rear Lift Height: 3"

You can view and download the assembly/instruction booklet here and here.
