BDS 2025 CHEVY,GMC 1500 4WD GAS 4" LIFT WITH STRUT SPACER & FOX REAR SHOCKS

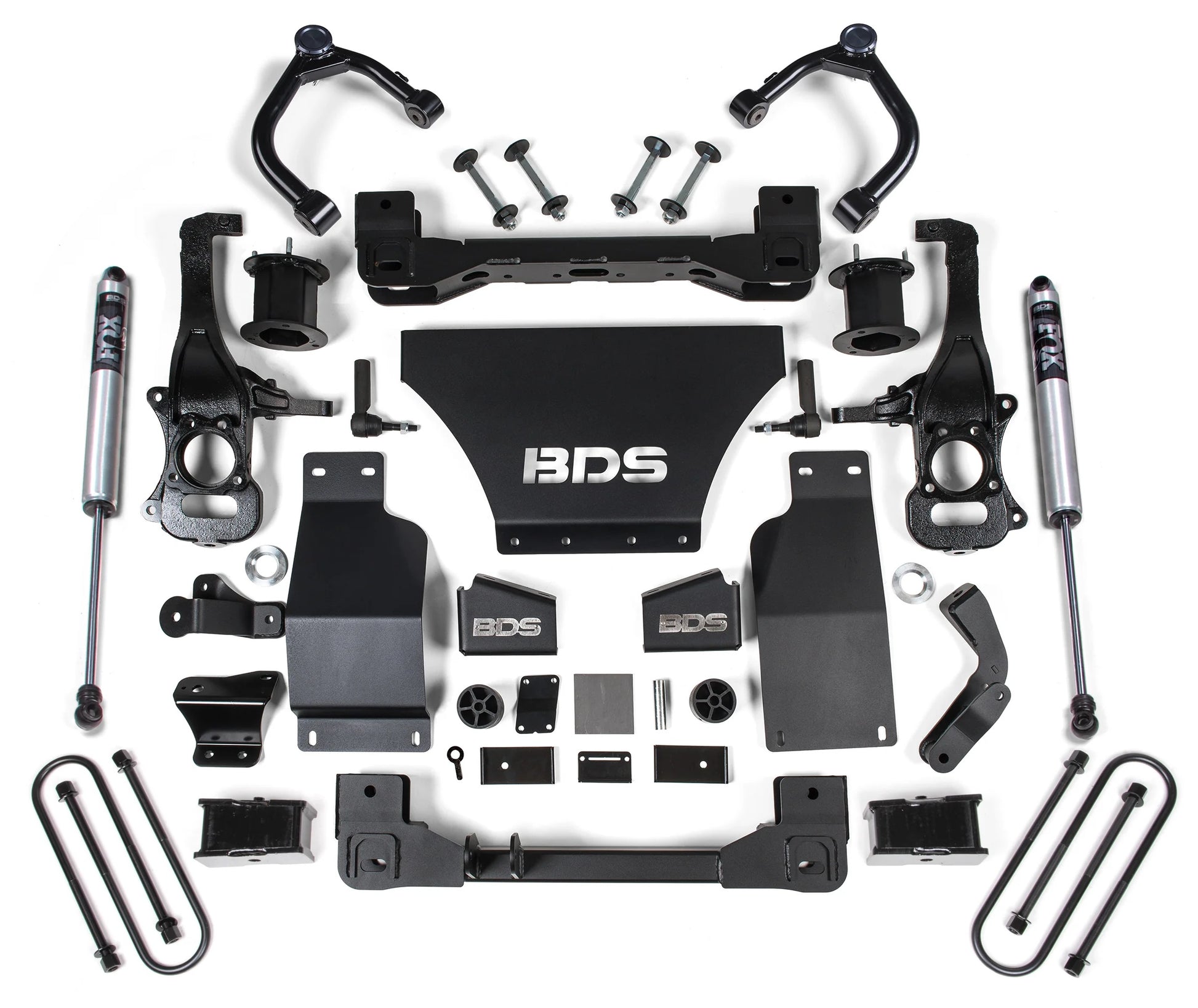

Brand New BDS Suspension 4" Lift Kit with Front Strut Spacer & Rear Fox 2.0 Shocks (Part #BDS1851FS).

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity.

Compatible with:

• Chevrolet:

  • 2025 Silverado 1500 4WD Gas
• GMC:
  • 2025 Sierra 1500 4WD Gas

Notes:

• Fits 4X4 Models only

• Does not work with models equipped with ARC.

• Does not work with Denali, High Country, ZR2, or AT4X models.

• Works on Gas models only
• Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 17 x 9 and 4.5 in. Backspace, 33 x 12.5 with 20 x 9 and 5 in. Backspace, or 33 x 12.5 with 20 x 9 and 6.25 in. Backspace

Features:

• High clearance crossmember design maximizes ground clearance

• Robust steering knuckles maintain ESC system compliance

• HD skid plate system improved off-road protection

• Multipoint differential relocation brackets to secure the front axle and improve CV angles


FOX 2.0 Performance Series (Rear):

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Cross Member & Strut Spacer
• Front Lift Height: 4"

• Rear Lift Method: Blocks
• Rear Lift Height: 3"

You can view and download the assembly/instruction booklet here.
