BDS 20-24 GM 2500HD,3500HD 4WD DIESEL W/O OVERLOAD,3" LIFT,FOX 2.0 SHOCKS

BDS 20-24 GM 2500HD,3500HD 4WD DIESEL W/O OVERLOAD,3" LIFT,FOX 2.0 SHOCKS

SKU:STU BDS1829FPE

Regular price $5,979.74
Regular price Sale price $5,979.74
View full details

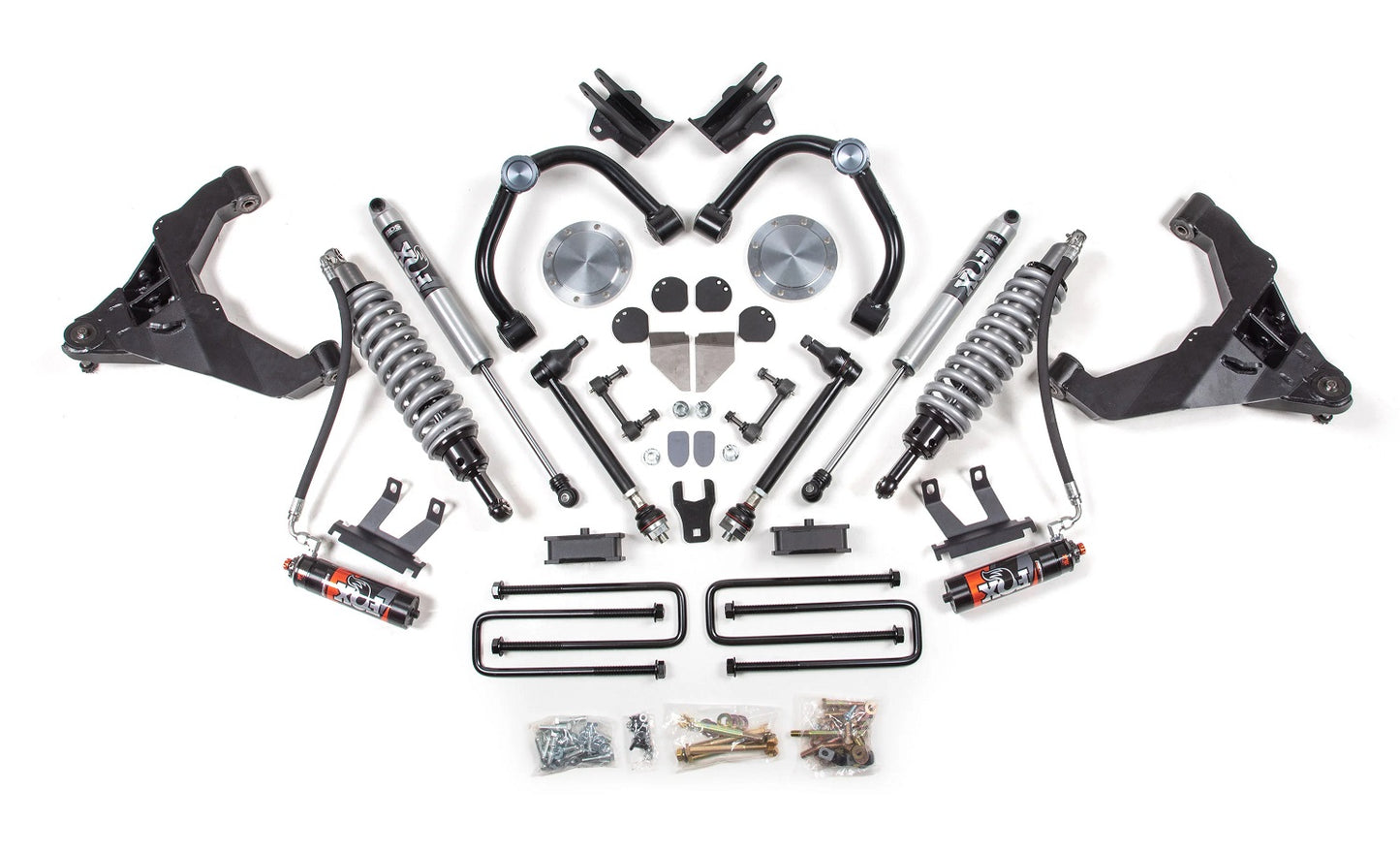

Brand New BDS Suspension 3" Lift Kit with FOX 2.5 Coil-Over, FOX 2.0 Rear Shocks & Block Kit , Compatible with 2020-2024 Silverado & Sierra 2500HD, 3500HD 4WD Diesel (Part #BDS1829FPE).

BDS is a game changer in the performance of your truck with a 3-inch suspension lift kit with FOX 2.5 Performance Elite Coil-Over conversion. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. These kits feature proprietary FOX 2.5 Performance Elite coil-over shocks designed specifically to bolt-on performance for increased travel and the ability to soak up the roughest terrain along with smooth on-road comfort. In addition to replacing the factory torsion bars, the upper and lower control arms are upgraded to improve strength, travel, and accommodate the new coil-overs. The new upper control arms are fabricated from large 1.5" OD x .120-wall tubing, fully TIG welded for the highest quality, strength and durability. To compliment the uppers, the new lower control arms are built from high strength steel, fully boxed with internally gusseted. This kit takes principles on BDS's engineering standard for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes FOX 2.5 coil-over shocks, heavy duty tubular upper control arms, fully boxed and gusseted lower control arms, and multipiece differential relocation brackets to maintain correct CV angles. These combined with the provided sway bar links, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a U-bolt flip kit for max clearance and precision tuned Performance Elite Series 2.0” shocks for ultimate off road performance.

FOX Performance Elite: FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Upper Control Arms (UCAs): Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

NOTE:

  • Does not fit AT4X models.
  • Models with two-piece rear drive shafts will require a carrier bearing drop kit. (BDS121612)
  • Requires frame bracket modification and minor welding
  • Disassembly/assembly of the factory torsion bar system requires the use of a special unloading tool.
    The GM specified tool # is CH48809.
  • Compatible with diesel models ONLY. Works with standard or AT4 diesel models. The use of the coilovers on GAS engine models is not recommended due to providing too much lift. Available preload adjustment is typically not enough to achieve desired ride height.
  • Dually Models will require aftermarket 20" wheels with a max tire size of 285/60/20.
  • Factory 17”, 18” and 20” wheels cannot be reinstalled due to upper control arm clearance.
  • Coilover coil has a large amount of preload, a coil spring compressor must be used to remove the coil from the coilover. Failure to use a coil spring compressor may result in death or injury.
  • Do NOT increase coilover preload.
  • For replacement ball joints use service kit BDS081203. Ball joints are directional and must be installed with the ‘dot’ facing either inward or outward on the vehicle, otherwise damage may occur.
  • Increase of 1” of track width per side (2” overall) is done to create a better travel range of the suspension to allow more droop travel from ride height along width helping the coilover clear the frame components.
  • Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.50 on 17” x 9” w/ 4-1/2 to 5-1/2” Backspacing, 285/75 on 17x9” w/ 4-1/2 to 5-1/2” Backspacing, 35 x 12.50 on 18” x 9” w/ 4-1/2 to 5-1/2” Backspacing, 285/70 on 18x9” w/ 4-1/2 to 5-1/2” Backspacing, 35 x 12.50 on 20” x 9” w/ 4-1/2 to 5-1/2” Backspacing, 295/60 on 20” x 9” w/ 4-1/2 to 5-1/2” Backspacing

Compatible with:

  • Chevrolet:
    • 2020-2024 Silverado 2500 HD 4WD Diesel Factory Block Kit without Overload Springs
    • 2020-2024 Silverado 3500 HD 4WD Diesel Factory Block Kit without Overload Springs
  • GMC:
    • 2020-2024 Sierra 2500 HD 4WD Diesel Factory Block Kit without Overload Springs
    • 2020-2024 Sierra 3500 HD 4WD Diesel Factory Block Kit without Overload Springs

Features:

  • Converts torsion bar front suspension to a Coil-over for improved ride comfort.
  • Includes BDS upper and lower control arms.
  • FOX 2.5 Performance Elite series DSC coil-overs offer improved damper performance over stock.
  • BDS performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 Performance Series (Rear)
  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil-Over
  • Rear Lift Method: Blocks
  • Shocks Included: Yes
  • Front Lift Height: 3"
  • Rear Lift Height: 2"

You can view and download the assembly/instruction booklet here.
