BDS 2013-2018 RAM 3500 4WD,GAS,AIR RIDE,4" RADIUS LIFT,BLOCK,FOX 2.0 SHOCKS

BDS 2013-2018 RAM 3500 4WD,GAS,AIR RIDE,4" RADIUS LIFT,BLOCK,FOX 2.0 SHOCKS

STU BDS1793FS

$2,395.60
$2,395.60
View full details

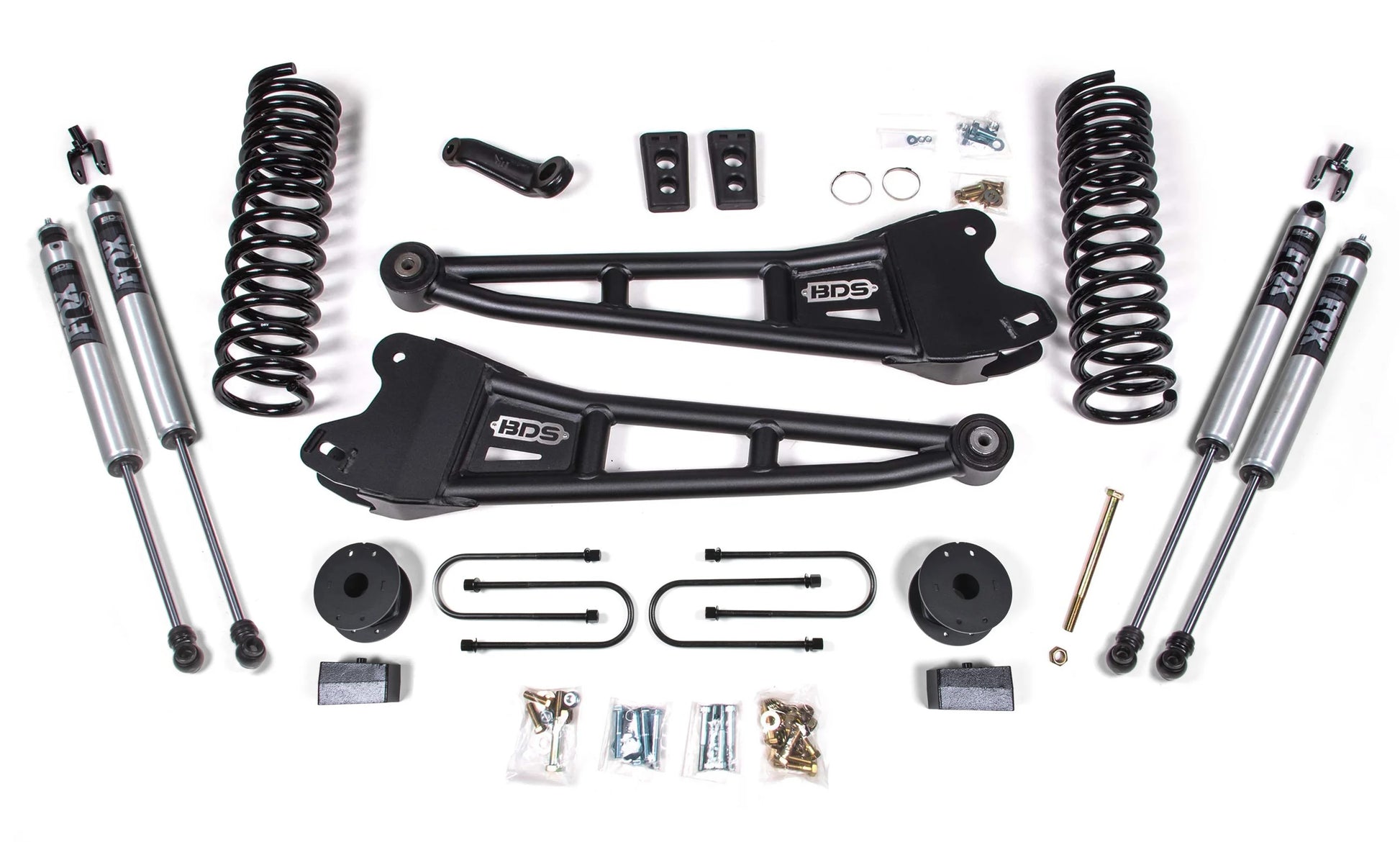

Brand New BDS Suspension 4" Lift Kit with Fox 2.0 Performance Shocks, Radius Arms, & Block Kit (Part #BDS1793FS).

Upgrade the ride and style of your 2013-2018 RAM 3500 gas powered truck equipped with factory rear air ride by installing this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy duty radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned shocks. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacer, longer u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Gas with Rear Air Ride

Note:

  • 6.4L gas models will require exhaust modification to clear the front driveshaft. 5.7L gas models may require exhaust modification as well.
  • The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
  • Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 20 x 9 and 5.625 in. Backspace or 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here and here.
