BDS 2013-2018 RAM 3500 4WD,DIESEL,AIR RIDE,4" RADIUS LIFT,BLOCK,NITRO SHOCKS

BDS 2013-2018 RAM 3500 4WD,DIESEL,AIR RIDE,4" RADIUS LIFT,BLOCK,NITRO SHOCKS

STU BDS1792H

$1,795.60
$1,795.60
View full details

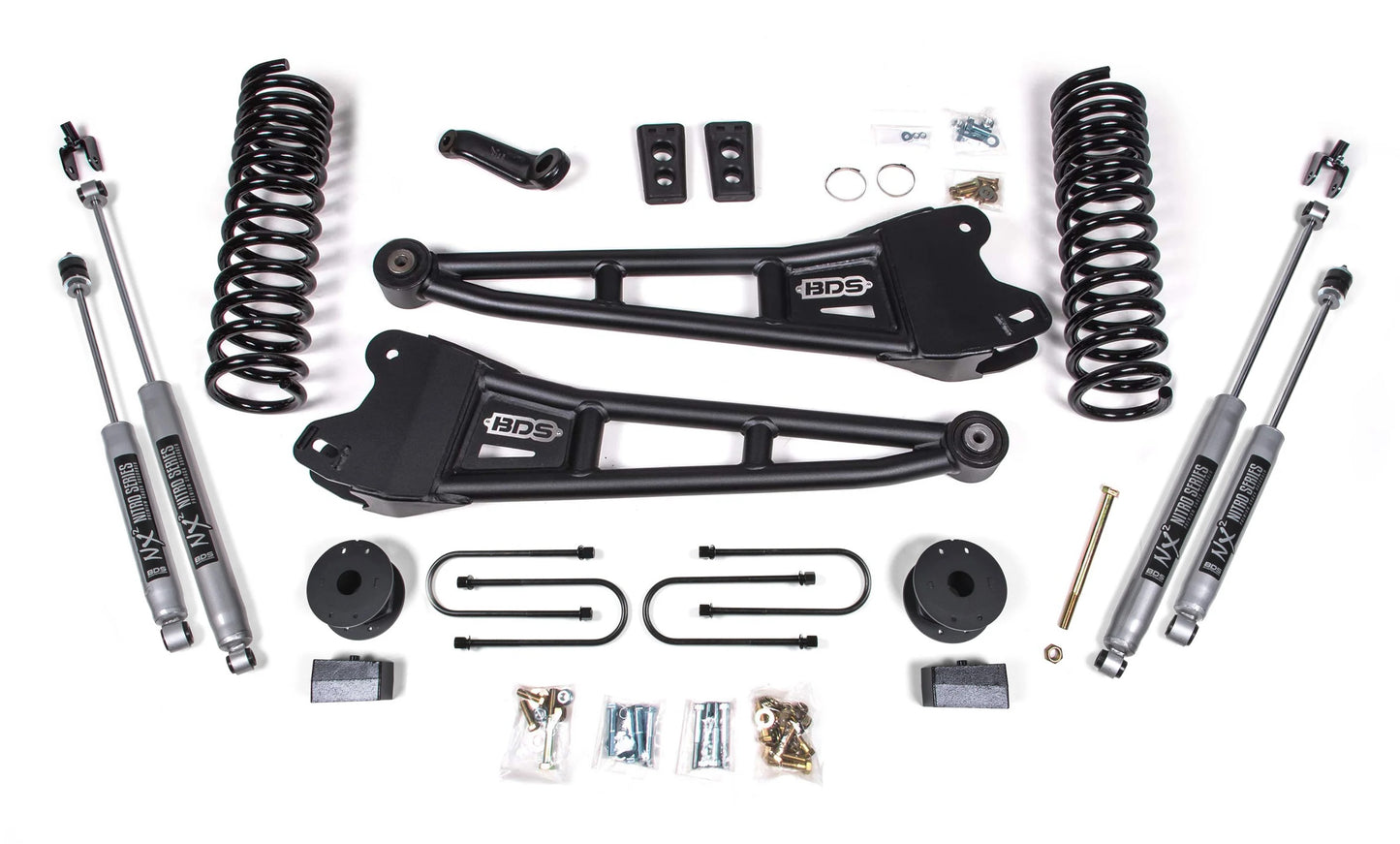

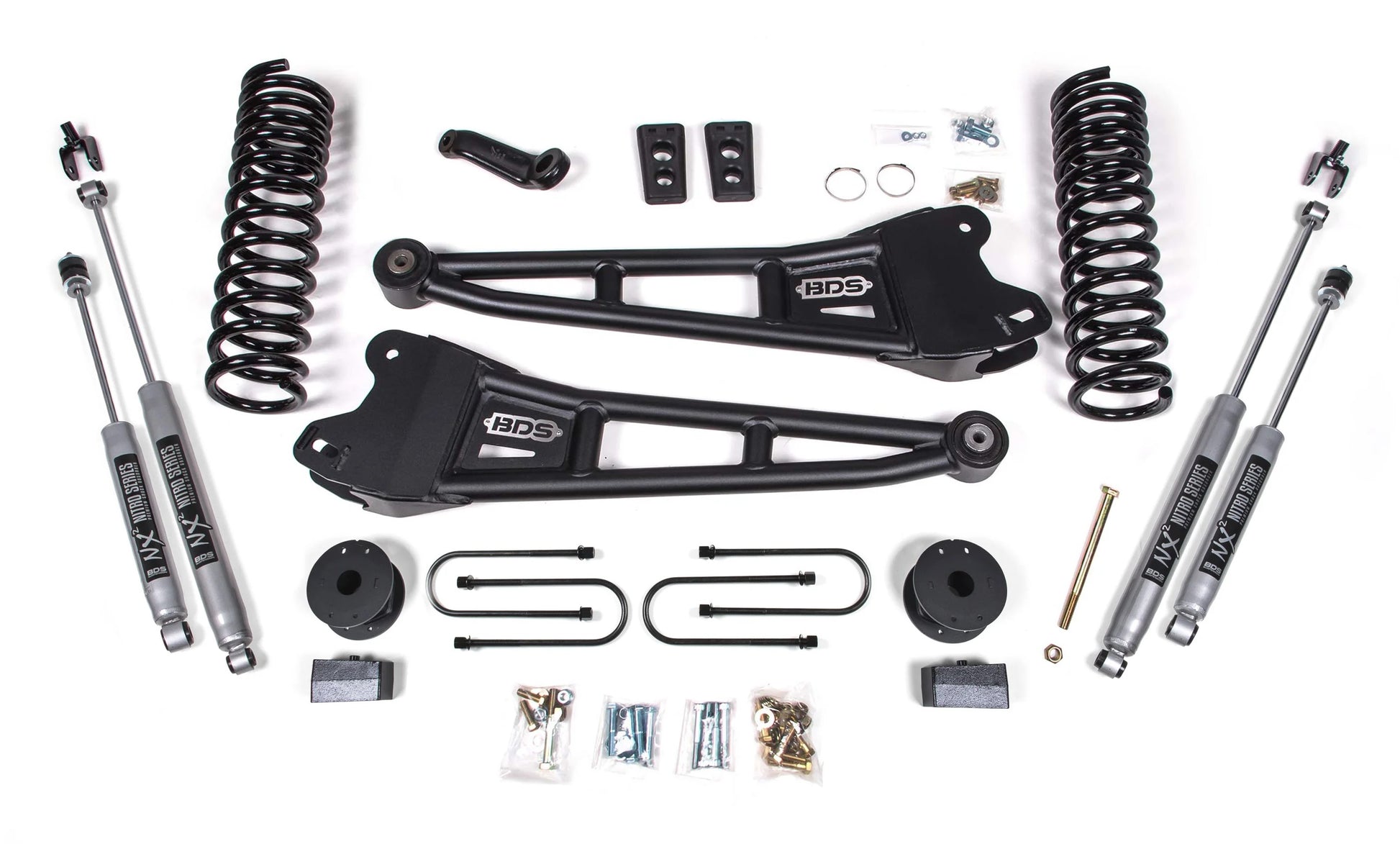

Brand New BDS Suspension 4" Radius Arm Lift Kit with Nitro Shocks & Block Kit (Part #BDS1792H).

Upgrade the ride and style of your 2013-2018 RAM 3500 diesel powered truck equipped with factory rear air ride by installing this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty radius arms, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned shocks. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacer, longer u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Diesel with Rear Air Ride

Notes:

  • The carrier bearing drop is necessary for models equipped with two piece rear drive shaft.
  • Some vehicles may require rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 20 x 9 and 5.625 in. Backspace or 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here, here, and here.
