BDS 2007-2014 GM SUV 4WD,GAS,6" COIL SPRING LIFT KIT,FOX 2.5 COILOVERS

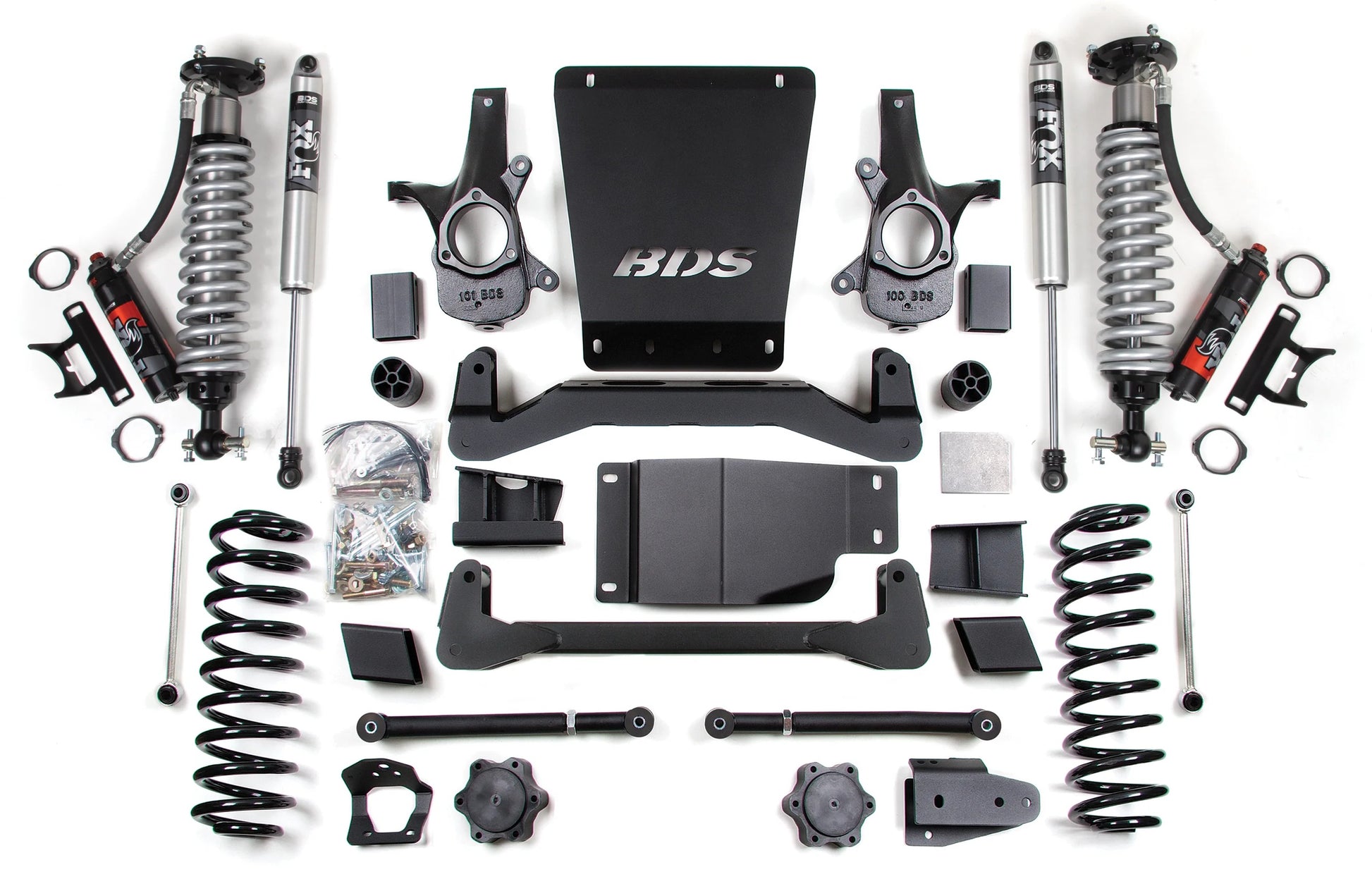

Brand New BDS Suspension 6" Lift Kit with Front FOX 2.5 DSC Coilovers, Rear Fox 2.0 Shocks, & Coil Springs (Part #BDS178PSS).

Take your 2007-2014 Chevy Avalanche, Suburban, or Tahoe and GMC Yukon 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers new Pro-Ride coil springs for on-road ride quality as well as serious off road performance, anti-sway bar links, track bar relocation system, and adjustable upper control arms allowing you to properly adjust pinion angle. Also for the rear are precision tuned shocks.

Fits:

• Chevrolet:

  • 2007-2013 Avalanche 4WD
  • 2007-2014 Suburban 1500 4WD
  • 2007-2014 Tahoe 4WD
• GMC:
  • 2007-2014 Yukon 4WD
  • 2007-2014 Yukon XL 1500 4WD

Notes:

• Will not work with auto-ride equipped vehicles. Minor premature engagement of the StabiliTrak system may occur during certain driving maneuvers.
• Minor frame bracket modification and welding are required.
• 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming.
• Add BDS121651 Auxiliary Differential bracket for AWD models. Also may require front driveline modification.
• Recommended Tires & Wheels (Trimming May Be Required): 34 x 12.5 with 17 x 8 and 4.5 in. Backspace, 34 x 12.5 with 18 x 9 and 5 in. Backspace, or 33 x 12.5 with 20 x 9 and 5.75 in. Backspace

Features:

• Fox 2.5 Shocks designed specifically for increased travel and the ability to soak up the roughest terrain.
• The DSC (dual speed compression) adjuster adds remarkable versatility and precise tuning with a simple twist of one or both knobs.
• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• FOX performance series IFP gas rear shocks to improved ride and off-road performance

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Crossmember & Coilover
• Front Lift Height: 6"
• Rear Lift Method: Coil Spring
• Rear Lift Height: 6"

You can view and download the assembly or instruction booklet here, here, here, and here.
