BDS 2013-2018 RAM 3500 4WD,DIESEL,6" LIFT,LEAF SPRINGS,8-BOLT,FOX 2.0 SHOCKS

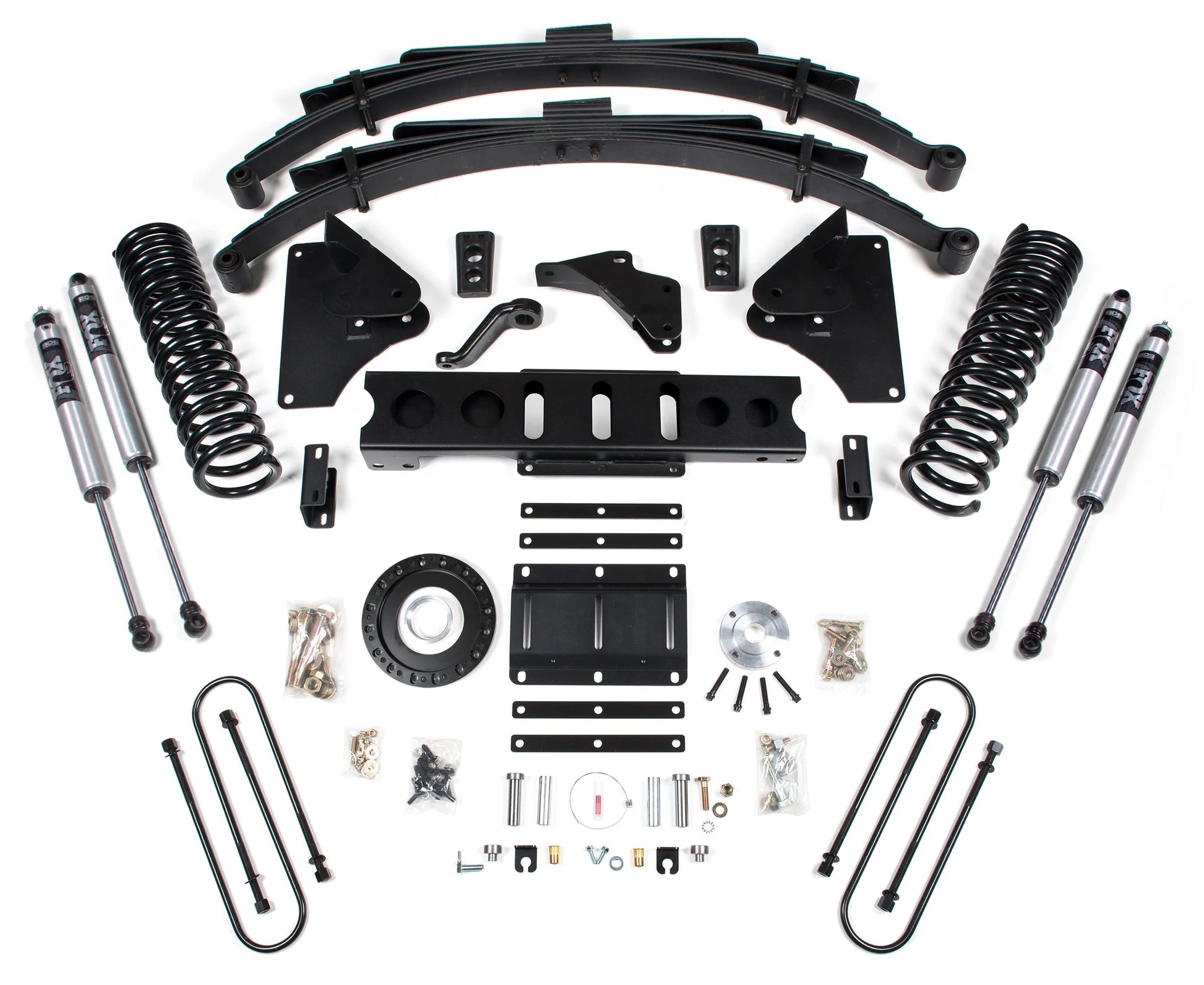

Brand New BDS Suspension 6" Lift Kit with FOX 2.0 Shocks & Leaf Springs (Part #BDS1789FS).

Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block and longer u-bolts.

Fits:

• Ram:

  • 2013-2018 3500 4WD Diesel with 8-Bolt Indexing Ring

Notes:

• Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt). Otherwise, use 6-bolt kit.
• The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.
• The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
• Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension.
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
• Some vehicles may require a rear driveshaft spacer kit 122007 to maintain adequate rear driveshaft engagement.
• Recommended Tires & Wheels (Trimming May Be Required): 37 x 13.5 with 17 x 9 and 5.625 in. Backspace, 37 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

• Heavy duty radius arm drop brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 6"
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 4.5"

You can view and download the assembly or instruction booklet here and here.
