BDS 2007-2013 CHEVY,GMC 1500 4WD 6" LIFT LEAF SPRING KIT W/ FOX 2.0 PERFORMANCE

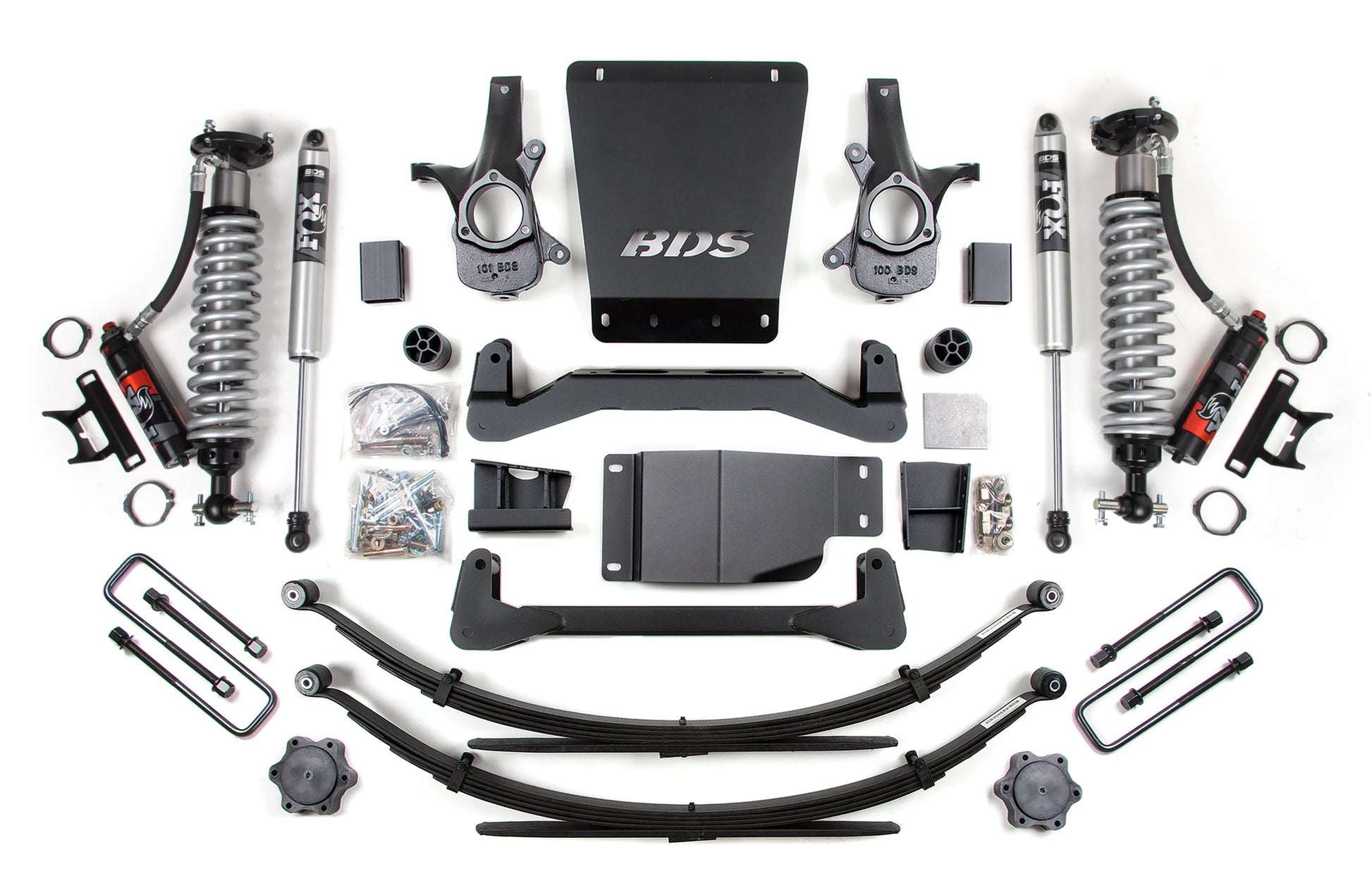

Brand New BDS Suspension 6" Lift Kit with Front FOX 2.5 Coilovers, Rear FOX 2.0 Shocks, & Leaf Springs (Part #BDS177PSS).

Take your 2007-2013 Chevy Silverado and GMC Sierra 1500 to new heights with a BDS 6-inch lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes full length replacement strut shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it. In the rear BDS offers both replacement lift block and full Glide-Ride leaf spring options to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and brake line brackets.

Compatible with:

• Chevrolet:

  • 2007-2013 Silverado 1500 4WD
• GMC:
  • 2007-2013 Sierra 1500 4WD

Notes:

• This system will not fit 2007 classic models

• Installation of rear leaf springs requires removal of the fuel tank

• Requires frame bracket modification

• 20" wheels with 5" to 5-3/4" backspacing recommended to reduce trimming. Traction bars will not fit regular cab short box models.

• Add BDS121651 Auxiliary Differential support bracket for AWD models. Also may require front driveline modification.

• Will not fit two-mode hybrid models with electronic power steering.

• Stock 20" wheels can be re-installed only with factory tire size.

• Factory 17 and 18's cannot be re-installed.
• Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 17 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5.75 in. Backspace

Features:

• Fox 2.5 Shocks designed specifically for increased travel and the ability to soak up the roughest terrain.

• The DSC (dual speed compression) adjuster adds remarkable versatility and precise tuning with a simple twist of one or both knobs.

• High clearance crossmember design maximizes ground clearance Robust steering knuckles maintain ESC system compliance

• HD skid plate system improved off-road protection

• Multipoint differential relocation brackets to secure the front axle and improve CV angles

• FOX performance series IFP gas rear shocks to improved ride and off-road performance

FOX 2.0 Performance Series (Rear):

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Crossmember & Coilover
• Front Lift Height: 6"

• Rear Lift Method: Blocks & Add-A-Leaf
• Rear Lift Height: 4.5"

You can view and download the assembly or instruction booklet here and here.
