BDS 2013-2018 RAM 3500 4WD,DIESEL,4" LIFT KIT,2" REAR BLOCK,NITRO SHOCKS
BDS 2013-2018 RAM 3500 4WD,DIESEL,4" LIFT KIT,2" REAR BLOCK,NITRO SHOCKS
SKU:STU BDS1778H
Couldn't load pickup availability

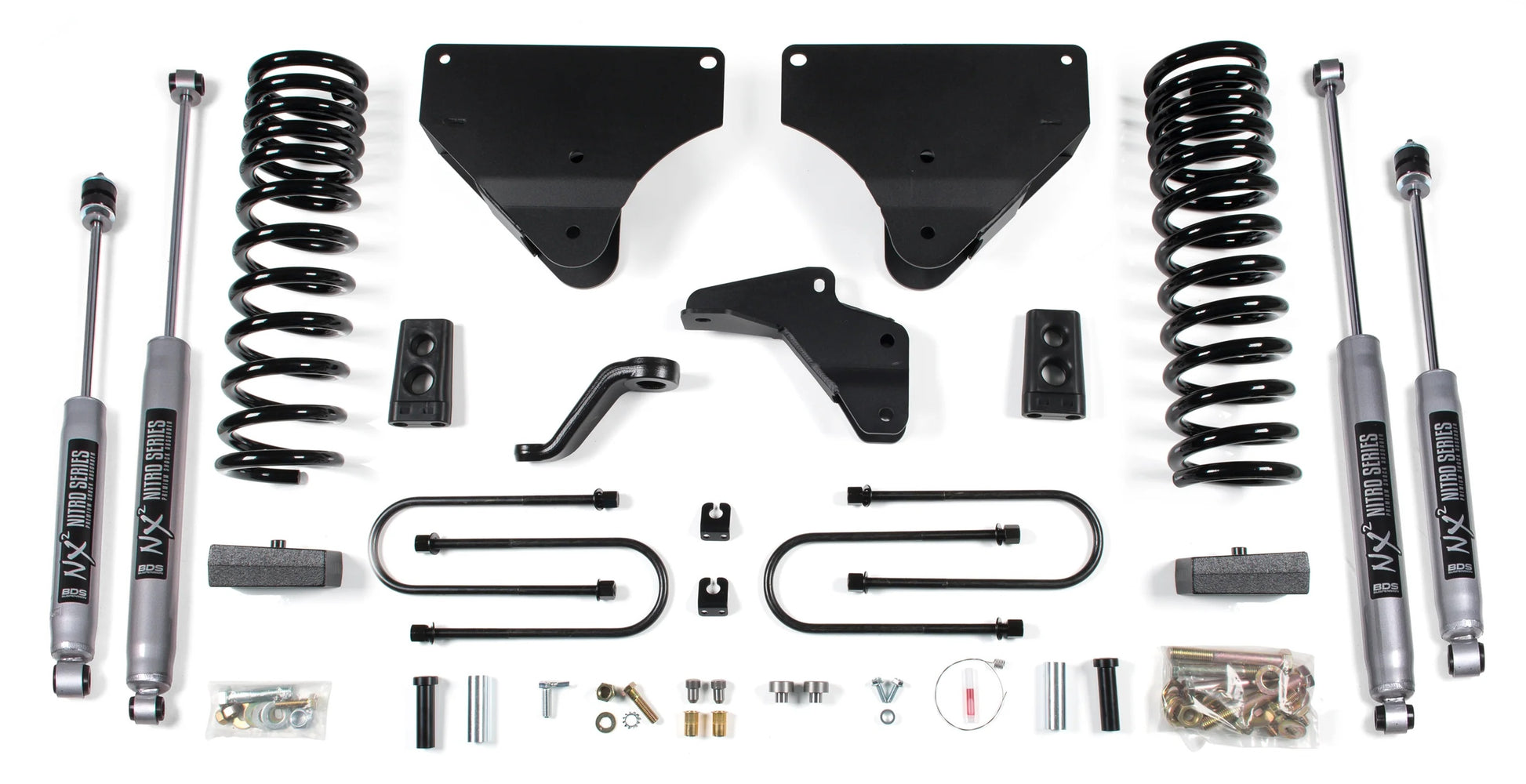

Brand New BDS Suspension 4" Lift Kit with Nitro Shocks & 2" Block Kit (Part #BDS1778H).
Improve the ride and style of your 2013-2018 RAM 3500 diesel powered truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, radius arms drop brackets, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.
Fits:
- Ram:
- 2013-2018 3500 4WD Diesel
Notes:
- The carrier bearing drop kit is necessary for models equipped with two piece rear drive shaft.
- 2 Inch Block Kit - Level to slightly low rear stance
- 3 Inch Block Kit - Slightly tail-high rear stance.
- Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5.625 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
Features:
- Heavy duty radius arm drop brackets maintain proper suspension geometry
- Front high strength progressive rate coil springs for a great ride on any terrain
- Front track bar relocation bracket to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
NX2 Nitro Series:
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
Specs:
- Front Lift Method: Coil Spring
- Front Lift Height: 4"
- Rear Lift Method: Block
- Rear Lift Height: 2"
