BDS 2013-2018 RAM 3500 4WD,DIESEL,4" 4-LINK LIFT,6-BOLT,HYDRO BUMP,FOX 2.5

BDS 2013-2018 RAM 3500 4WD,DIESEL,4" 4-LINK LIFT,6-BOLT,HYDRO BUMP,FOX 2.5

STU BDS1776PESB

$7,385.60
$7,385.60
View full details

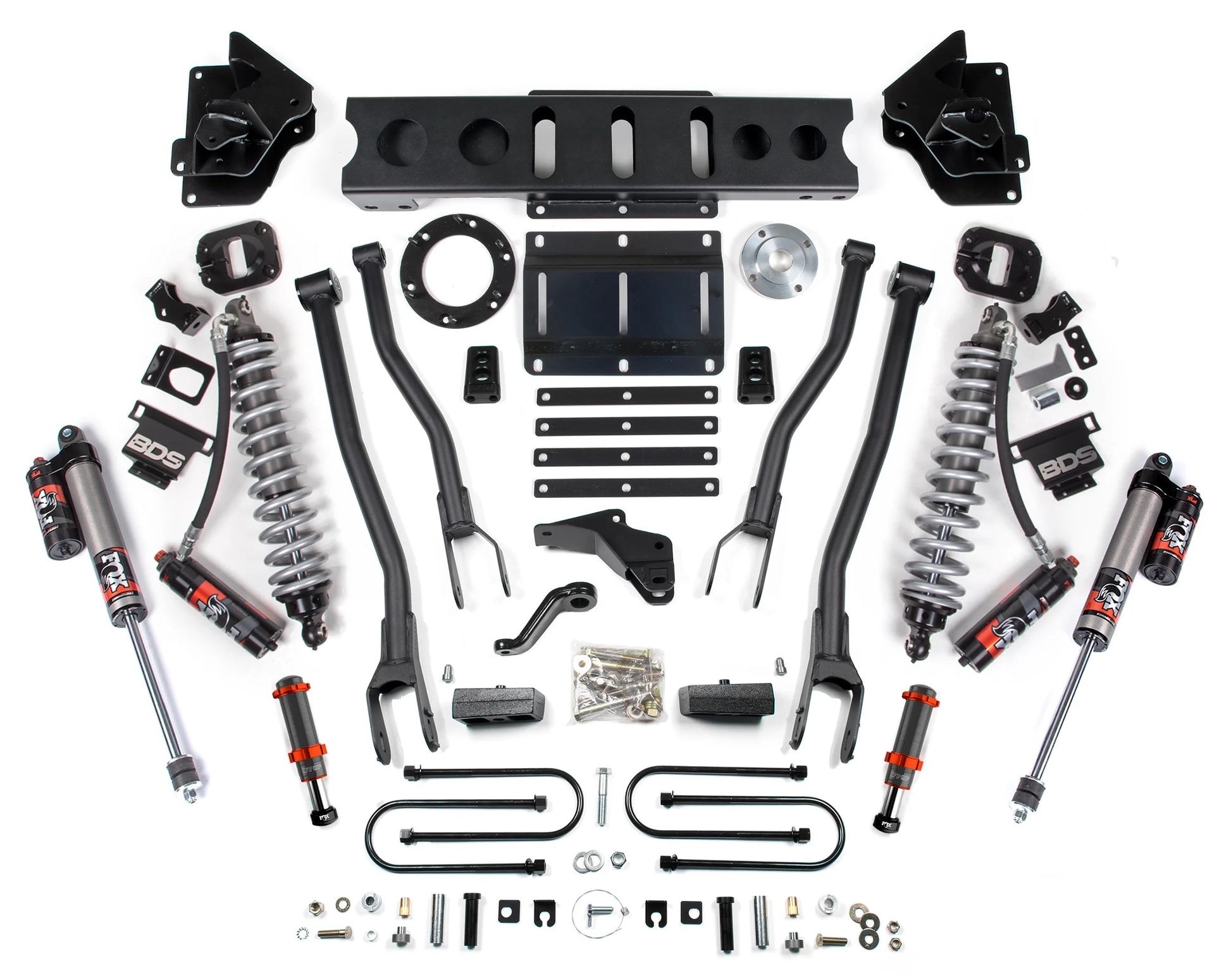

Brand New BDS Suspension 4" Lift Kit with Fox 2.5 Performance Elite Shocks, 4-Link, Fox 2.0 Hydro Bump Stop, & 2" Block Kit (Part #BDS1776PESB).

Built to take abuse and ask for more, the BDS 4" 4-Link Lift Kit for RAM 3500 trucks is the ultimate upgrade for those who demand performance, strength, and full-send capability. This kit ditches the stock setup and replaces it with serious hardware, starting with heavy-duty BDS 4-Link arms for better articulation and rugged strength to handle anything the trail throws at you.

Up front, the game changes completely with the BDS Coilover Conversion Kit, outfitted with FOX Performance Elite coilovers giving you next-level control, plush ride quality, and precision damping both on and off the road. Out back, FOX Performance Elite shocks keep things smooth and controlled, no matter how gnarly the terrain gets.

Whether you’re crawling rocks, hauling gear, or just turning heads in the parking lot, this kit is designed to deliver performance you can feel and durability you can count on.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Diesel with 6-Bolt Indexing Ring

Notes:

  • Kits come standard with 6-Bolt indexing ring kit.
  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt). Use kit #BDS2130.
  • The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.
  • Will not fit air ride equipped models
  • Diesel models only
  • Must be used with an aftermarket front drive shaft due to increased wheel travel.
  • The carrier bearing drop is necessary for models equipped with the two-piece rear drive shaft.
  • Some vehicles may require a rear driveshaft spacer kit BDS122007 to maintain adequate rear driveshaft engagement
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 20 x 9 and 5 in. Backspace, or 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Fox 2.5 Performance Elite Coil over mounts in the factory coil spring bucket.
  • Fox 2.5 Performance Elite rear shocks.
  • Optional Auxiliary front shock absorber.
  • Heavy Duty tubular steel 4-Link arms which correct caster while maximizing ground clearance.
  • Front adjustable track bar which allows the front of the truck to be re-centered after lifted.
  • Front sway bar correction to maintain handling performance.

FOX 2.0 Factory Race Series Hydro Bump Stop:

  • Engineered to perform in the roughest terrain, the FOX 2.0 Hydraulic Bump stops provide one more layer of shock absorption when utilizing the full travel of your suspension.
  • Ideal for the avid offroader who hits big obstacles and goes over rough terrain at speed to maintain comfort and control.

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 2"
You can view and download the assembly instruction booklet here, here, here, and here.
