BDS 2013-2018 RAM 3500 4WD,DIESEL,4" 4-LINK LIFT,2" REAR BLOCK,FOX 2.5 SHOCKS

BDS 2013-2018 RAM 3500 4WD,DIESEL,4" 4-LINK LIFT,2" REAR BLOCK,FOX 2.5 SHOCKS

STU BDS1776FPE

$5,353.70
$5,353.70
View full details

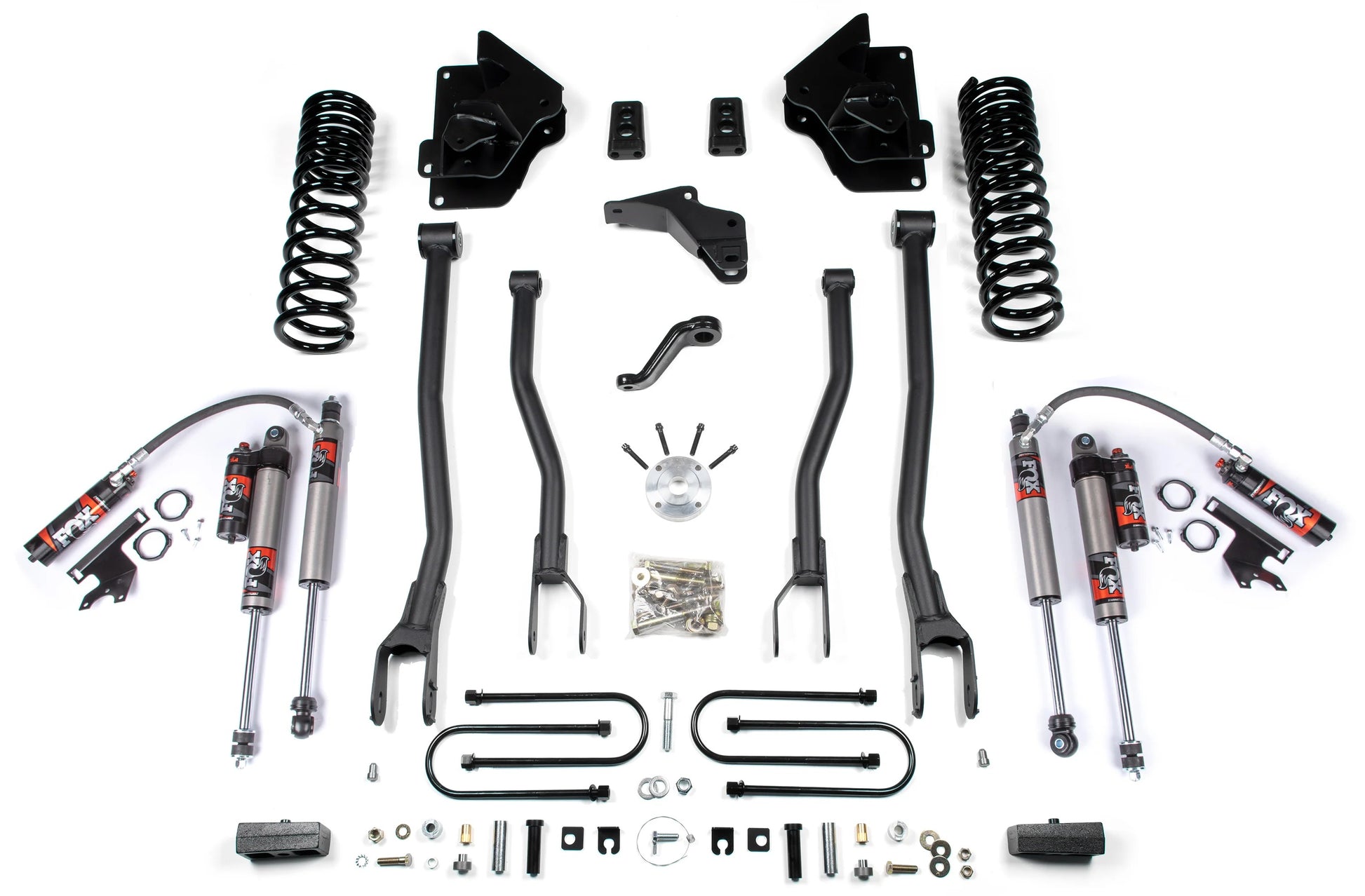

Brand New BDS Suspension 4" Lift Kit with Fox 2.5 Performance Elite Shocks, 4-Link, & 2" Block Kit (Part #BDS1776FPE).

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your 2013-2018 RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2013-2018 3500 4WD Diesel

Notes:

  • The carrier bearing drop kit is necessary for models equipped with two piece rear drive shaft.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5.625 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, or 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 2"
You can view and download the assembly instruction booklet here and here.
