BDS 2014-2018 RAM 2500 4WD,GAS,4" RADIUS LIFT,REAR AIR RIDE,NITRO SHOCKS

BDS 2014-2018 RAM 2500 4WD,GAS,4" RADIUS LIFT,REAR AIR RIDE,NITRO SHOCKS

STU BDS1774H

$1,806.60
$1,806.60
View full details

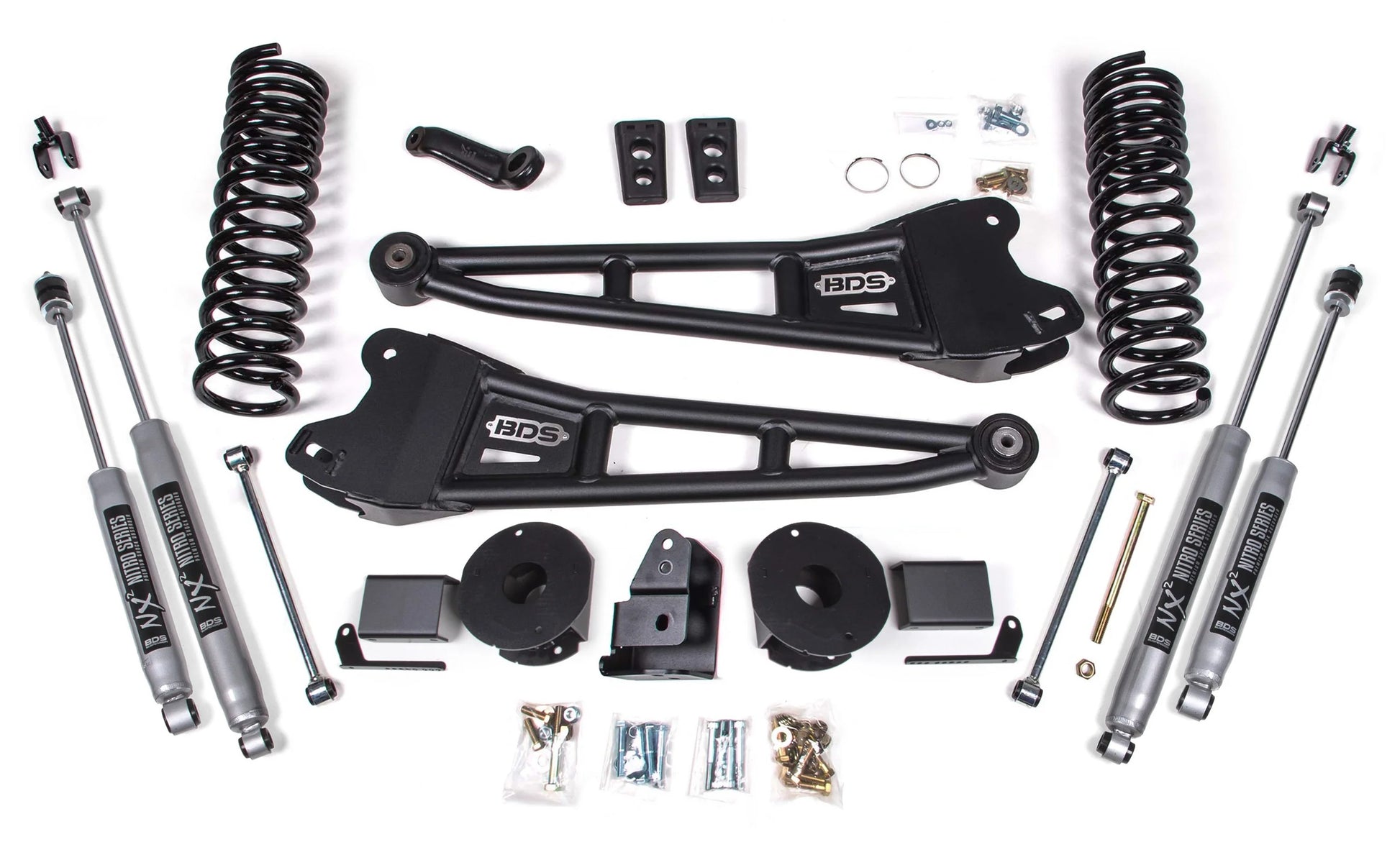

Brand New BDS Suspension 4" Lift Kit with Nitro Shocks, Radius Arms, & Coil Springs (Part #BDS1774H).

Take your 2014-2018 RAM 2500 gas powered truck, equipped with factory rear air ride, to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned shocks. In the rear this kit utilizes heavy duty air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of shocks. BDS also supplies new air ride leveling sensor brackets to re-position the ride height sensors allowing it to perform just like it does at factory ride height and maintain full air bag range of motion.

Fits:

  • Ram:
    • 2014-2018 2500 4WD Gas with Rear Air Ride

Notes:

  • 6.4L Gas models will require exhaust modification to clear the front driveshaft and potentially the passenger's 4-link bracket.
  • 5.7L Gas models may require modification - but not in all cases.
  • The vehicle can be driven without the front driveshaft to an exhaust shop for modification and reinstalled after modification.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 20 x 9 and 4.5 in. Backspace or 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

NX2 Nitro Series:



  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Spacer
  • Rear Lift Height: 2.5"

You can view and download the assembly instruction booklet here, here, and here.
