BDS 2014-2018 RAM 2500 4WD,DIESEL,4" RADIUS LIFT,REAR AIR RIDE,FOX 2.0 SHOCKS

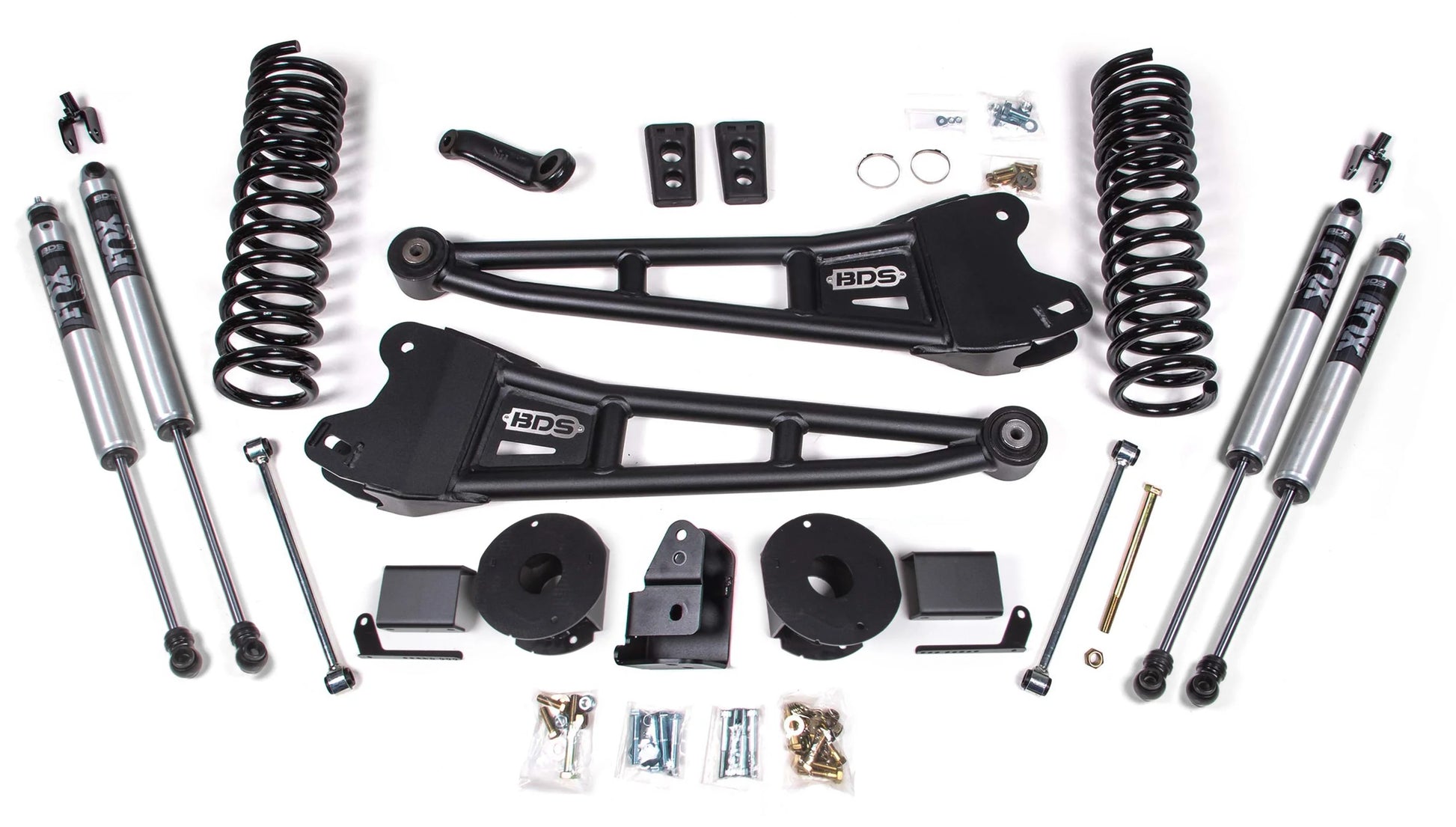

Brand New BDS Suspension 4" Radius Arm Lift Kit with FOX 2.0 Performance Shocks & Coil Springs (Part #BDS1773FS).

Take your 2014-2018 RAM 2500 diesel powered truck, equipped with factory rear air ride, to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned shocks. In the rear this kit utilizes heavy duty air bag spacers, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of shocks. BDS also supplies new air ride leveling sensor brackets to re-position the ride height sensors allowing it to perform just like it does at factory ride height and maintain full air bag range of motion.

Fits:

• Ram:
  • 2014-2018 2500 Diesel 4WD with Rear Air Ride

Note:

• For OE Air Ride systems only
• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 20 x 9 and 4.5 in. Backspace or 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Features:

• Heavy duty tubular radius arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 4"
• Rear Lift Method: Spacer
• Rear Lift Height: 2.5"

You can view and download the assembly instruction booklet here and here.
