BDS 2009-2013 RAM 2500 POWERWAGON 4WD,4" LIFT,LONG ARM,BLOCK,3.5" AXLE,FOX 2.0

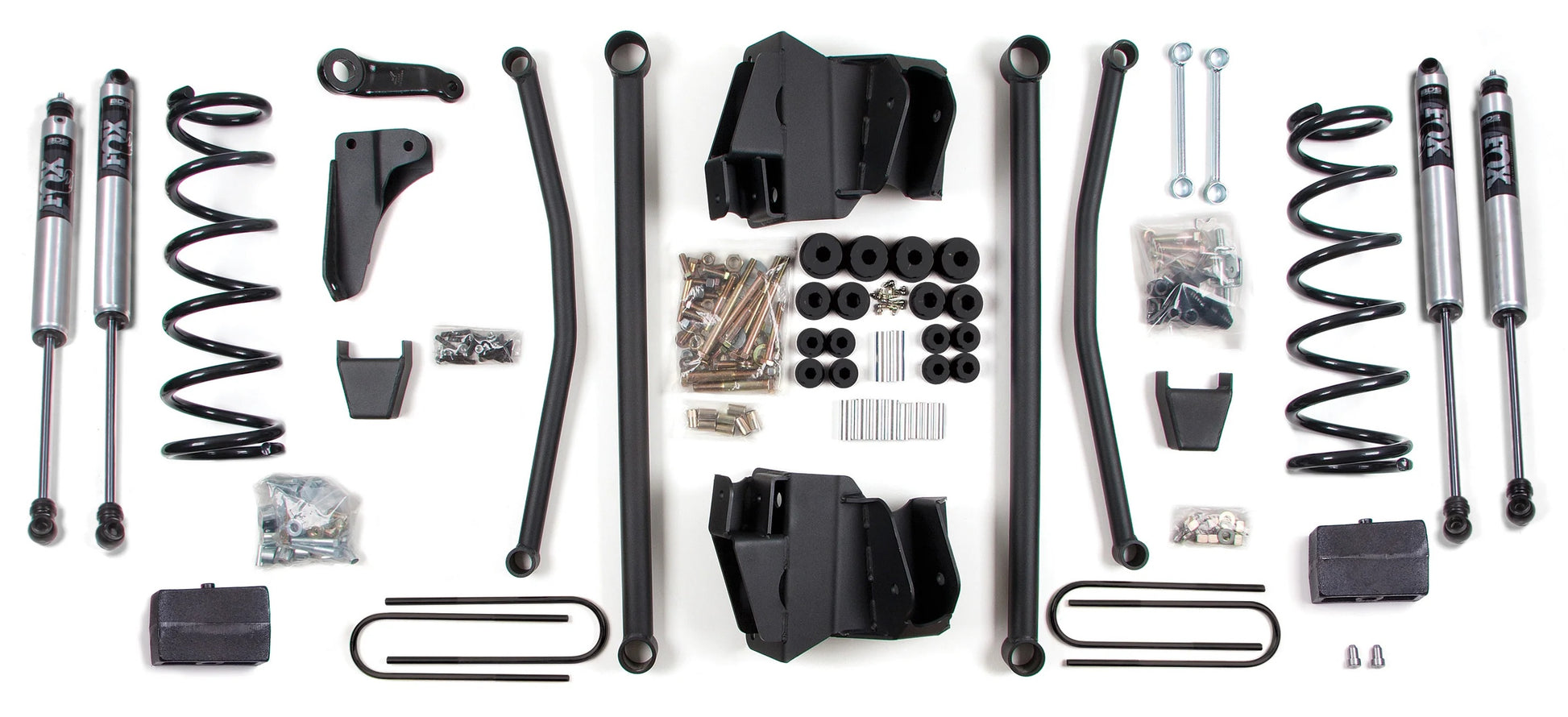

Brand New BDS Suspension 4" Lift Kit with FOX 2.0 Performance Shocks, Long Arms, & Block Kit (Part #BDS1771FS).

Built to outperform, BDS Suspension engineered a 4-inch lift kit with long arm conversion for your 2009-2013 Dodge RAM 2500 Power Wagon that maximizes performance on and off road. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. BDS built the long lower control arms to reduce caster change through wheel travel which creates a more controlled feeling in the steering wheel. This long arm long arm system retains the factory triangulation of the arms which adds to the stability of the suspension system.

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus mounting bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of shocks.

Fits:

• Dodge:
  • 2009-2010 Ram 2500 Power Wagon 4WD with 3.5" Rear Axle
• Ram:
  • 2011-2013 2500 Power Wagon 4WD with 3.5" Rear Axle

Note:

• These vehicle were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2" or 4" in diameter.
• 102009 rear brake line will not fit 2012 or newer models.
• Depending on the factory transmission mount, some 4" kits may require the transfer case indexing kit if a driveline vibration persists. See installation instructions for details.
• Recommended Tires & Wheels (Trimming may be required): 36 x 12.5 with 17 x 9 and 5 in. Backspace

Features:

• Tubular long arms reduce caster change and create more controlled feeling on and off road
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 4"
• Rear Lift Method: Block
• Rear Lift Height: 4"

You can view and download the assembly instruction booklet here and here.
