BDS 2005-2007 RAM 2500 POWERWAGON,4" LIFT KIT,4" AXLE,LEAF SPRINGS,NITRO

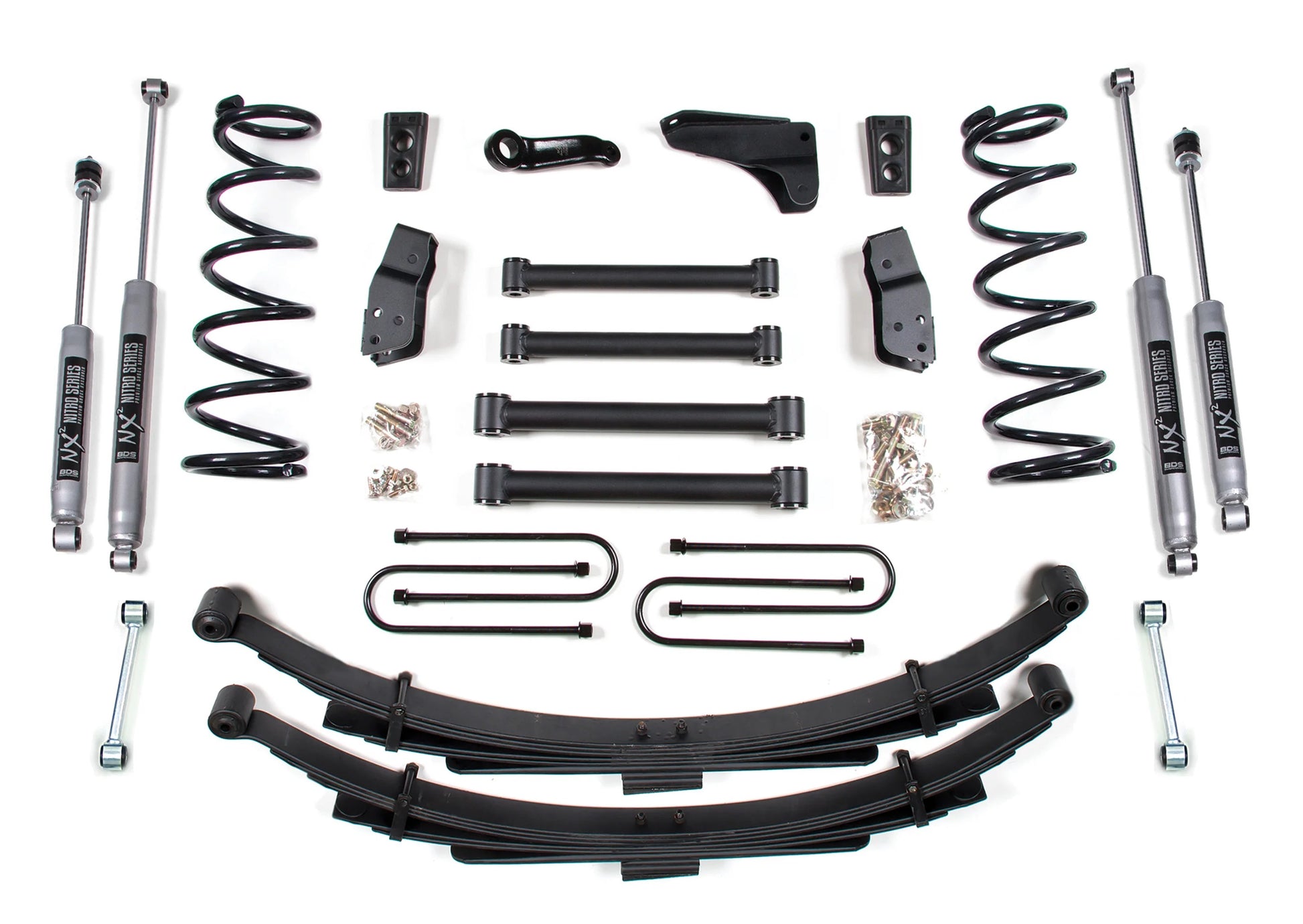

Brand New BDS Suspension 4" Lift Kit with Nitro Shocks & Leaf Springs (Part #BDS1764H).

Improve the ride and style of your 2005-2007 Dodge RAM 2500 Power Wagon truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36" tires. BDS engineered new lower control arms are longer than stock to rotate the axle for proper alignment and built a relocation mounting bracket to flatten out the angle of the upper control arm to maintain your factory handling characteristics.

Up front the lift kit includes gas-specific Pro-Ride coil springs, all four control arms plus relocation bracket, forged drop pitman arm and track bar bracket for steering correction, bump stops, sway bar links, and precision tuned shocks. In the rear this kit utilizes heavy duty cast steel blocks, longer u-bolts, and a matching set of shocks.

Fits:

• Dodge:
  • 2005-2007 Ram 2500 Power Wagon 4WD with 4" Rear Axle


Note:

• These vehicle were manufactured with two different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2" or 4" in diameter.
• May require exhaust modification to clear the front driveshaft at full droop.
• If your truck has had the steering gear box changed and the sector shaft diameter measures ~1-1/2"-1-5/8" you will need to add part # BDS082404 to your kit.
• Recommended Tires & Wheels (Trimming may be required): 36 x 12.5 with 17 x 9 and 5 in. Backspace

Features:

• Tubular short arms improve strength, handling and caster control
• Heavy duty control arm brackets maintain proper suspension geometry
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 4"
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 4"

You can view and download the assembly instruction booklet here and here.
