BDS 2014-2018 RAM 2500 4WD,DIESEL,4" RADIUS ARM LIFT KIT,SPRINGS,NITRO SHOCKS

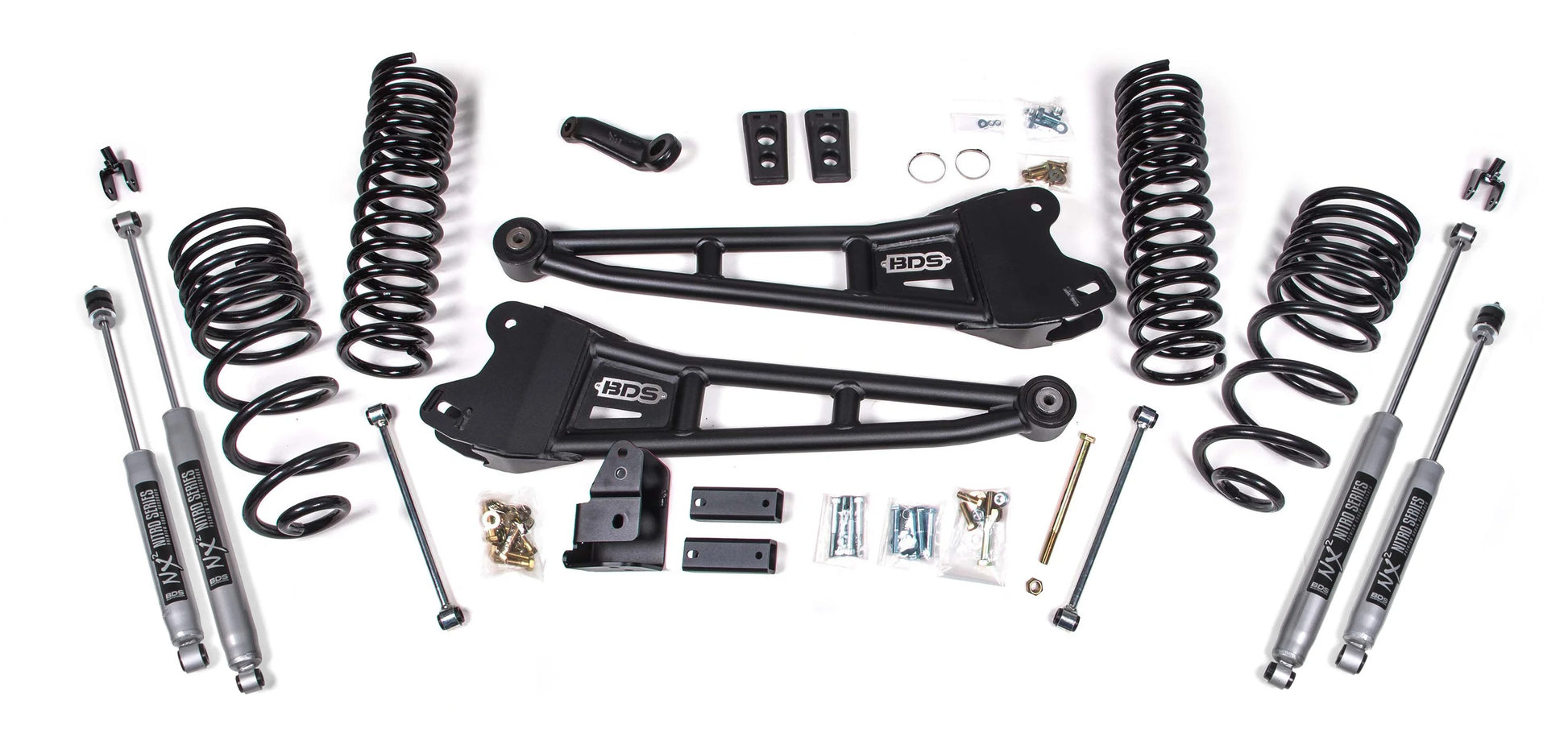

Brand New BDS Suspension 4" Radius Arm Lift Kit with Nitro Shocks & Coil Springs (Part #BDS1762H).

Take your 2014-2018 RAM 2500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned shocks. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of shocks.

Fits:

• Ram:
  • 2014-2018 2500 Diesel 4WD

Note:

• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 20 x 9 and 4.5 in. Backspace or 35 x 12.5 with 20 x 9 and 5.625 in. Backspace

Features:

• Heavy duty tubular radius arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 4"
• Rear Lift Method: Coil Spring
• Rear Lift Height: 2.5"

You can view and download the assembly instruction booklet here and here.
