BDS 2019-2024 RAM 1500 REBEL 4WD,3" LIFT KIT,STANDARD KNUCKLE,FOX 2.5,FOX 2.5

BDS 2019-2024 RAM 1500 REBEL 4WD,3" LIFT KIT,STANDARD KNUCKLE,FOX 2.5,FOX 2.5

STU BDS1761FPE

$5,705.60
$5,705.60
View full details

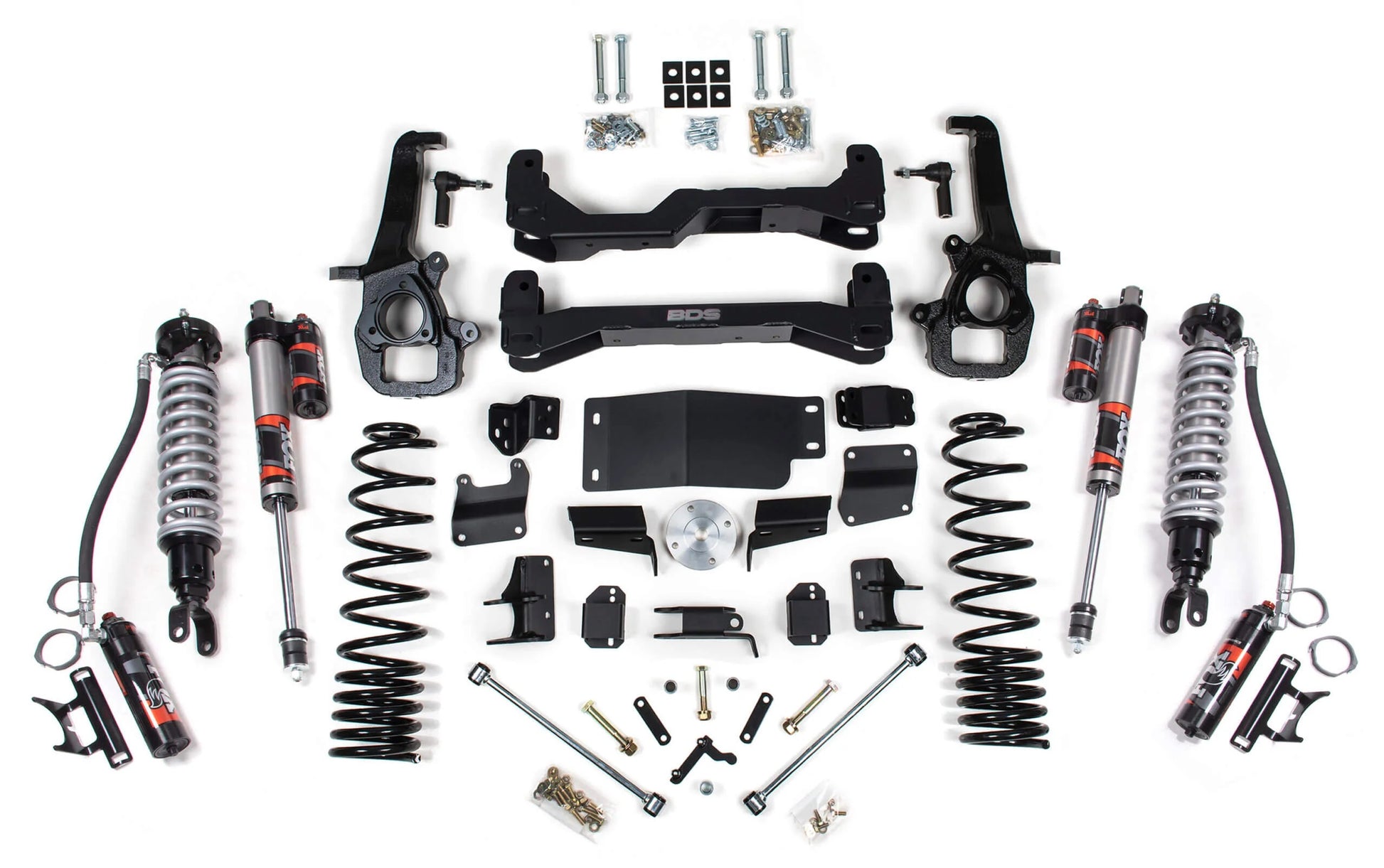

Brand New BDS Suspension 3" Lift Kit with Fox 2.5 Performance Elite Coilovers, Fox 2.5 Shocks, & Coil Springs (Part #BDS1761FPE).

Hit the trails in your 2019-2024 RAM 1500 Rebel truck after installing a 3-inch coilover suspension lift kit featuring FOX 2.5 Performance Elite Coilover shocks by BDS Suspension. These kits feature proprietary FOX 2.5 coilover shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes FOX 2.5 coilover shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with a set of FOX gas shocks to offer improved damper performance.

Fits:

  • Ram:
    • 2019-2024 1500 Rebel 4WD Gas

Notes:

  • Fits 4WD models only
  • Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size
  • RAMs with factory 22" wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
  • Will NOT fit adjustable "air ride" suspension equipped models.
  • Standard Ram 1500 achieves 4in of lift with this kit. Rebel and Offroad package trucks achieve 3in of lift due to being 1in taller from the factory.
  • Will NOT work on diesel models
  • Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
  • Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines mounted as circled in image below.
  • If using 18in wheels with maximum recommended backspacing, test fit wheels on vehicle before mounting tires to ensure clearance.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 20 x 9 and 5 in. Backspace or 35 x 12.5 with 18 x 9 and 5 in. Backspace

Features:

  • FOX 2.5 shocks designed specifically for increase travel and the ability to soak up the roughest terrain
  • DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved off-road protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Crossmember
  • Front Lift Height: 3"
  • Rear Lift Method: Coil Spring
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here.
