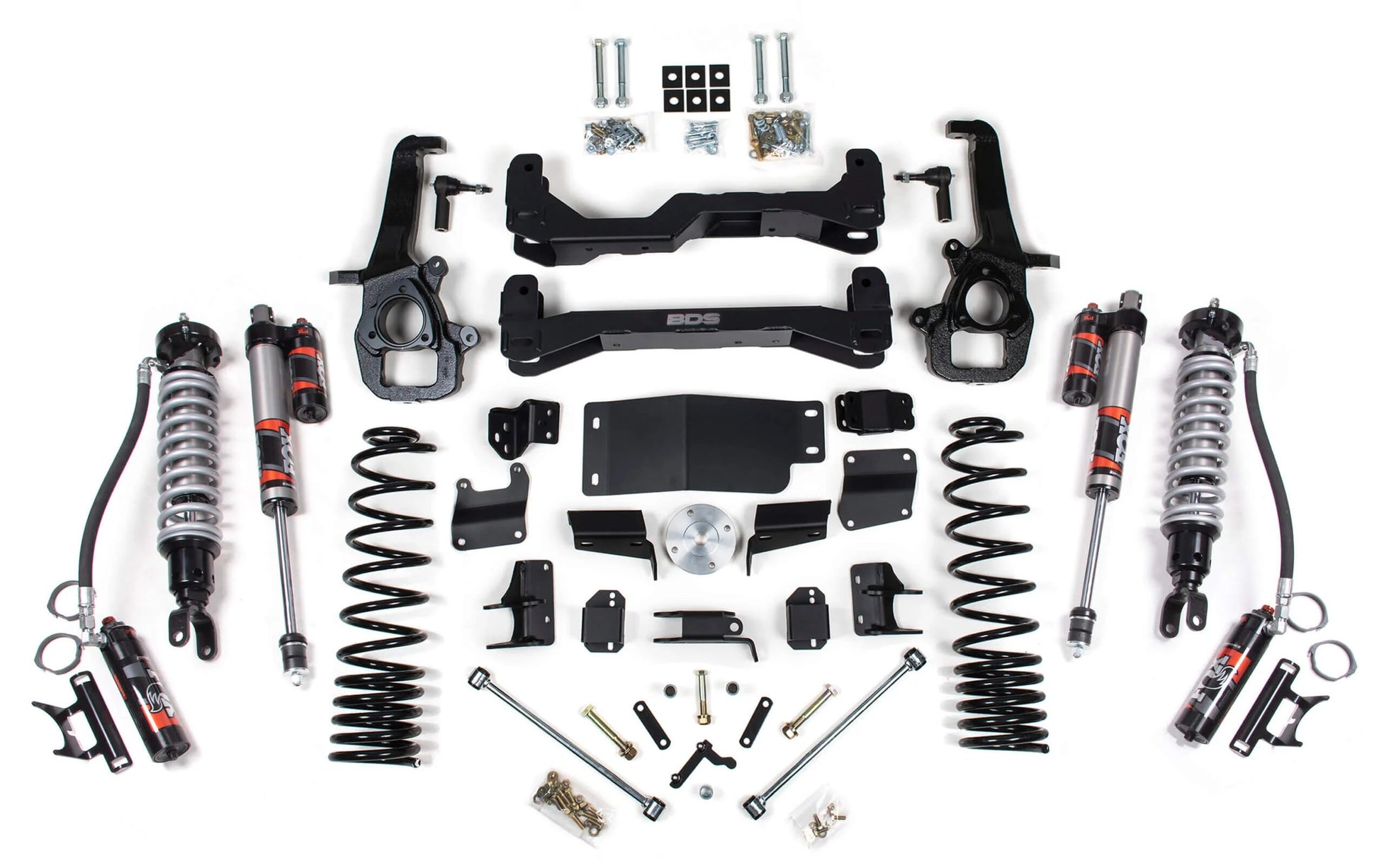

Hit the trails in your 2019-2024 RAM 1500 truck after installing a 6-inch coil-over suspension lift kit featuring FOX 2.5 Performance Elite Coilover shocks by BDS Suspension. These kits feature proprietary FOX 2.5 coilover shocks designed for bolt-on performance, increased travel, and the ability to soak up the roughest terrain while maintaining smooth on-road comfort. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This kit leverages BDS's proven high-clearance design to improve ground clearance, strength, and off-road protection, while correcting suspension and steering geometry for excellent on-road handling.
Up front, the kit utilizes FOX 2.5 coilover shocks, high-arched 1/4-inch-thick steel crossmembers, multipiece differential relocation brackets, and heavy-duty skid plates built for off-road protection. Steering geometry is corrected at the new, taller ride height using CNC-machined ductile iron steering knuckles and replacement tie rod ends, ensuring ESC system compatibility. These, combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware, and more, provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear, this kit utilizes progressive-rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, a track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits is rounded out with a set of FOX 2.5 performance-series gas shocks to improve damper performance.
