BDS 2009-2011 RAM 1500 4WD,4" LIFT KIT,2" COIL SPACER,NITRO SHOCKS

BDS 2009-2011 RAM 1500 4WD,4" LIFT KIT,2" COIL SPACER,NITRO SHOCKS

STU BDS1750H

$2,465.65
$2,465.65
View full details

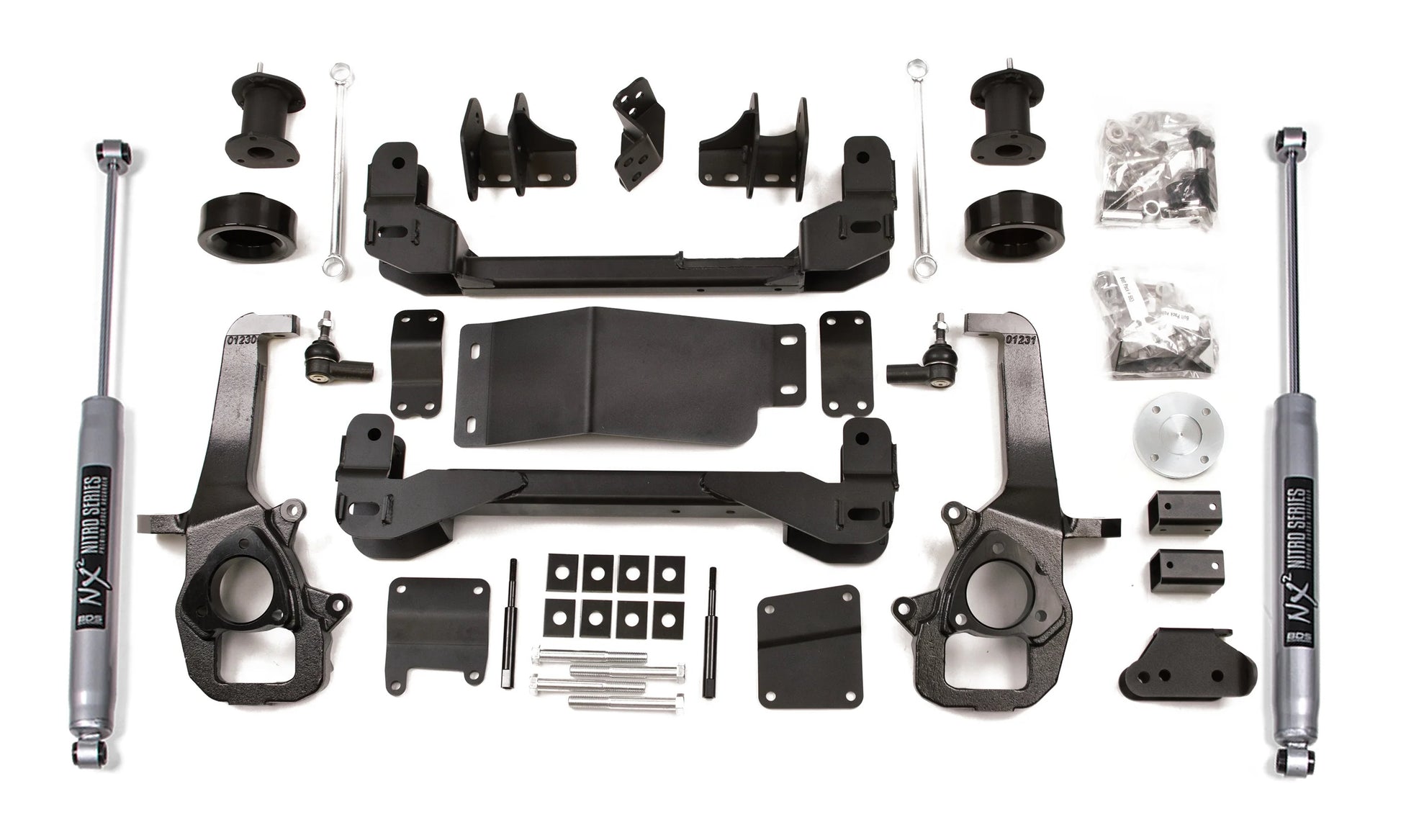

Brand New BDS Suspension 4" Lift Kit with Nitro Shocks & 2" Coil Spacer (Part #BDS1750H).

BDS steps up the performance and capability of the 2009-2011 Dodge RAM 1500 4WD trucks with a 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Fits:

  • Dodge:
    • 2009-2011 Ram 1500 4WD

Notes:

  • These trucks can vary from 1" to 3" tail high from the factory. Be sure to measure your vehicle before ordering. Part numbers 022209, 022309 and 022509 can all be substituted to achieve the desired stance.
  • The Rack and Pinion steering system is extremely sensitive to an out-of-round or out-of-balance tire/wheel combination. As you increase the tire diameter and/or decrease the wheel backspacing the more sensitive the system becomes and can cause minor steering wheel shimmy.
  • Not recommended for AWD models.
  • Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be reinstalled with factory tires.
  • This kit is FMVSS No.126 Compliant
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved off-road protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Crossmember
  • Front Lift Height: 4"
  • Rear Lift Method: Coil Spacer
  • Rear Lift Height: 2"

You can view and download the assembly instruction booklet here and here.
