BDS 2019-2025 RAM 1500 4WD 2" LEVELING KIT WITH FOX 2.5 ELITE COILOVERS

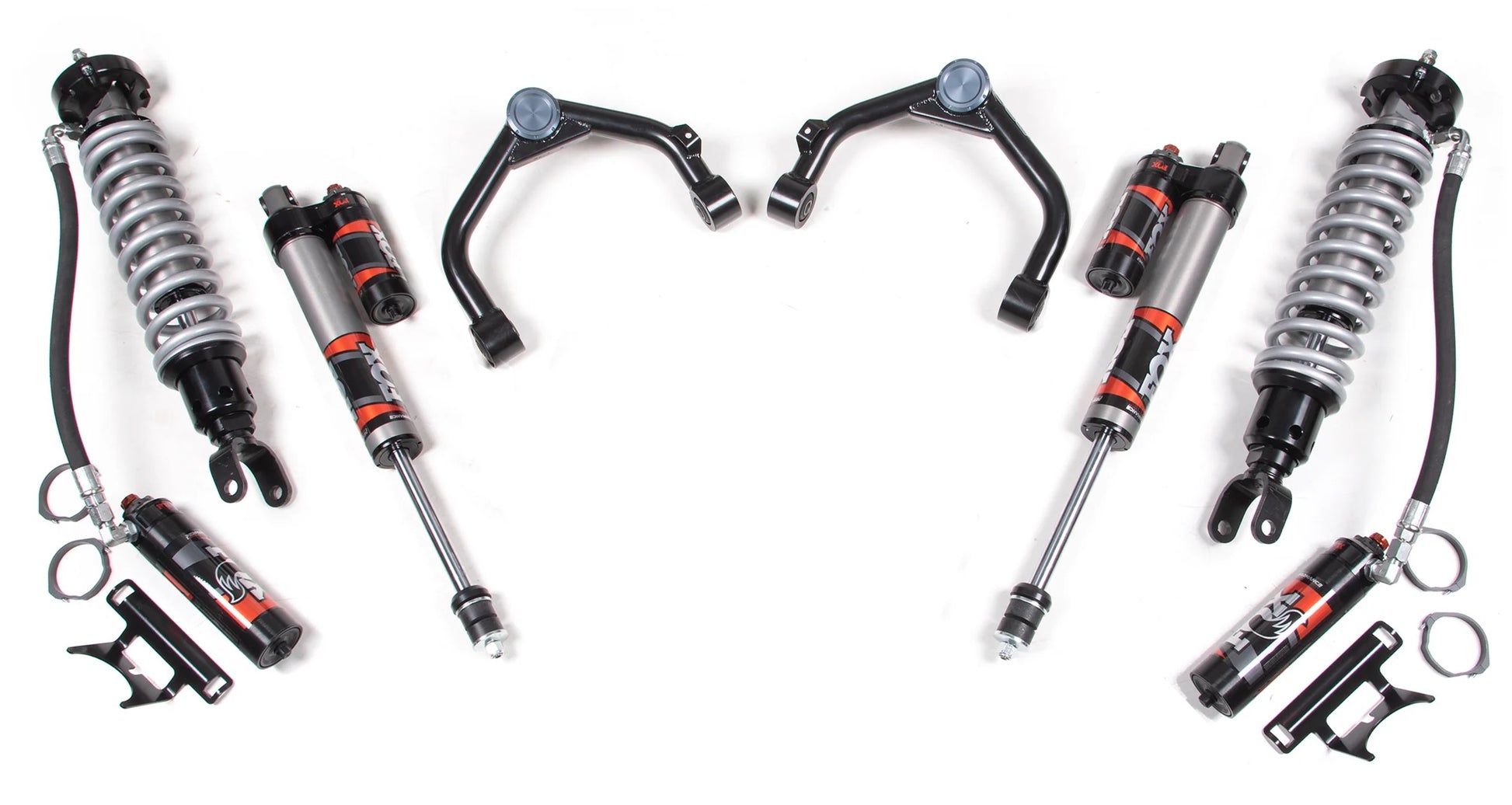

Brand New BDS Suspension 2" Leveling Kit with Front FOX 2.5 Coilovers & Rear FOX 2.5 Shocks (Part #BDS1740FPE).

Up the ante in your 2019-2025 RAM 1500 4WD truck with style and performance by installing this 2-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.5 Performance Elite shocks for the smoothest ride.

Compatible with:

• Ram:

  • 2019-2025 1500 4WD


Notes:

• Fits 4WD models only

• Vehicles equipped with "Offroad or Rebel Package" will not achieve full 2" of lift, net ride height change will be around 1" above stock.

• Will not fit vehicle equipped with factory Air Ride.

• Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.

• 2025 Ram 1500 Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance.
• Recommended Tires & Wheels (Trimming May Be Required): 33 x 12.5 with 20 x 9 and 4.5 in. Backspace or 295 / 65 with 20 x 9 and 5 in. Backspace

Features:

• FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock

• DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain

• Performance UCAs increase strength and allow for more suspension travel


FOX 2.5 Performance Elite Series:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 2"

• Rear Lift Method: Stock
• Rear Lift Height: 0"

You can view and download the assembly or instruction booklet here.
