BDS 2019-2024 RAM 3500 4WD,DIESEL,6" 4-LINK LIFT,AIR RIDE,6-BOLT,FOX 2.0 SHOCKS

BDS 2019-2024 RAM 3500 4WD,DIESEL,6" 4-LINK LIFT,AIR RIDE,6-BOLT,FOX 2.0 SHOCKS

STU BDS1732FS

$3,225.05
$3,225.05
View full details

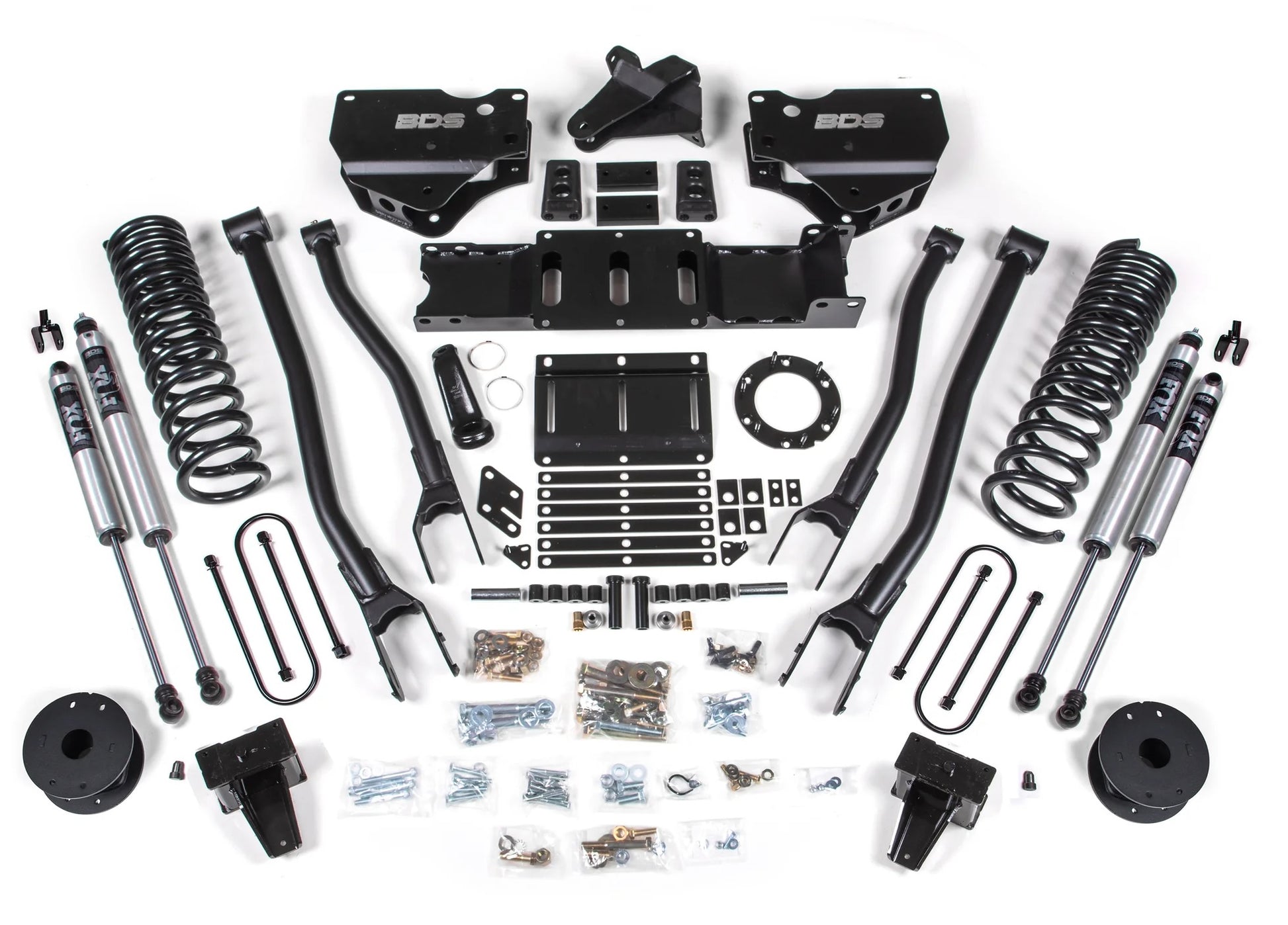

Brand New BDS Suspension 6" Lift Kit with Fox 2.0 Performance Shocks, 4-Link, & Coil Springs (Part #BDS1732FS).

Up the ante of your RAM 3500 diesel truck equipped with factory rear air ride to the next level with this 6-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes high strength steel lift blocks along with add-a-leaf springs, heavy duty air bag spacers, u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2024 3500 4WD Diesel with Rear Air Ride

Notes:

  • Kits come standard with 6-Bolt indexing ring kit.
  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt). Use kit #BDS1733.
  • The 8-bolt kit also includes an internal shaft seal extension and new shaft seal.
  • Fits OE equipped air ride systems only
  • Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Mega Cabs with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  • Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 20 x 9 and 4.5 in. Backspace, 37 x 13.5 with 18 x 9 and 5.625 in. Backspace, or 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 6"
  • Rear Lift Method: Block
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here and here.
