BDS 2019-2024 RAM 3500 4WD,DIESEL,8" 4-LINK LIFT,HAS OVERLOAD,6-BOLT,FOX 2.0

BDS 2019-2024 RAM 3500 4WD,DIESEL,8" 4-LINK LIFT,HAS OVERLOAD,6-BOLT,FOX 2.0

STU BDS1729FS

$3,529.05
$3,529.05
View full details

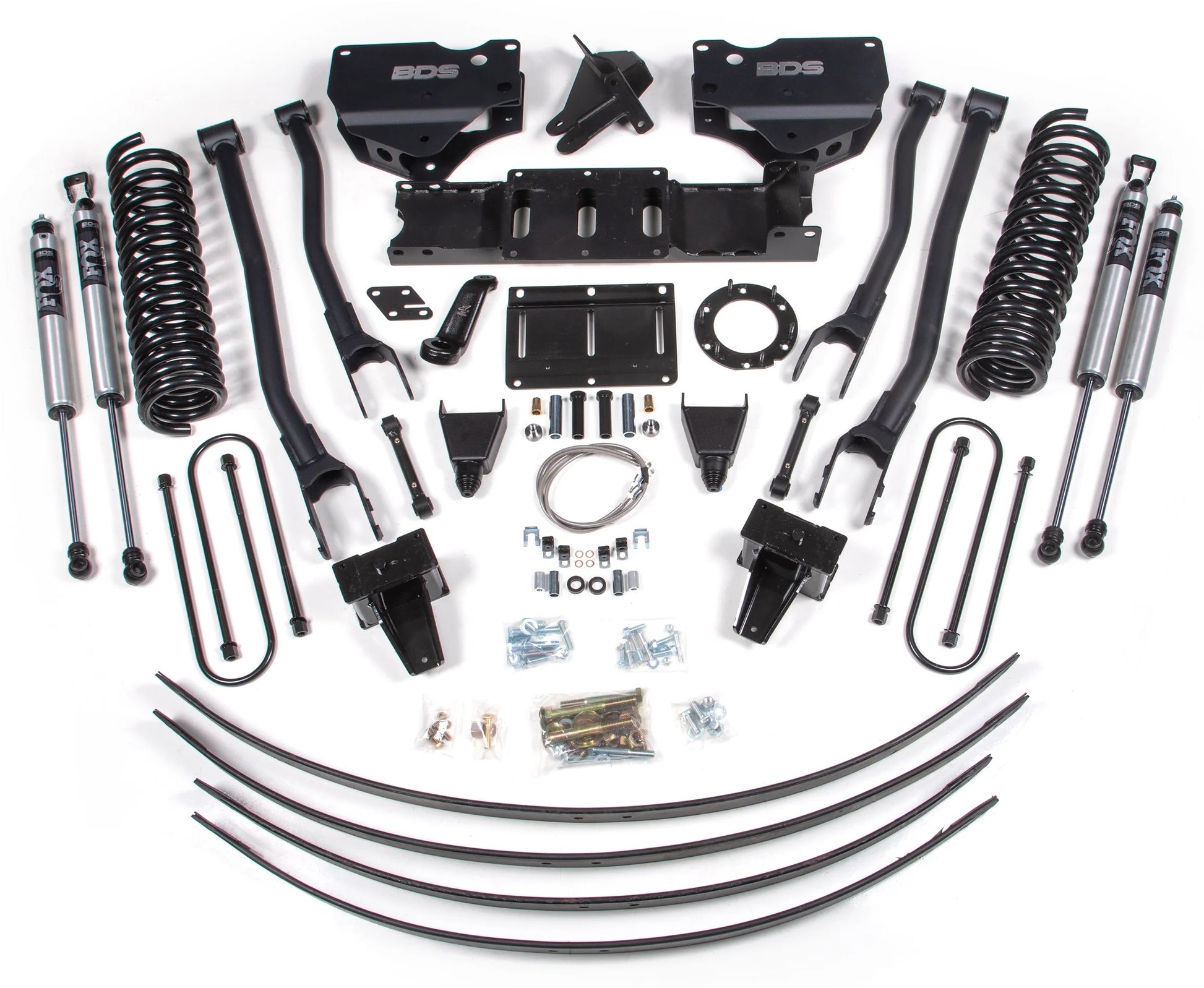

Brand New BDS Suspension 8" Lift Kit with Fox 2.0 Performance Shocks, 4-Link, & Coil Springs (Part #BDS1729FS).

Up the ante of your RAM 3500 diesel truck to the next level with this 8-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes heavy duty steel lift blocks along with add-a-leaf springs, u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2024 3500 4WD Diesel with Rear Overload Leaf

Notes:

  • Does not fit OE equipped air ride systems
  • Recoil Traction Bars Recommended
  • Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Mega Cabs with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  • Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  • This kit requires the use of an aftermarket front driveshaft (not provided) in addition to the (provided) indexing ring kit BDS122624 (6-bolt) or BDS122421 (8-bolt). Both must be installed, however due to variations between truck configurations we recommend installing the kit prior to taking measurements for the aftermarket front driveshaft to ensure correct length.
  • Recommended Tires & Wheels (Trimming may be required): 38 x 15.5 with 20 x 10 and 5.5 in. Backspace or 40 x 13.5 with 20 x 9 and 5.5 in. Backspace

Features:

  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to improve front driveline angles

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 8"
  • Rear Lift Method: Block
  • Rear Lift Height: 6"

You can view and download the assembly instruction booklet here, here, and here.
