BDS 2019-2024 RAM 3500 4WD,GAS,4" RADIUS LIFT,3" BLOCK,AIR RIDE,NX2 SHOCKS

BDS 2019-2024 RAM 3500 4WD,GAS,4" RADIUS LIFT,3" BLOCK,AIR RIDE,NX2 SHOCKS

STU BDS1722H

$2,262.98
$2,262.98
View full details

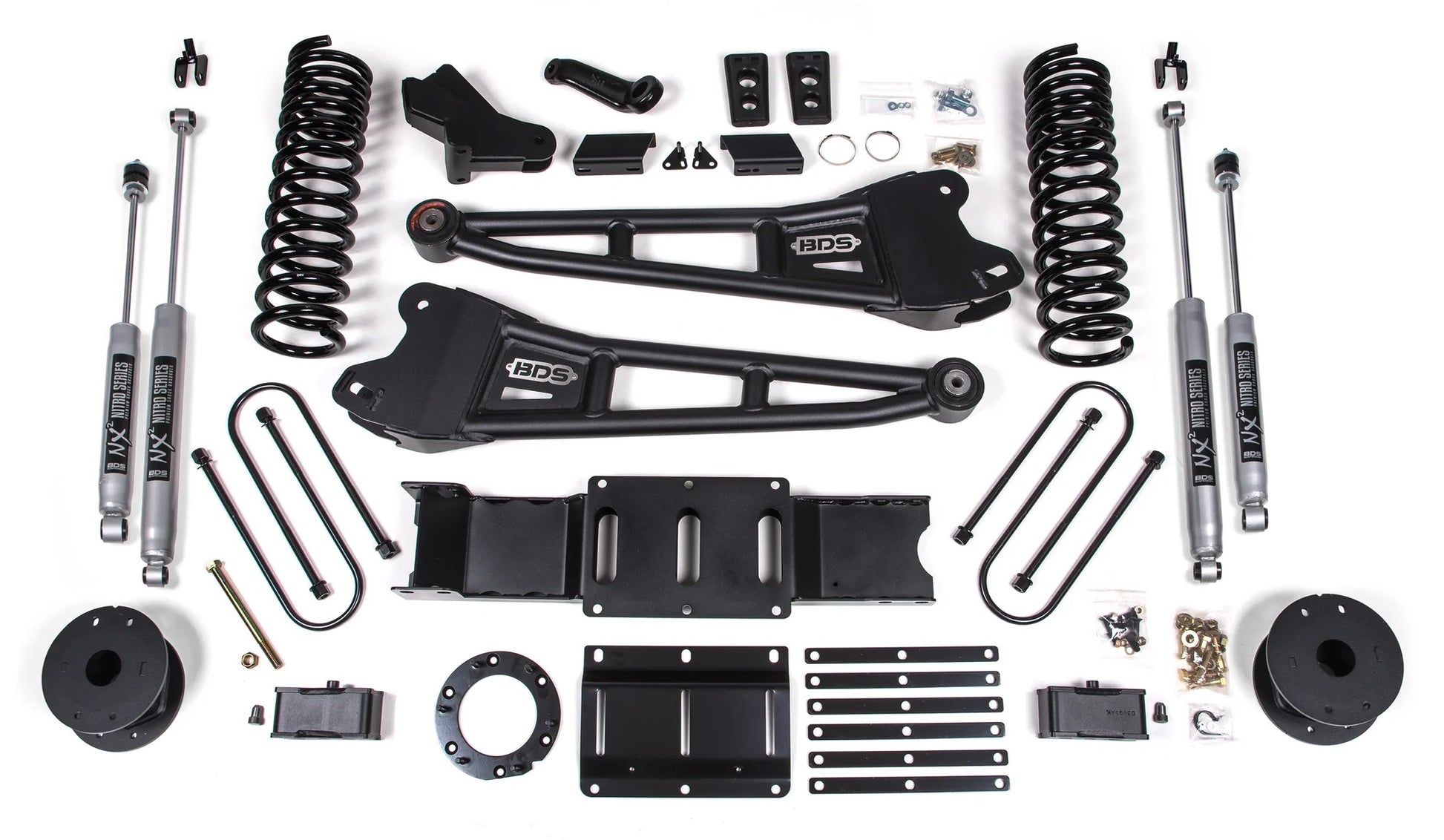

Brand New BDS Suspension 4" Radius Arm Lift Kit with Nitro Shocks, & Coil Springs (Part #BDS1722H).

Take your factory rear air bag equipped RAM 3500 gas powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2024 3500 4WD Gas with Rear Air Ride

Notes:

  • Fits OE equipped air ride systems only.
  • Exhaust modification is required to clear the front driveshaft.
  • Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension.
  • Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 20 x 9 and 4.5 in. Backspace or 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here, here, here, and here.
