BDS 2019-2024 RAM 3500 4WD,DIESEL,4" RADIUS LIFT,AIR RIDE,8-BOLT,FOX 2.0 SHOCKS

BDS 2019-2024 RAM 3500 4WD,DIESEL,4" RADIUS LIFT,AIR RIDE,8-BOLT,FOX 2.0 SHOCKS

STU BDS1719FS

$2,888.93
$2,888.93
View full details

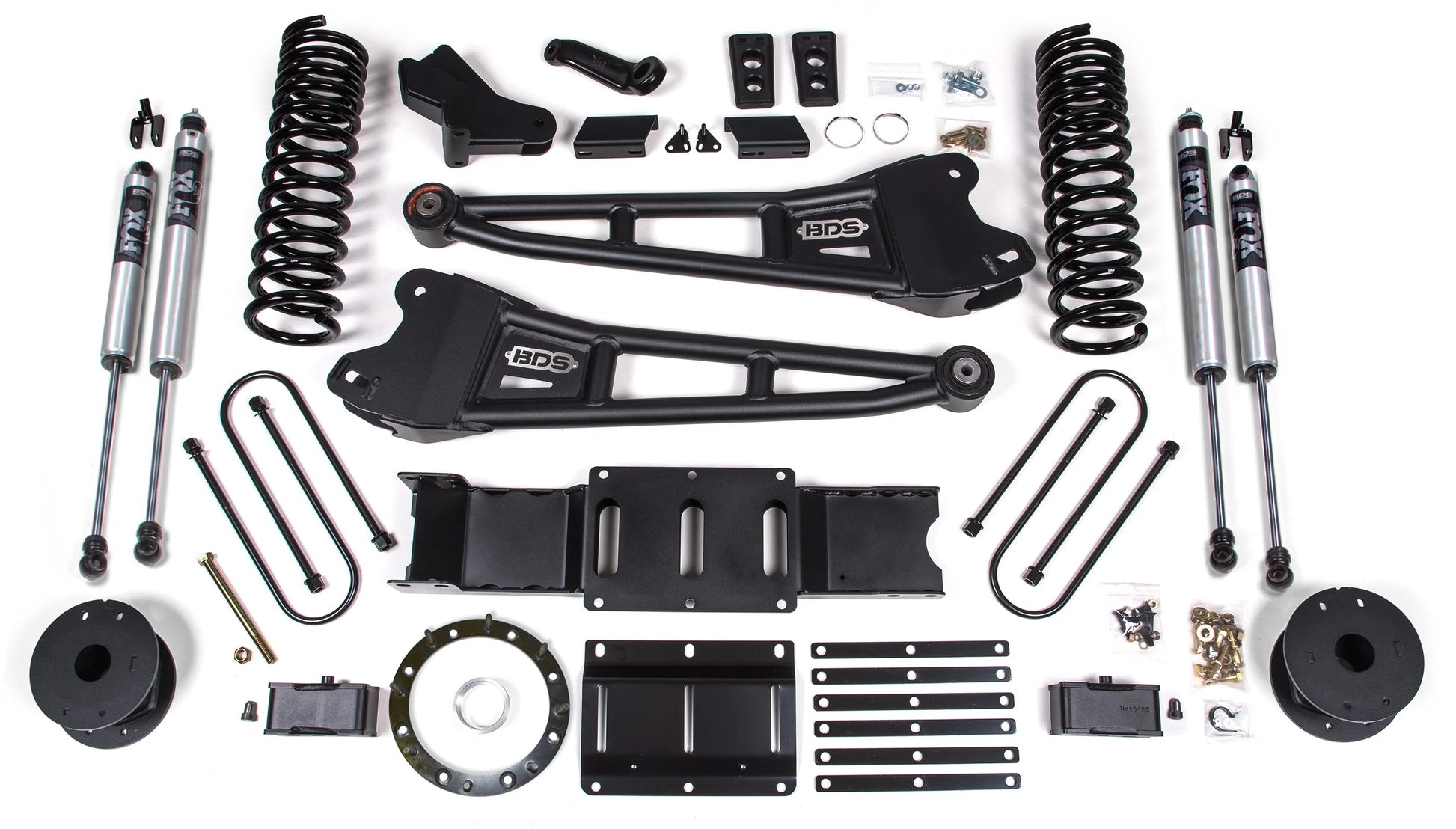

Brand New BDS Suspension Radius Arm 4" Lift Kit with Fox 2.0 Performance Shocks, Radius Arms, & Coil Springs (Part #BDS1719FS).

Take your factory rear air bag equipped RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, heavy duty air bag spacers, longer u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2024 3500 4WD Diesel with Rear Air Ride

Notes:

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt). Otherwise, use 6-bolt kit.
  • Fits OE equipped air ride systems only
  • Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Mega Cabs with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  • Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 20 x 9 and 4.5 in. Backspace or 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 3"

You can view and download the assembly instruction booklet here, here, and here.
