BDS 2019-2024 RAM 2500 DIESEL,4WD,3" RADIUS ARM LIFT KIT,AIR RIDE,FOX 2.0 SHOCKS

BDS 2019-2024 RAM 2500 DIESEL,4WD,3" RADIUS ARM LIFT KIT,AIR RIDE,FOX 2.0 SHOCKS

STU BDS1713FS

$2,636.60
$2,636.60
View full details

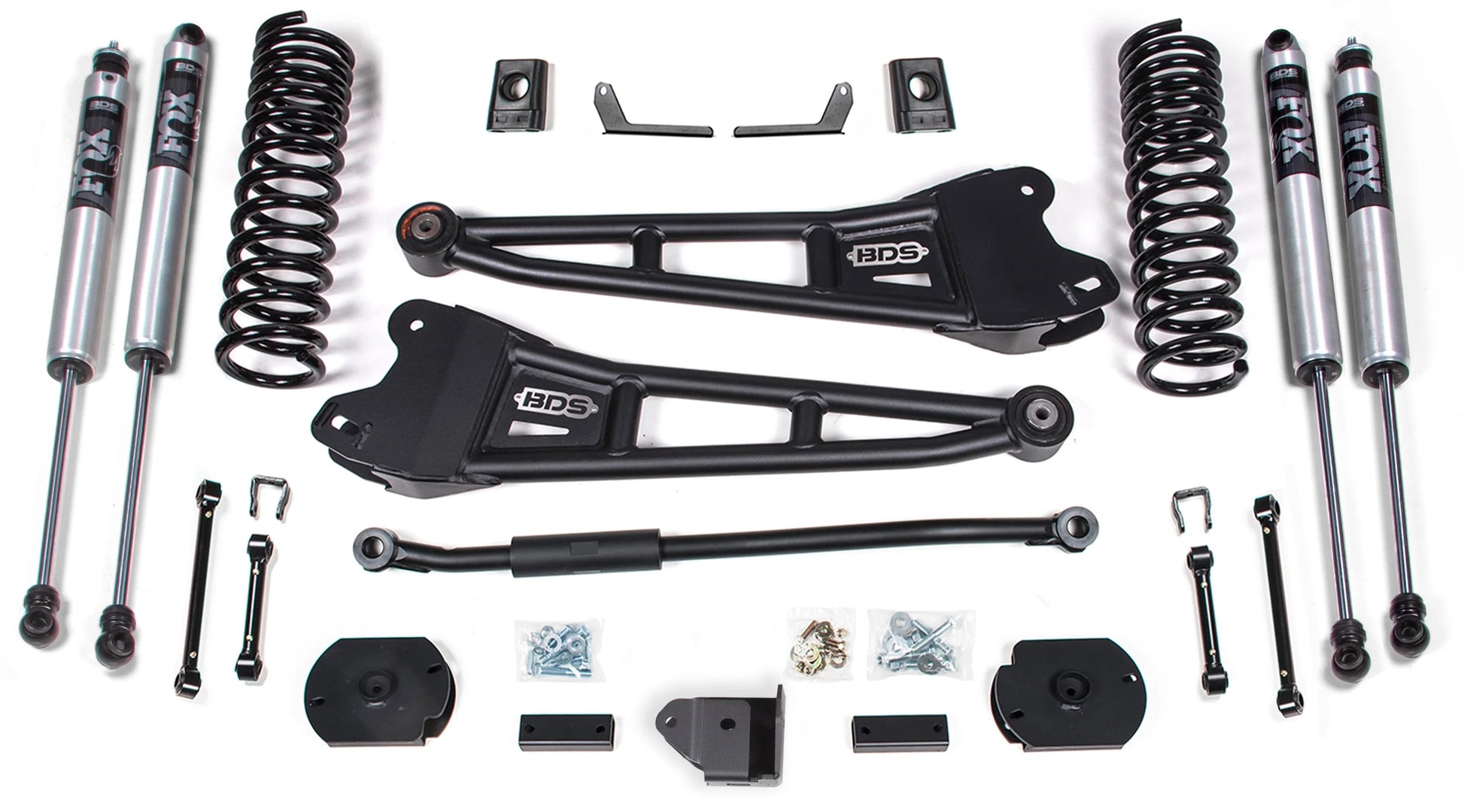

Brand New BDS Suspension 3" Lift Kit with Fox 2.0 Performance Shocks, Radius Arms, & Coil Springs (Part #BDS1713FS).

Level out and take your RAM 2500 diesel powered truck, equipped with factory rear air ride, with this 3-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, brake line brackets and precision tuned shocks. In the rear this kit utilizes a high-strength fabricated coil spacer, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2024 2500 4WD Diesel with Rear Air Ride

Notes:

  • When installing this rear air ride system in conjunction with a 4-Link or radius arm drop bracket system. Use the provided air tank spacers in this box kit to provide clearance to the brackets.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front adjustable track bar allows you to re-center axle
  • Front sway bar correction to maintain handling performance

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 3"
  • Rear Lift Method: Spacer
  • Rear Lift Height: 2"

You can view and download the assembly instruction booklet here, here, here, and here.
