BDS 2014-2018 RAM 2500 DIESEL,4WD,3" RADIUS ARM LIFT KIT,AIR RIDE,NITRO SHOCKS

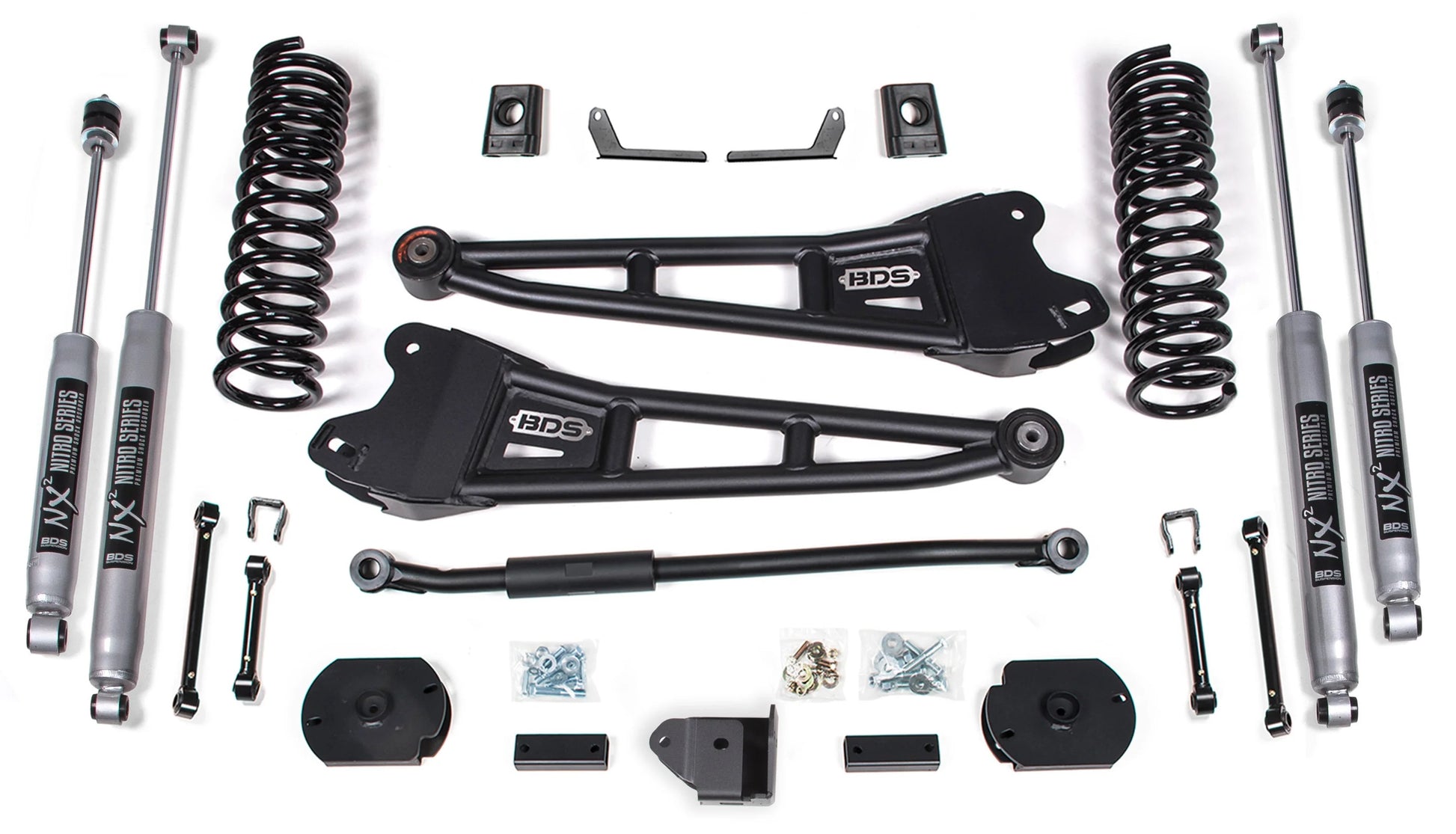

Brand New BDS Suspension 3" Lift Kit with Nitro Shocks & Coil Spacers (Part #BDS1712H).

Level out and take your 2014-2018 RAM 2500 diesel powered truck with this 3-inch radius arm lift kit from BDS Suspension. Works with factory air ride equipped trucks only. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar links, brake line brackets and precision-tuned shocks. In the rear this kit utilizes a heavy duty air bag spacer brackets, track bar relocation bracket to correct axle positioning, bump stop extensions, and a matching set of shocks. BDS also supplies new air ride leveling sensor brackets to re-position the ride height sensors allowing it to perform just like it does at factory ride height and maintain full air bag range of motion.

Fits:

• Ram:
  • 2014-2018 2500 Diesel 4WD with Rear Air Ride

Note:

• Designed for OE rear air-ride equipped models only.
• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front adjustable track bar allows you to re-center axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Coil Spring
• Front Lift Height: 3"
• Rear Lift Method: Spacer
• Rear Lift Height: 2"

You can view and download the assembly instruction booklet here, here, here, and here.
