BDS 2013-2026 RAM 3500 2" AIR RIDE LIFT,FRONT COIL SPACER,BLOCK,FOX 2.0 SHOCKS

Brand New BDS Suspension 2" Lift Kit with FOX 2.0 Shocks & Blocks (Part #BDS1710FS).

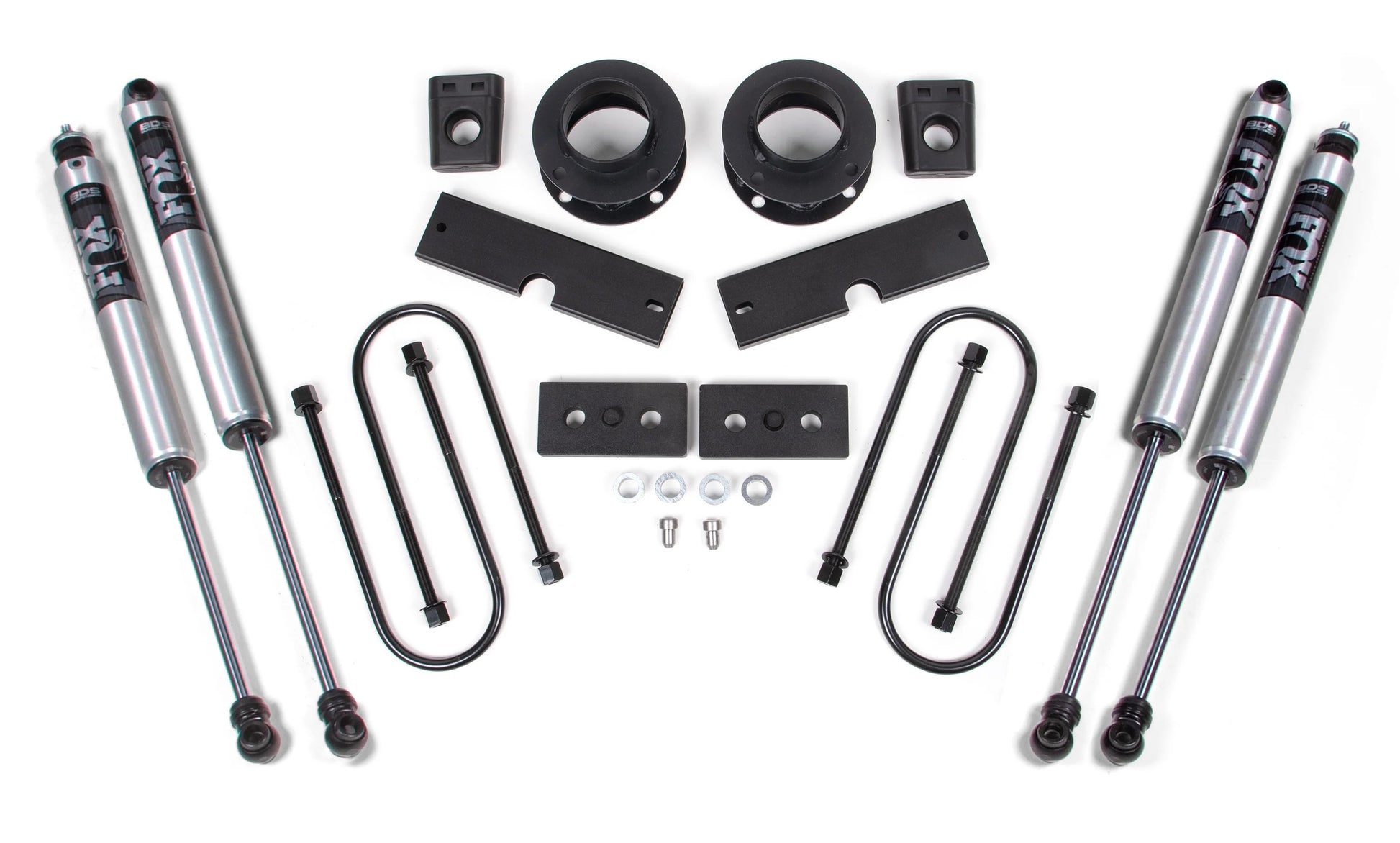

Level the front of your 2013-2026 RAM 3500 4WD truck by installing this 2-inch lift kit from BDS. Works on air ride equipped trucks only. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35" tires at an affordable price. The lift kit includes steel fabricated coil spacers, extended bump stops, rear lift blocks, air bag spacer, and custom-tuned shocks.

Fits:

• Ram:
  • 2013-2026 3500 4WD with Air Ride

Notes:

• Fits OE equipped air ride systems only
• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 5 in. Backspace or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

• Easy, 100% Bolt-on installation
• Maintains factory like ride quality

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coil Spacer
• Front Lift Height: 2"
• Rear Lift Method: Block
• Rear Lift Height: 1"

You can view and download the assembly instruction booklet here and here.
