BDS 2019-2026 RAM 1500 3" LIFT,COIL SPRINGS,FOX 2.5 COILOVERS,REAR FOX 2.0 SHOCK

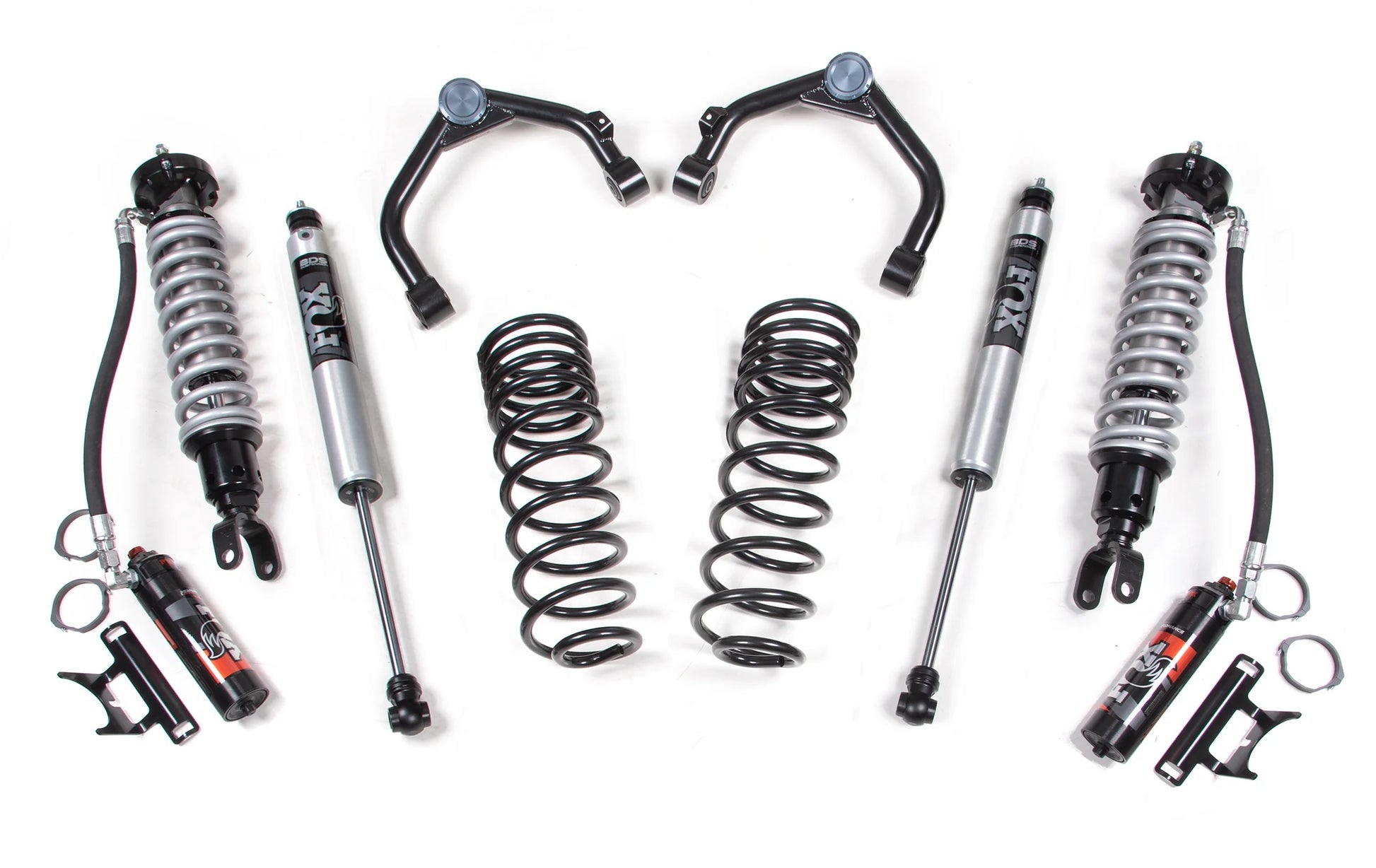

Brand New BDS Suspension 3" Lift Kit with Fox 2.5 Coilovers, Fox 2.0 Shocks, & Coil Springs (Part #BDS1709FPE).

Up the ante in your 2019-2026 RAM 1500 4WD truck with style and performance by installing this 3-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear the stance is leveled out with a pair of 1.5" dual rate coil springs designed for exceptional ride quality and additional load capacity over stock. Your choice of rear FOX 2.0 Performance Series IFP gas shocks or upgrade FOX 2.5 Performance Elite Series DSC reservoir shocks are offered to match the front for next level performance and easy tuning to meet the demands out on the trail.

Fits:

• Ram:
  • 2019-2026 1500 4WD

Notes:

• Will not work with stock rims with a 12.50" wide tire, the tire will rub the UCA at full steering lock. If the stock rim is reinstalled it will need to be with the stock-size tire ONLY!
• The ball joint used is 500-1134, use this for replacement purposes if a new ball joint is ever needed. The ball joint is directional and must be installed with the 'dot' facing either inward or outward on the vehicle, otherwise, damage may occur
• Vehicles equipped with Offroad or Rebel Package will not achieve the full 3" of lift, net ride height change will be around 2" above stock.
• 2025+ Ram 1500 Bumper Spacer Kit (BDS122004) recommended for additional tire-to-fender clearance. Sold separately.
• Will not fit models with factory air ride.
• Recommended Tires & Wheels (Trimming may be required):
• 305 / 65 with 18 x 9 and 4-5" in. Backspace, 295 / 65 with 20 x 9 and 4-5" in. Backspace, or Stock Tires & Wheels

Features:

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• HD skid plate system improved off-road protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use

Specs:

• Front Lift Method: Coilover
• Front Lift Height: 3"
• Rear Lift Method: Coil Spring
• Rear Lift Height: 1.5"

You can view and download the assembly instruction booklet here.
