BDS 19-24 RAM 3500 DIESEL 4WD,4" LIFT,2" BLOCK,NO OVERLOAD,8-BOLT,RUBBER,FOX 2.5

BDS 19-24 RAM 3500 DIESEL 4WD,4" LIFT,2" BLOCK,NO OVERLOAD,8-BOLT,RUBBER,FOX 2.5

STU BDS1706PES

$6,258.60
$6,258.60
View full details

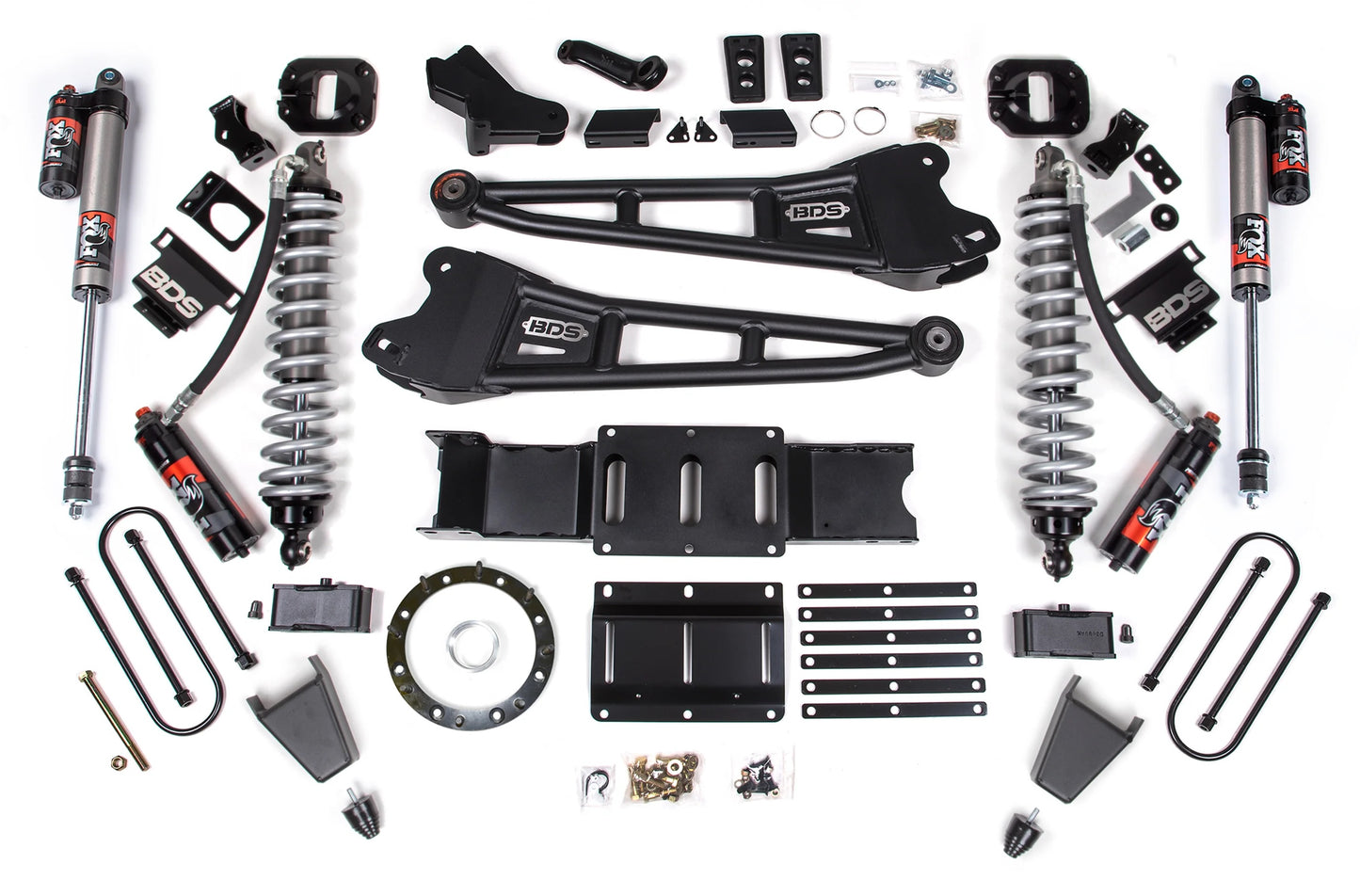

Brand New BDS Suspension Radius Arm 4" Lift Kit with Fox 2.5 Performance Elite Shocks, 2" Blocks, Rubber Bump Stops, & Coil Springs (Part #BDS1706PES).

Built to take abuse and ask for more, the BDS 4" Radius Arm Lift Kit for RAM 3500 trucks is the ultimate upgrade for those who demand performance, strength, and full-send capability. This kit ditches the stock setup and replaces it with serious hardware, starting with heavy-duty BDS radius arms for better articulation and rugged strength to handle anything the trail throws at you.

Up front, the game changes completely with the BDS Coilover Conversion Kit, outfitted with FOX Performance Elite coilovers—giving you next-level control, plush ride quality, and precision damping both on and off the road. Out back, FOX Performance Elite shocks keep things smooth and controlled, no matter how gnarly the terrain gets.

Whether you’re crawling rocks, hauling gear, or just turning heads in the parking lot, this kit is designed to deliver performance you can feel and durability you can count on.

Fits:

  • Ram:
    • 2019-2024 3500 4WD Diesel without Factory Rear Overload Leafs

Notes:

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt). Otherwise, use 6-bolt kit.
  • Will not fit air ride equipped models
  • Diesel models only
  • Requires aftermarket front driveshaft due to increased wheel travel.
  • Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Mega Cabs with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  • Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 20 x 9 and 5 in. Backspace, or 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Fox 2.5 Performance Elite Coil over mounts in the factory coil spring bucket.
  • Fox 2.5 Performance Elite rear shocks.
  • Optional Auxiliary front shock absorber.
  • Heavy Duty tubular steel radius arms which correct caster while maximizing ground clearance.
  • Front adjustable track bar which allows the front of the truck to be re-centered after lifted.
  • Front sway bar correction to maintain handling performance.

Rubber Bump Stop:

  • Rubber factory style bump stops provide a hard stop for the suspension will keep your shocks and other components safe.
  • They are great for road use and light off-roading where the bump stops will be engaged at low speeds.

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 2"

You can view and download the assembly instruction booklet here, here, here, here, and here.
