BDS 19-24 RAM 3500 DIESEL 4WD,4" RADIUS LIFT,2" BLOCK,OVERLOAD,6-BOLT,NITRO

BDS 19-24 RAM 3500 DIESEL 4WD,4" RADIUS LIFT,2" BLOCK,OVERLOAD,6-BOLT,NITRO

STU BDS1705H

$2,066.55
$2,066.55
View full details

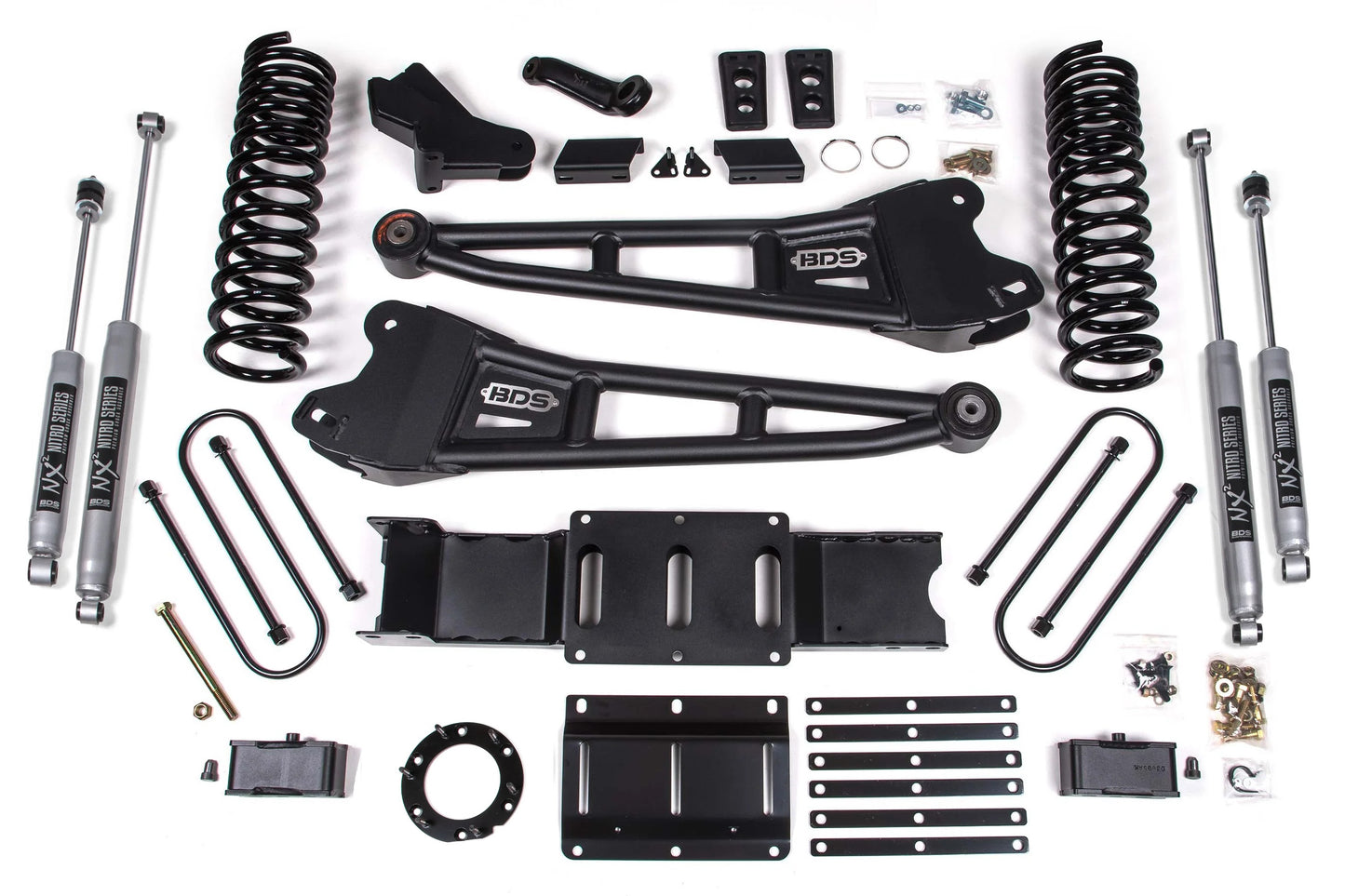

Brand New BDS Suspension Radius Arm 4" Lift Kit with Nitro Shocks, 2" Blocks, & Coil Springs (Part #BDS1705H).

Take your RAM 3500 diesel powered truck to the next level with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2024 3500 4WD Diesel with Factory Rear Overload Leafs

Notes:

  • Kits come standard with 6-Bolt indexing ring kit.
  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt). Use kit #BDS1707
  • A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
  • Mega Cabs with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  • Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 37 x 12.5 with 17 x 9 and 5.625 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty tubular radius arms improve strength, handling and caster control
  • Front high strength progressive rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 2"

You can view and download the assembly instruction booklet here, here, and here.
