BDS 2002-2009 CHEVY TRAILBLAZER OR GMC ENVOY,4WD,2" LIFT KIT,FOX 2.0 SHOCKS

BDS 2002-2009 CHEVY TRAILBLAZER OR GMC ENVOY,4WD,2" LIFT KIT,FOX 2.0 SHOCKS

STU BDS168FS

$797.85
$797.85
View full details

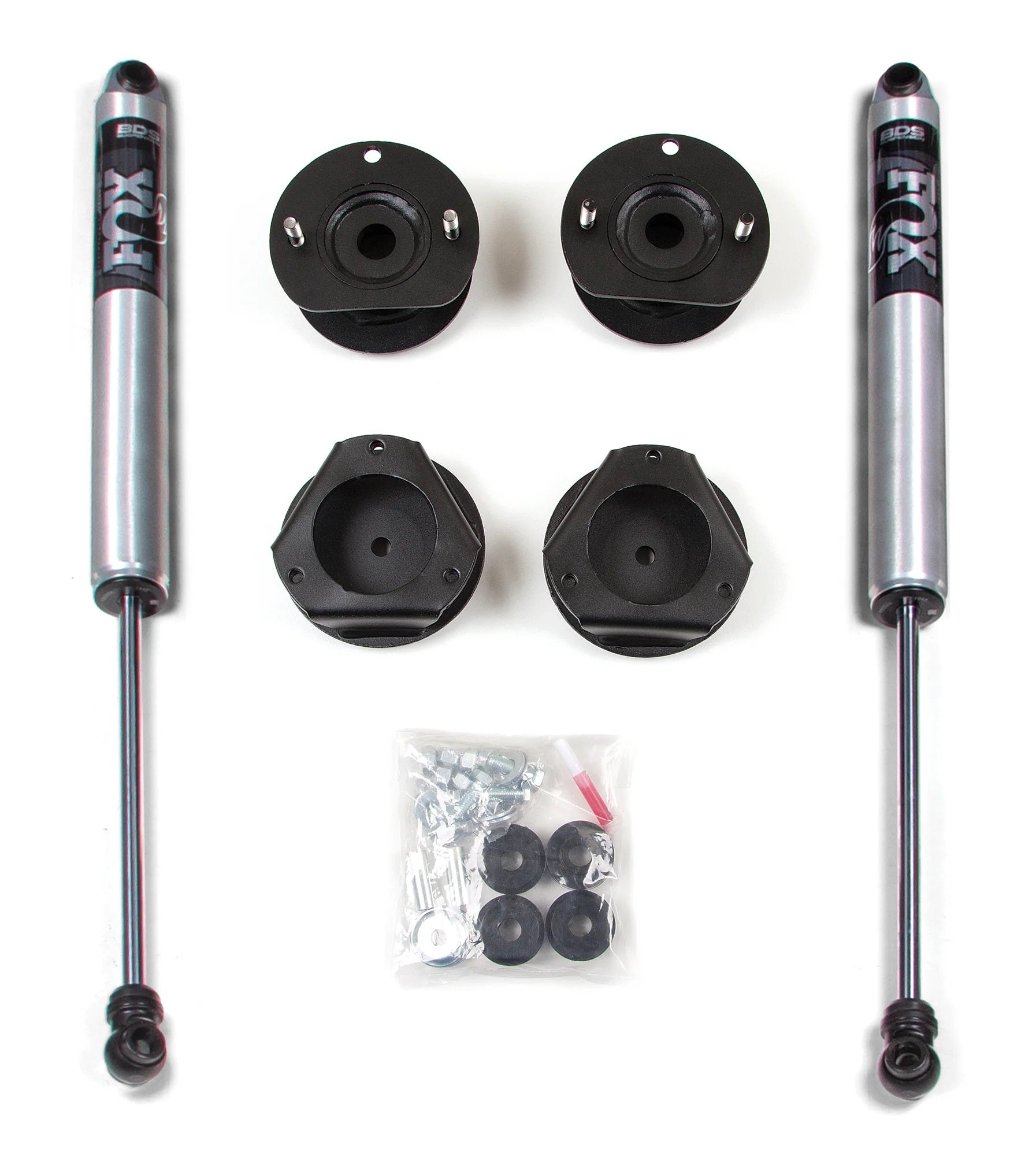

Brand New BDS Suspension 2" Lift Kit with Fox 2.0 Performance Shocks (Part #BDS168FS).

Level out your 2002-2009 Chevy Trailblazer or GMC Envoy by installing this 2-inch lift kit from BDS. Specially designed for the GM SUV's, this 2" lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. To prevent maxing out ball joints or CV damage, BDS gets around this issue with a one piece mount increases the pre-load of the strut as well as increases the over all length of the strut assembly. The lift kit includes steel top mount strut spacers, rear coil spring mounts and custom-tuned shocks.

Fits:

  • Chevrolet:
    • 2002-2009 Trailblazer 4WD
  • GMC:
    • 2002-2009 Envoy 4WD

Notes:

  • Strut compressor required for installation
  • Will not fit vehicles equipped with a rear air-ride system
  • Will fit Ext and XL models
  • Front only kit available as part #121201
  • Recommended Tires & Wheels (Trimming may be required): 30 x 9.5 with 17 x 7 and in. Backspace

Features:

  • Easy, 100% Bolt-on installation
  • Maintains factory like ride quality

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Strut Spacer
  • Front Lift Height: 2"
  • Rear Lift Method: Strut Spacer
  • Rear Lift Height: 2"

You can view and download the assembly instruction booklet here.
