BDS 2019-2026 RAM 2500 GAS,4WD,5.5" RADIUS ARM LIFT KIT,6-BOLT,FOX 2.5 SHOCKS

BDS 2019-2026 RAM 2500 GAS,4WD,5.5" RADIUS ARM LIFT KIT,6-BOLT,FOX 2.5 SHOCKS

STU BDS1681FPE

$5,729.65
$5,729.65
View full details

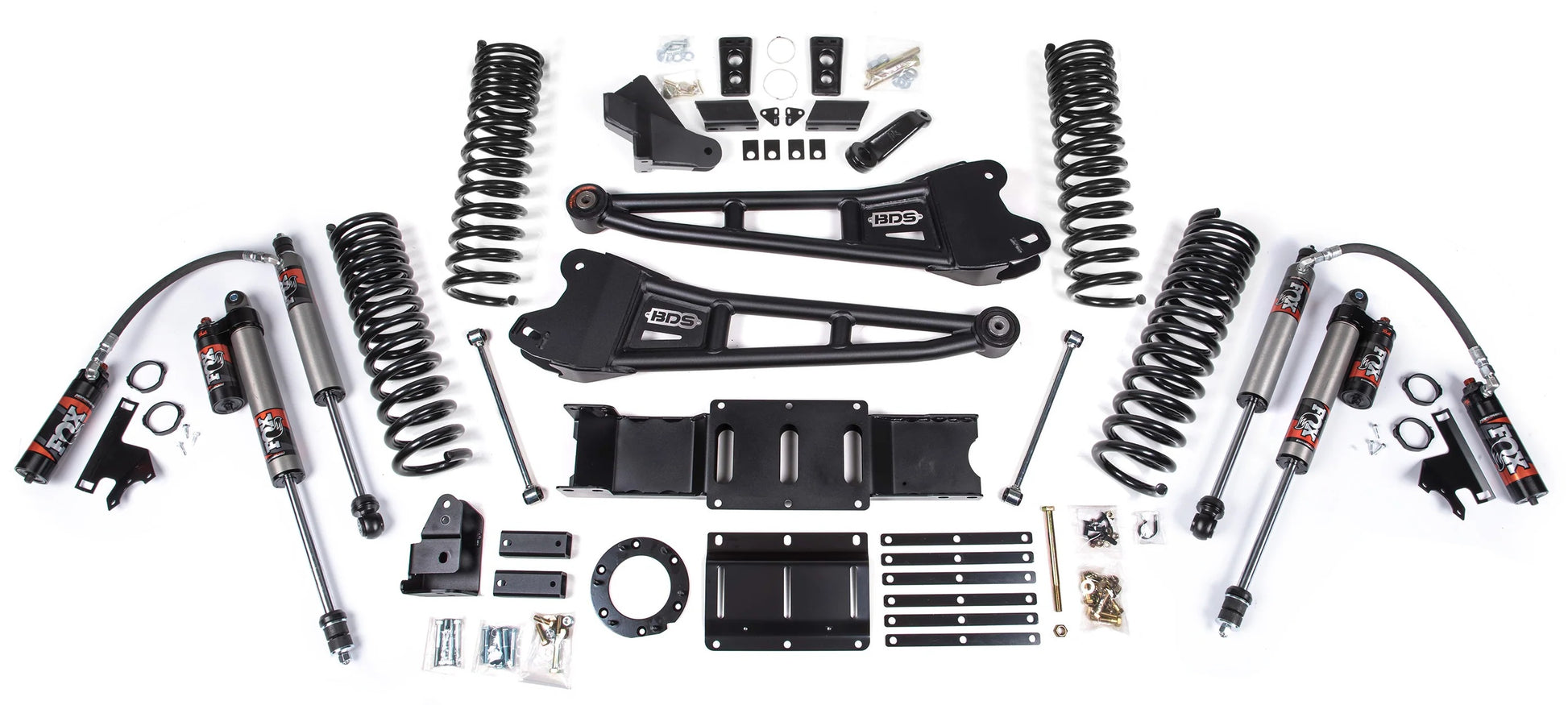

Brand New BDS Suspension 5.5" Radius Arm Lift Kit with Fox 2.5 Performance Elite Shocks, & Coil Springs (Part #BDS1681FPE).

Take your RAM 2500 gas powered truck to the next level with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2026 2500 4WD Gas

Notes:

  • Will NOT fit air-ride equipped models
  • Gas models only
  • Will NOT fit Power Wagon Models
  • Exhaust modification is required to clear front driveshaft. Vehicle can be driven w/o front driveshaft to an exhaust shop
  • Trucks with equipped with manual shift T-case will require Transfer Case Shifter Extension - BDS122422.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 20 x 9 and 4.5 in. Backspace, 37 x 13.5 with 18 x 9 and 5.625 in. Backspace, or 37 x 13.5 with 18 x 9 and 5.625 in. Backspace

Features:

  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 5.5"
  • Rear Lift Method: Coil Spring
  • Rear Lift Height: 4.5"

You can view and download the assembly instruction booklet here, here, and here.
