BDS 2019-2026 RAM 2500 4WD,GAS,4" LIFT KIT,4-LINK,SPRINGS,NITRO SHOCKS

BDS 2019-2026 RAM 2500 4WD,GAS,4" LIFT KIT,4-LINK,SPRINGS,NITRO SHOCKS

STU BDS1675H

$2,584.55
$2,584.55
View full details

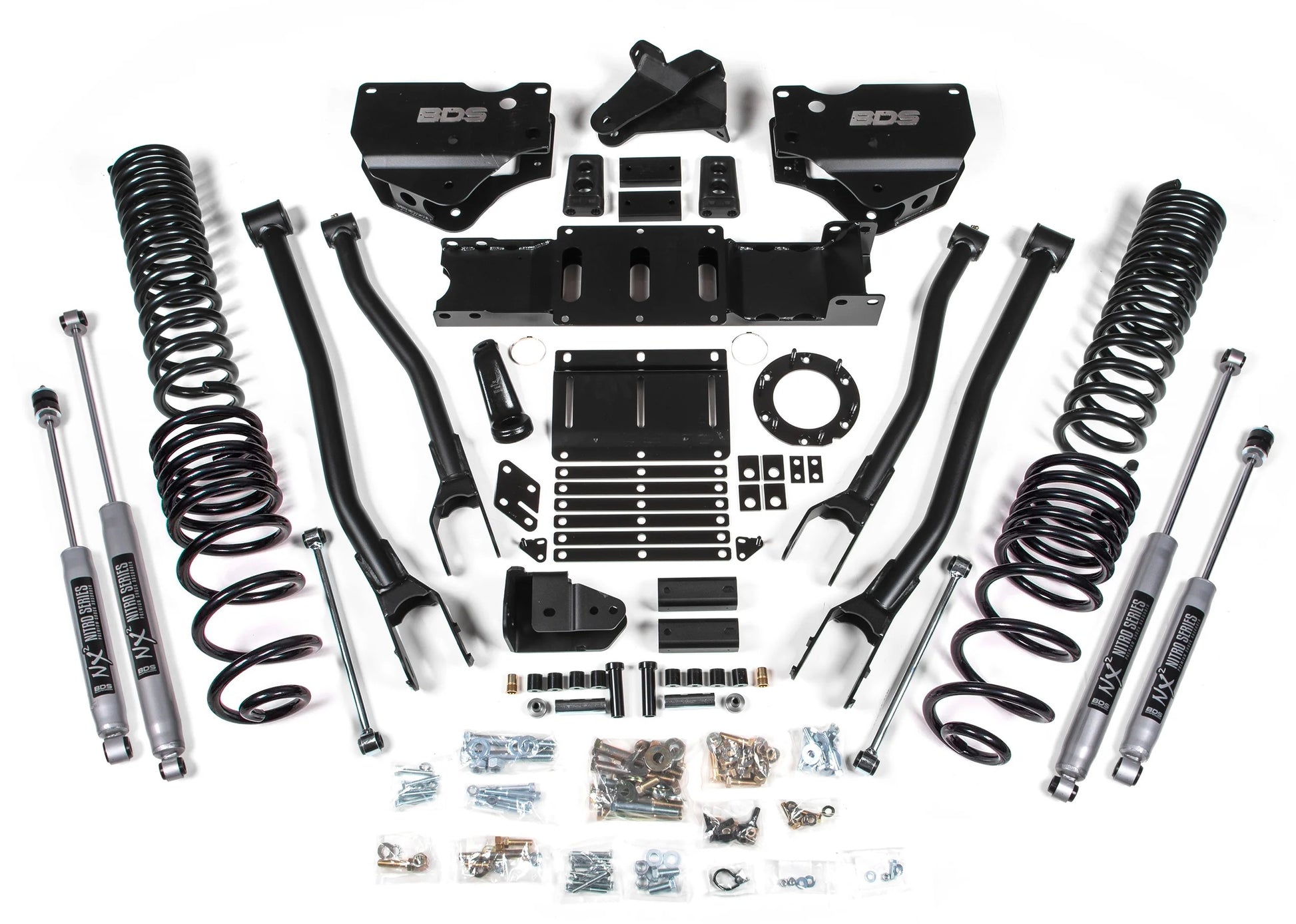

Brand New BDS Suspension 4" Lift Kit with Nitro Shocks, 4-Link, & Coil Springs (Part #BDS1675H).

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your 2019-2026 RAM 2500 gas powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2026 2500 4WD Gas

Notes:

  • Will NOT fit air-ride equipped models
  • Gas models only
  • Will NOT fit Power Wagon Models
  • Exhaust modification is required to clear front driveshaft. Vehicle can be driven w/o front driveshaft to an exhaust shop
  • Trucks with equipped with manual shift T-case will require Transfer Case Shifter Extension - BDS122422.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 18 x 9 and 5 in. Backspace, 37 x 12.5 with 20 x 9 and 5 in. Backspace, or 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Coil Spring
  • Rear Lift Height: 2.5"

You can view and download the assembly instruction booklet here, here, here, and here.
