BDS 2019-2024 RAM 2500 4WD,DIESEL,4" LIFT,4-LINK,FOX 2.5 COILOVER,RUBBER BUMP

BDS 2019-2024 RAM 2500 4WD,DIESEL,4" LIFT,4-LINK,FOX 2.5 COILOVER,RUBBER BUMP

STU BDS1674PES

$6,734.60
$6,734.60
View full details

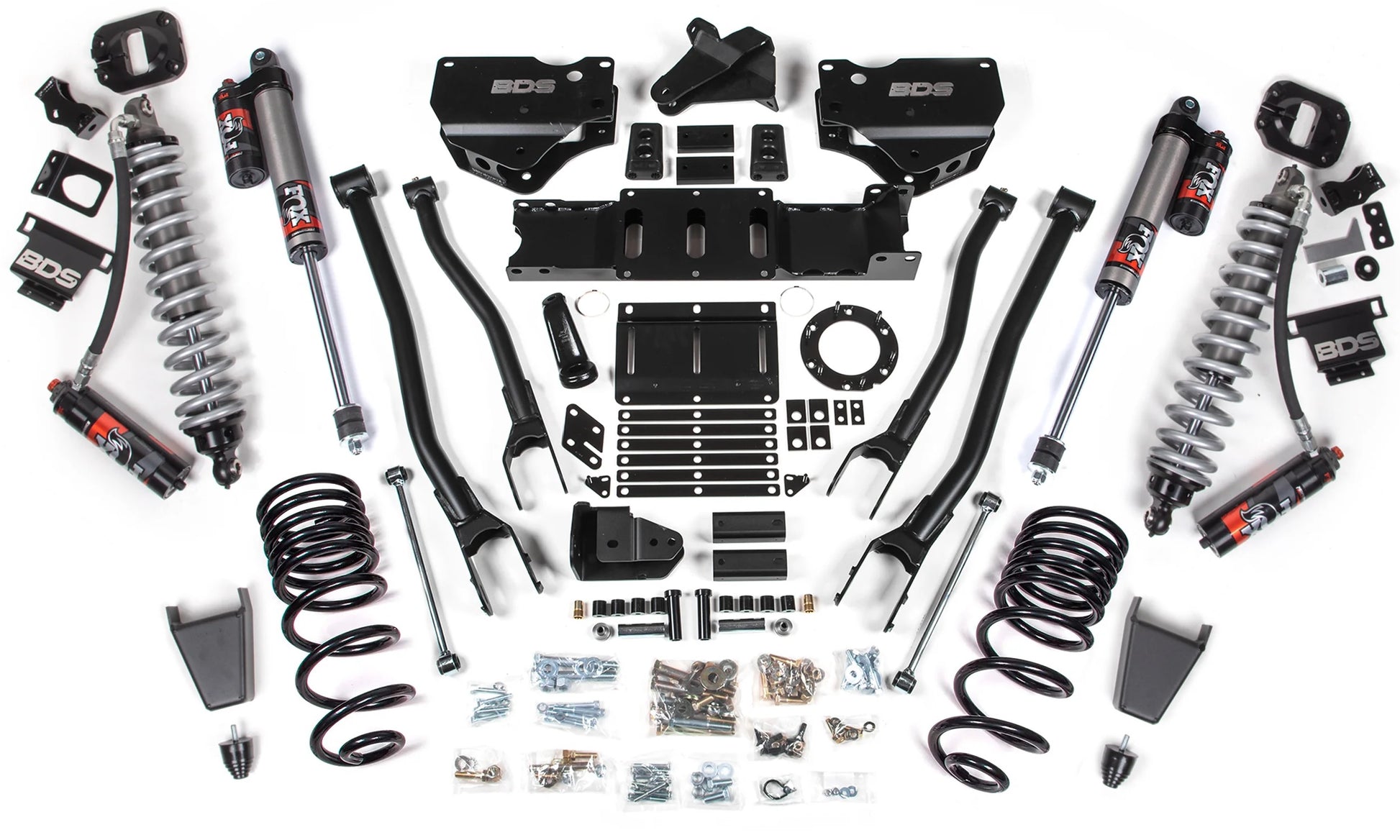

Brand New BDS Suspension 4" Lift Kit with Fox 2.5 Performance Elite Coilovers, Fox 2.5 Shocks, 4-Link, Rubber Bump Stop, & Coil Springs (Part #BDS1674PES).

Built to take abuse and ask for more, the BDS 4" 4-Link Lift Kit for RAM 2500 trucks is the ultimate upgrade for those who demand performance, strength, and full-send capability. This kit ditches the stock setup and replaces it with serious hardware, starting with heavy-duty BDS 4-Link arms for better articulation and rugged strength to handle anything the trail throws at you.

Up front, the game changes completely with the BDS Coilover Conversion Kit, outfitted with FOX Performance Elite coilovers—giving you next-level control, plush ride quality, and precision damping both on and off the road. Out back, FOX Performance Elite shocks keep things smooth and controlled, no matter how gnarly the terrain gets.

Whether you’re crawling rocks, hauling gear, or just turning heads in the parking lot, this kit is designed to deliver performance you can feel and durability you can count on.

Fits:

  • Ram:
    • 2019-2024 2500 4WD Diesel

Notes:

  • Will not fit air ride equipped models
  • Diesel models only
  • Not designed for PowerWagon models
  • Requires aftermarket driveshaft due to increased wheel travel.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 18 x 9 and 5 in. Backspace, 37 x 12.5 with 20 x 9 and 5 in. Backspace, or 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Fox 2.5 Performance Elite Coil over mounts in the factory coil spring bucket.
  • Fox 2.5 Performance Elite rear shocks.
  • Optional Auxiliary front shock absorber.
  • Heavy Duty tubular steel 4-Link arms which correct caster while maximizing ground clearance.
  • Front adjustable track bar which allows the front of the truck to be re-centered after lifted.
  • Front sway bar correction to maintain handling performance.

Rubber Bump Stop:

  • Rubber factory style bump stops provide a hard stop for the suspension will keep your shocks and other components safe.
  • They are great for road use and light off-roading where the bump stops will be engaged at low speeds.

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 4"
  • Rear Lift Method: Coil Spring
  • Rear Lift Height: 2.5"

You can view and download the assembly instruction booklet here, here, here, and here.
