BDS 2019-2024 RAM 2500 4WD,DIESEL,4" LIFT,4-LINK,SPRINGS,FOX 2.5 SHOCKS

BDS 2019-2024 RAM 2500 4WD,DIESEL,4" LIFT,4-LINK,SPRINGS,FOX 2.5 SHOCKS

STU BDS1674FPE

$5,916.65
$5,916.65
View full details

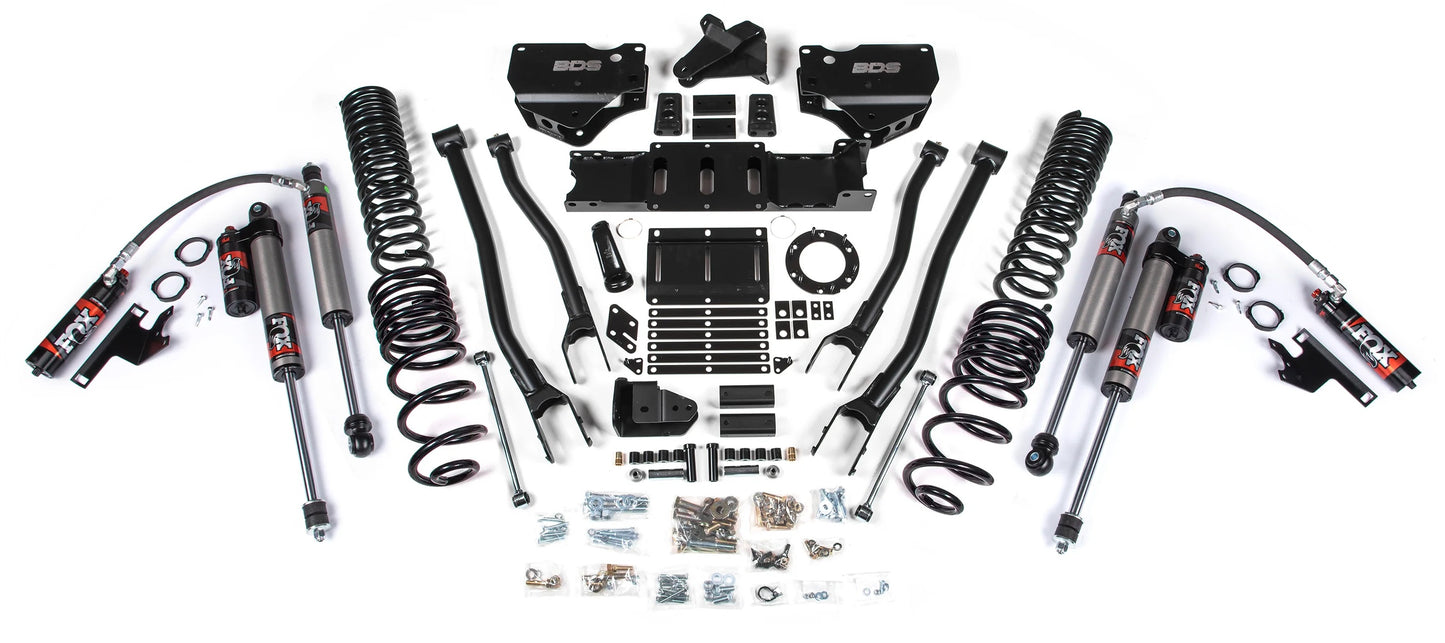

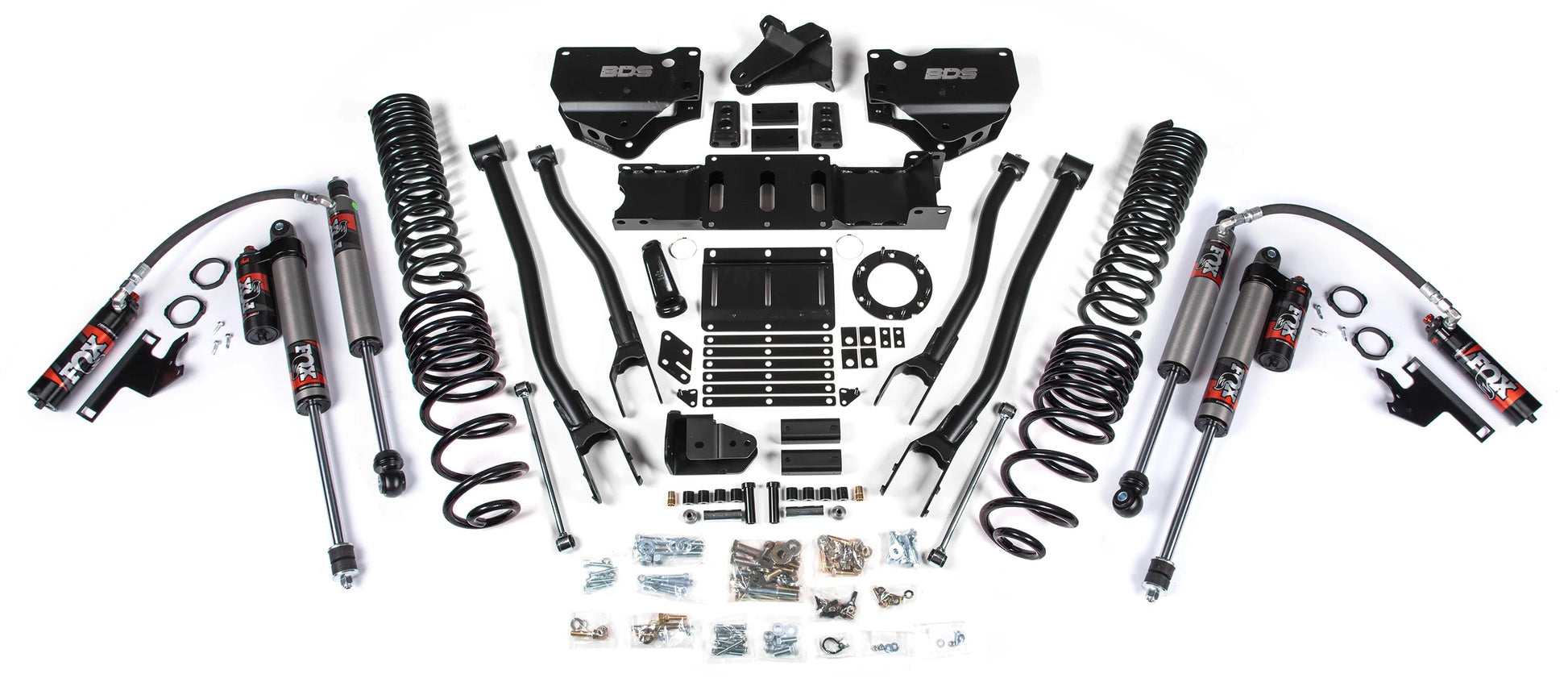

Brand New BDS Suspension 4" Lift Kit with Fox 2.5 Performance Elite Shocks, 4-Link, & Coil Springs (Part #BDS1674FPE).

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your 2019-2024 RAM 2500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2024 2500 4WD Diesel

Notes:

  • Will not fit air-ride equipped models.
  • Diesel models only
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 18 x 9 and 5 in. Backspace, 37 x 12.5 with 20 x 9 and 5 in. Backspace, or 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty 4-link arms improve strength, handling and caster control
  • High strength progressive rate coil springs for a great ride on any terrain
  • Track bar relocation brackets to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Coil Spring
  • Rear Lift Height: 2.5"

You can view and download the assembly instruction booklet here, here, here, and here.
