BDS 19-24 RAM 3500 4WD,DIESEL,NO OVERLOAD,4" LIFT,2",4-LINK,8-B,FOX 2.5,HYDRO

BDS 19-24 RAM 3500 4WD,DIESEL,NO OVERLOAD,4" LIFT,2",4-LINK,8-B,FOX 2.5,HYDRO

STU BDS1672PESB

$7,178.60
$7,178.60
View full details

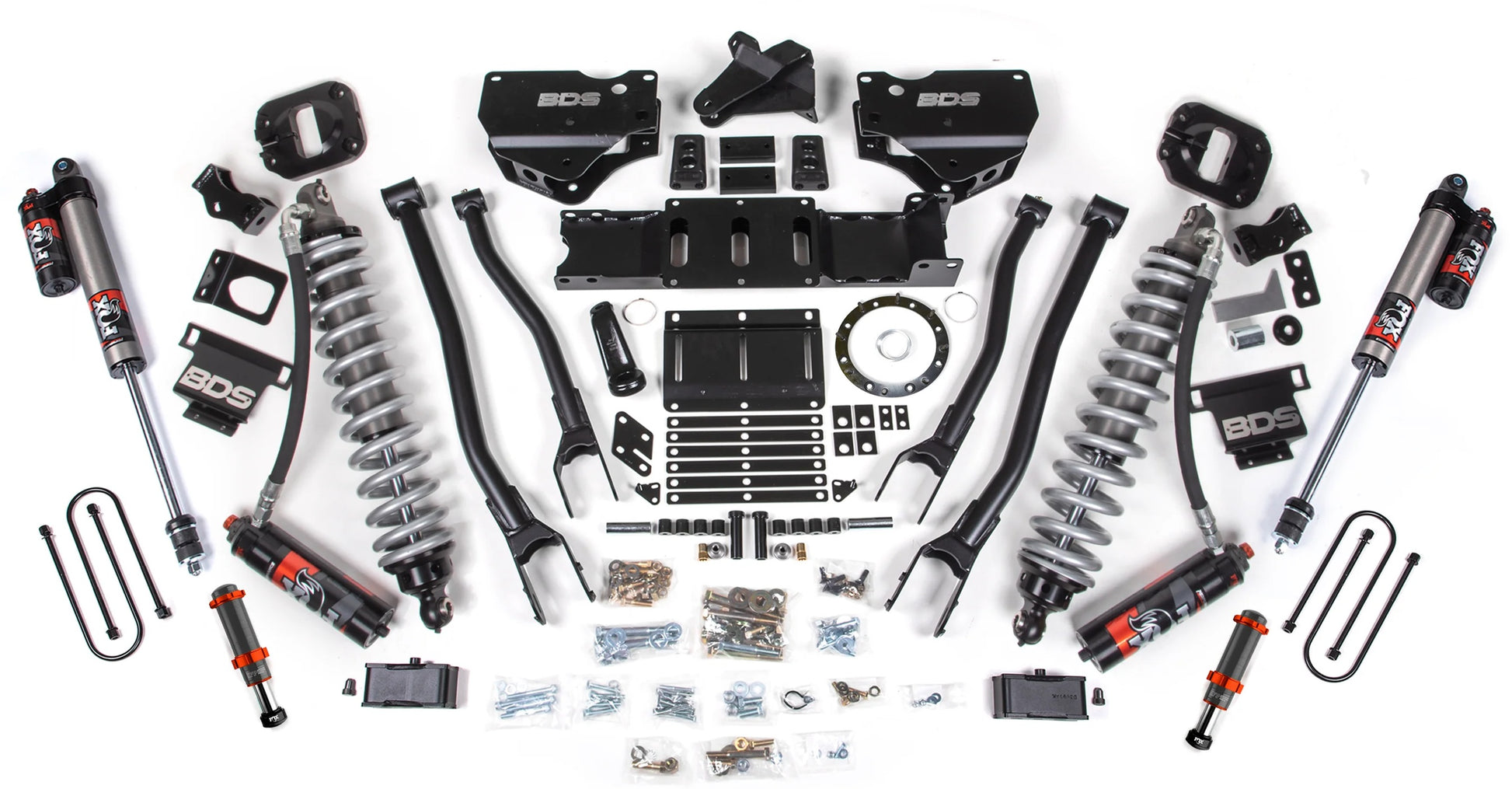

Brand New BDS Suspension 4" Lift Kit with Fox 2.5 Performance Elite Shocks, Coil Springs, 2" Block, Fox 2.0 Hydro Bump Stop, & 4-Link (Part #BDS1672PESB).

Built to take abuse and ask for more, the BDS 4" 4-Link Lift Kit for RAM 3500 trucks is the ultimate upgrade for those who demand performance, strength, and full-send capability. This kit ditches the stock setup and replaces it with serious hardware, starting with heavy-duty BDS 4-Link arms for better articulation and rugged strength to handle anything the trail throws at you.

Up front, the game changes completely with the BDS Coilover Conversion Kit, outfitted with FOX Performance Elite coilovers—giving you next-level control, plush ride quality, and precision damping both on and off the road. Out back, FOX Performance Elite shocks keep things smooth and controlled, no matter how gnarly the terrain gets.

Whether you’re crawling rocks, hauling gear, or just turning heads in the parking lot, this kit is designed to deliver performance you can feel and durability you can count on.

Fits:

  • Ram:
    • 2019-2024 3500 4WD Diesel without Factory Rear Overload Leaf & 8-Bolt Indexing Ring

Notes:

  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt). Otherwise, use the 6-bolt kit.
  • Will not fit air ride equipped models
  • Diesel models only
  • Requires aftermarket front driveshaft due to increased wheel travel.
  • Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Mega Cabs with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  • Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 20 x 9 and 5 in. Backspace, or 37 x 13.5 with 20 x 9 and 5.625 in. Backspace

Features:

  • Heavy duty 4-link improve strength, handling and caster control
  • Front high strength dual rate coil springs for a great ride on any terrain
  • Front track bar relocation bracket to re-position axle
  • Forged drop pitman arm to correct steering angles
  • Front sway bar correction to maintain handling performance
  • HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

FOX 2.0 Factory Race Series Hydro Bump Stop:

  • Engineered to perform in the roughest terrain, the FOX 2.0 Hydraulic Bump stops provide one more layer of shock absorption when utilizing the full travel of your suspension.
  • Ideal for the avid offroader who hits big obstacles and goes over rough terrain at speed to maintain comfort and control.

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 2"

You can view and download the assembly instruction booklet here, here, here, and here.
