BDS 19-24 RAM 3500 4WD,DIESEL,OVERLOAD,4" LIFT,2",4-LINK,6-BOLT,FOX 2.5,RUBBER

BDS 19-24 RAM 3500 4WD,DIESEL,OVERLOAD,4" LIFT,2",4-LINK,6-BOLT,FOX 2.5,RUBBER

STU BDS1671PES

$6,462.91
$6,462.91
View full details

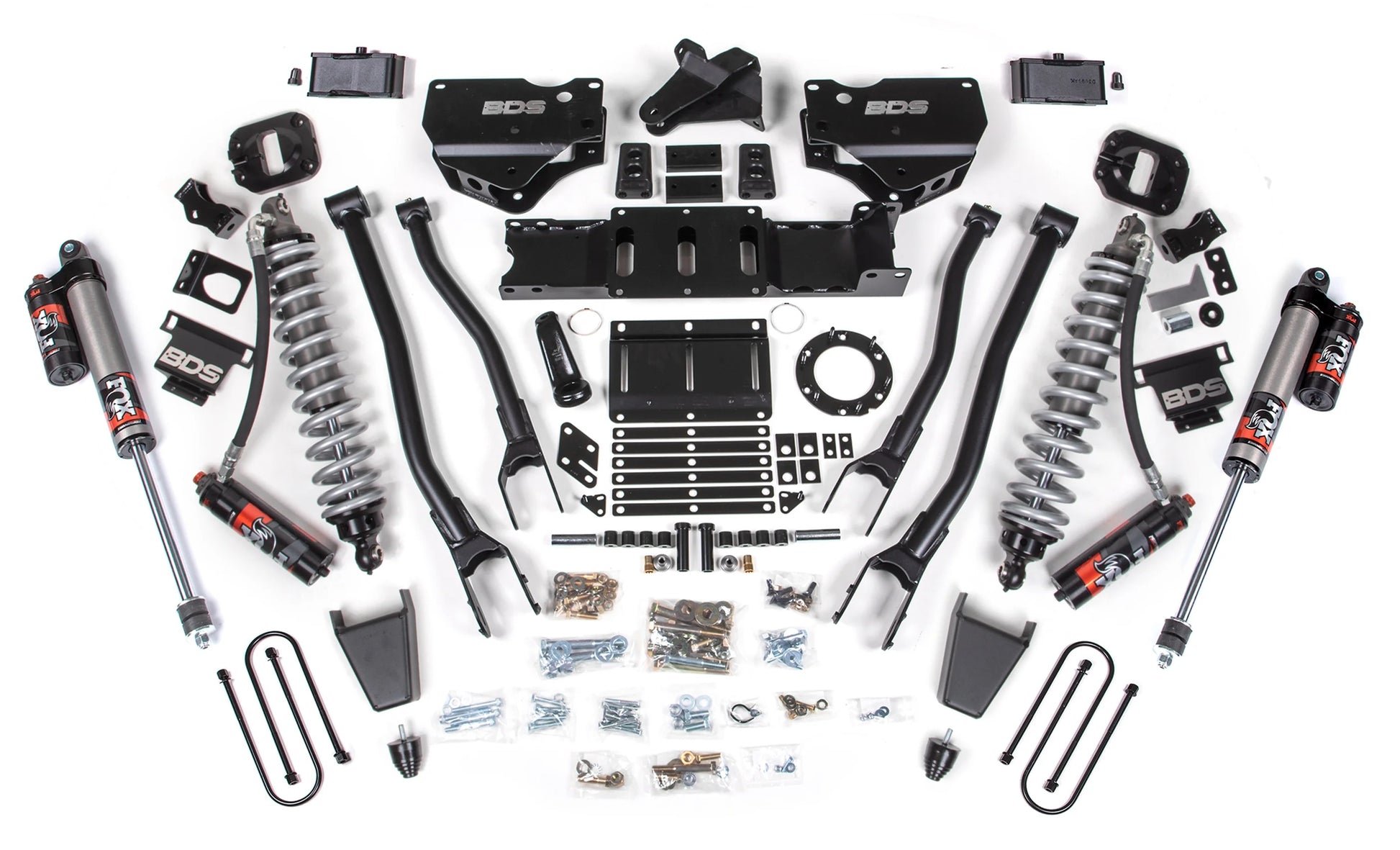

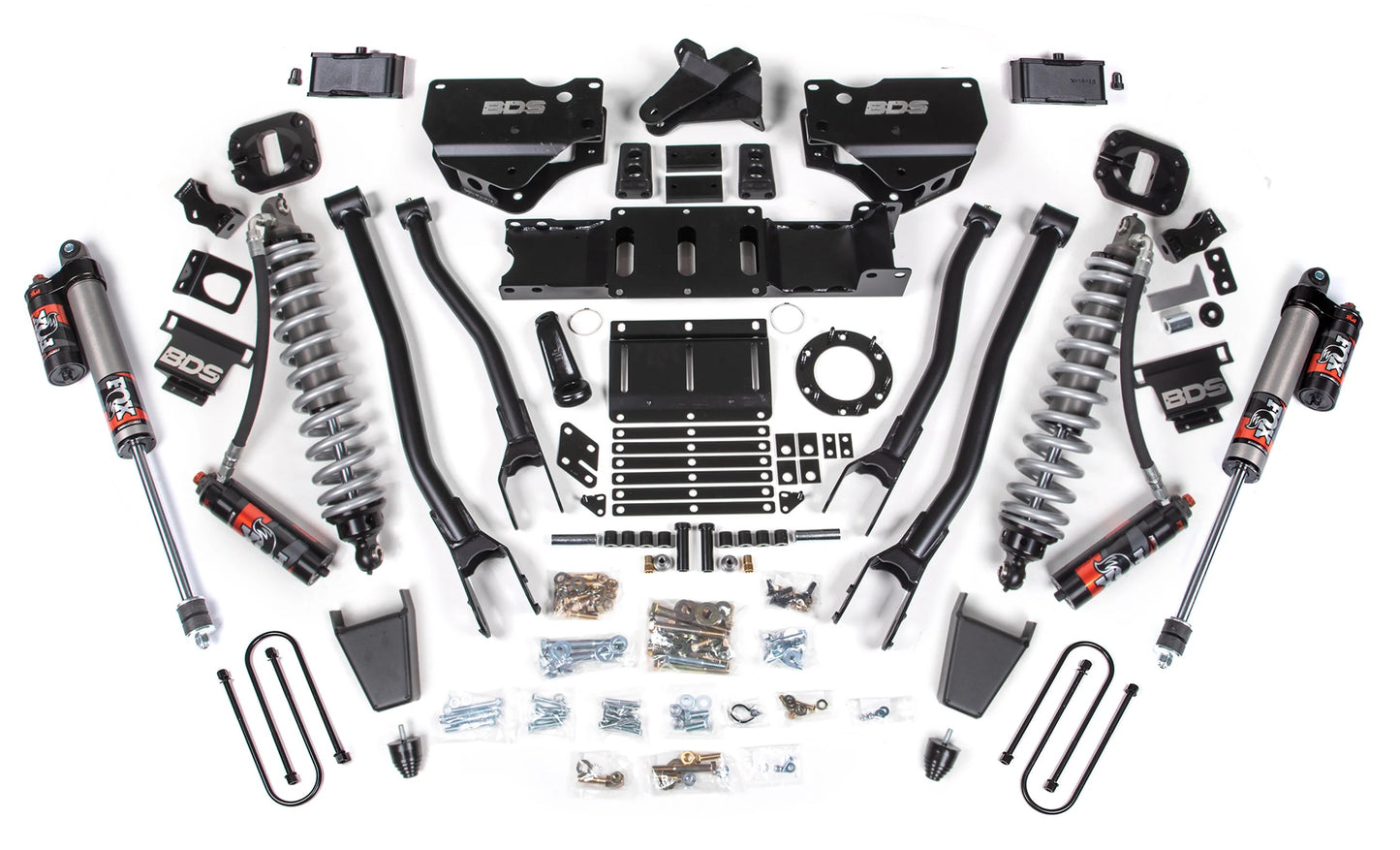

Brand New BDS Suspension 4" Lift Kit with Fox 2.5 Performance Elite Shocks, Coil Springs, 2" Block, Rubber Bump Stop, & 4-Link (Part #BDS1671PES).

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.

Fits:

  • Ram:
    • 2019-2024 3500 4WD Diesel with Factory Rear Overload Leaf & 6-Bolt Indexing Ring

Notes:

  • Kits come standard with 6-Bolt indexing ring kit.
  • Ram has an optional Aisin heavy-duty 6 speed transmission available in the 3500 trucks that utilize a different transfer case mounting bolt pattern (8-bolt). Use kit #BDS1673.
  • Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Mega Cab Trucks with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
  • Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
  • Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 4.5 in. Backspace or 37 x 12.5 with 17 x 9 and 5.625 in. Backspace

Features:

  • Fox 2.5 Performance Elite Coil over mounts in the factory coil spring bucket.
  • Fox 2.5 Performance Elite rear shocks.
  • Optional Auxiliary front shock absorber.
  • Heavy Duty tubular steel 4-Link arms which correct caster while maximizing ground clearance.
  • Front adjustable track bar which allows the front of the truck to be re-centered after lifted.
  • Front sway bar correction to maintain handling performance.

Rubber Bump Stop:

  • Rubber factory style bump stops provide a hard stop for the suspension will keep your shocks and other components safe.
  • They are great for road use and light off-roading where the bump stops will be engaged at low speeds.

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 2"

You can view and download the assembly instruction booklet here, here, here, and here.
