BDS 2013-2018 RAM 1500 4WD,2" LEVELING KIT,FOX 2.0 COILOVERS,FOX 2.0 SHOCKS

BDS 2013-2018 RAM 1500 4WD,2" LEVELING KIT,FOX 2.0 COILOVERS,FOX 2.0 SHOCKS

STU BDS1665FSL

$2,450.75
$2,450.75
View full details

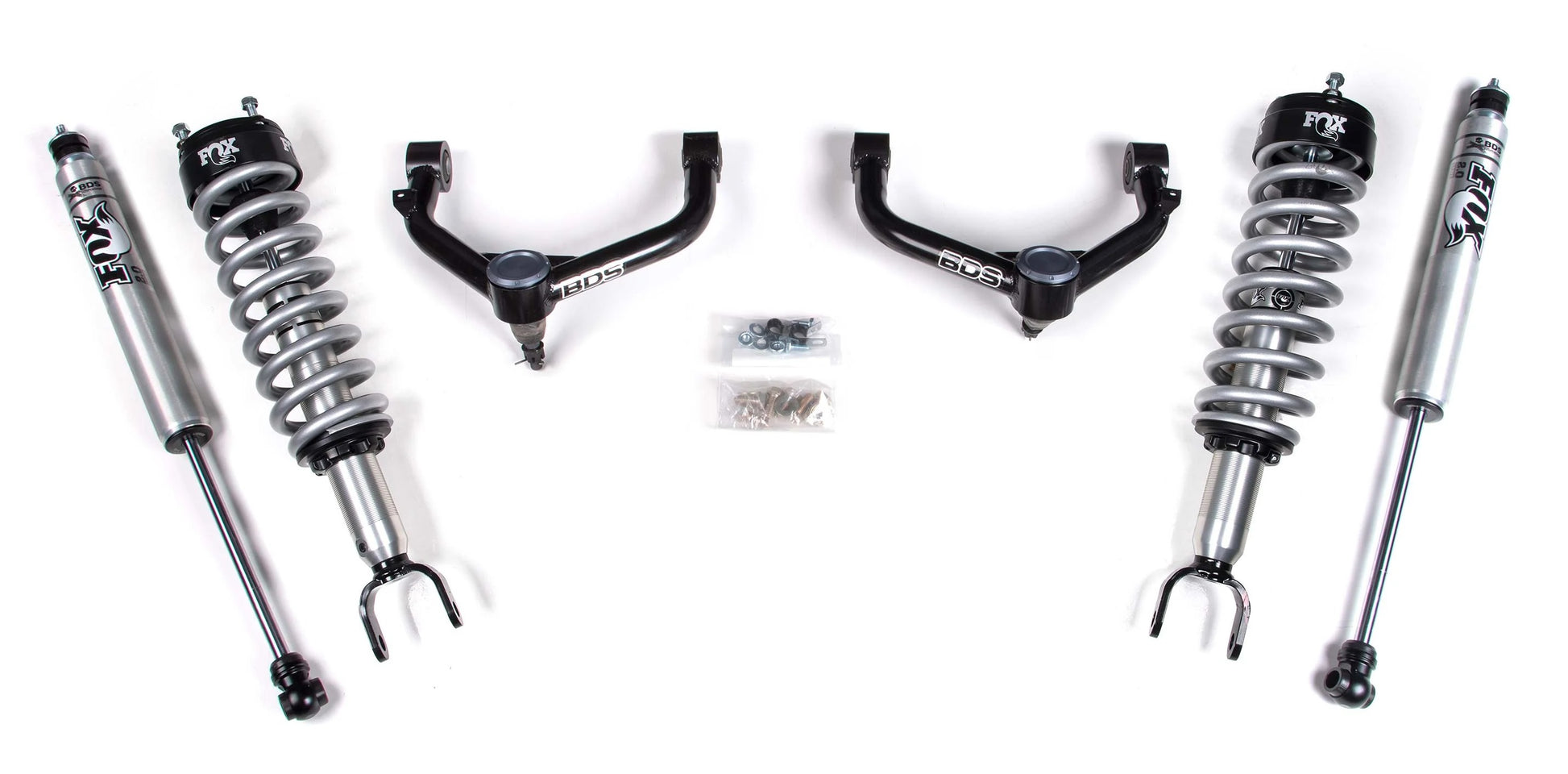

Brand New BDS Suspension 2" Leveling Kit with Fox 2.0 Coilovers, Fox 2.0 Shocks, & Upper Control Arms (Part #BDS1665FSL).

Level out your 2013-2018 RAM 1500 4WD truck and improve the ride with this 2-inch leveling kit featuring FOX 2.0 coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

Up front, the lift kit includes FOX 2.0 Performance Series coilover shocks and heavy-duty tubular upper control arms for increased strength. In the rear, this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

Fits:

  • Ram:
    • 2019-2024 1500 4WD

Notes:

  • The stock wheel/tire can be reinstalled. Stock wheel with wider 12.50 tires cannot due to clearance issue to UCA at full steering lock.
  • Vehicles equipped with Offroad or Rebel Package will not achieve the full 2" of lift, net ride height change will be around 1" above stock.
  • Will not fit adjustable air suspension equipped models.
  • Recommended Tires & Wheels (Trimming may be required): 33 x 12.5 with 18 x 9 and 5 in. Backspace or 33 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • FOX 2.0 performance series struts offer improved damper performance over factory and are a direct bolt-in replacement
  • Performance UCAs increase strength and allow for more suspension travel
  • FOX 2.0 performance series IFP rear shocks included
  • Factory Protection Plus drivetrain warranty included
  • Easy, 100% Bolt on installation

FOX 2.0 Coil-Over Shocks:

  • These FOX 2.0 Performance Series coilovers offer impressive damper performance, providing a great ride on and off-road, and are designed as a direct bolt-in replacement for the factory strut.
  • They feature a 2.0" extruded and machined 6061 T6 aluminum body for improved heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, a 5/8" hard-chrome-plated heat-treated alloy shaft, and come preloaded with springs and a top plate for easy installation.

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 2"
  • Rear Lift Method: Stock
  • Rear Lift Height: 0"

You can view and download the assembly instruction booklet here, here, and here.
