BDS 2019-2024 RAM 1500 4WD,STANDARD KNUCKLE,6" LIFT KIT,FOX 2.0 SHOCKS

BDS 2019-2024 RAM 1500 4WD,STANDARD KNUCKLE,6" LIFT KIT,FOX 2.0 SHOCKS

STU BDS1661FS

$2,614.55
$2,614.55
View full details

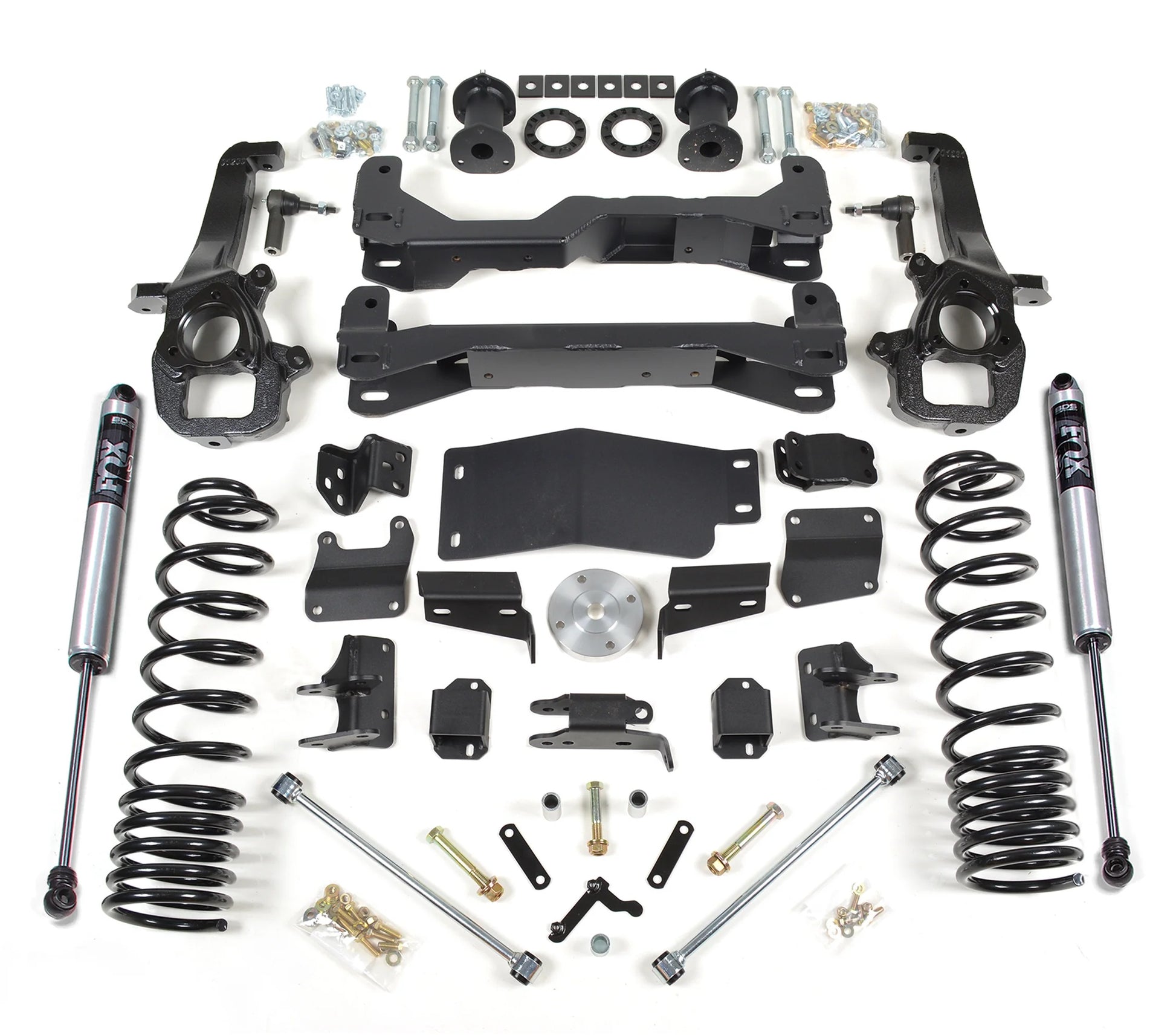

Brand New BDS Suspension 6" Lift Kit with Fox 2.0 Shocks & Coil Springs (Part #BDS1661FS).

BDS steps up the performance and capability of the 2019-2024 RAM 1500 trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for off-road protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with your choice of specially tuned shocks to offer improved damper performance.

Fits:

  • Ram:
    • 2019-2024 1500 4WD Gas

Notes:

  • Fits 4WD models only
  • RAMs with factory 22" wheels require larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
  • Will NOT fit adjustable "air ride" suspension equipped models.
  • If installing the 6" kit on a Rebel or truck equipped with an "off road group package" the truck will sit roughly 1/2" front high with the preload spacer installed. If the preload spacer isn't installed the truck will sit about 3/8" nose low.
  • Stock 18" wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size
  • Will NOT work on diesel models
  • Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
  • Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check the diff cover for cooling lines.
  • If using 18" wheels with maximum recommended backspacing, test fit wheels on vehicle before mounting tires to ensure clearance.
  • Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 18 x 9 and 5 in. Backspace or 37 x 12.5 with 20 x 9 and 5 in. Backspace.

Features:

  • High clearance crossmember design maximizes ground clearance
  • Robust steering knuckles maintain ESC system compliance
  • HD skid plate system improved off-road protection
  • Multipoint differential relocation brackets to secure the front axle and improve CV angles

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Crossmember
  • Front Lift Height: 6"
  • Rear Lift Method: Coil Spring
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here and here.
